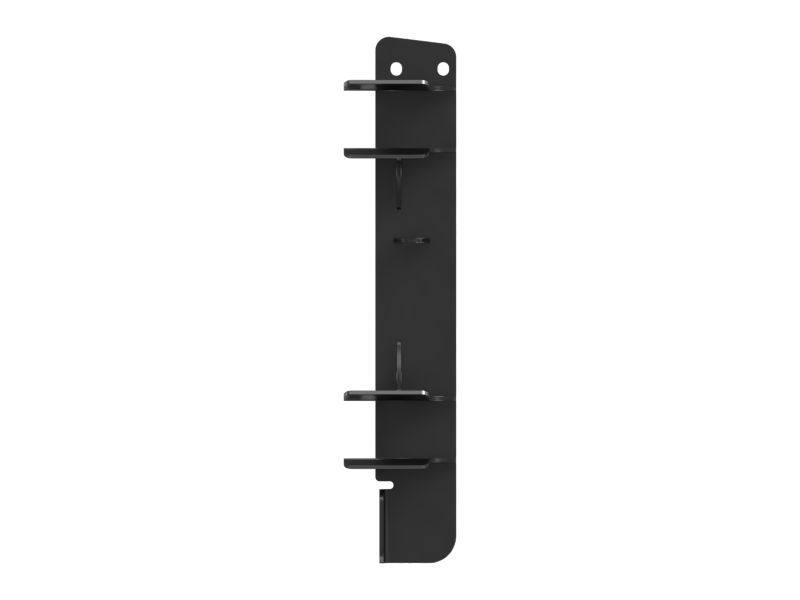

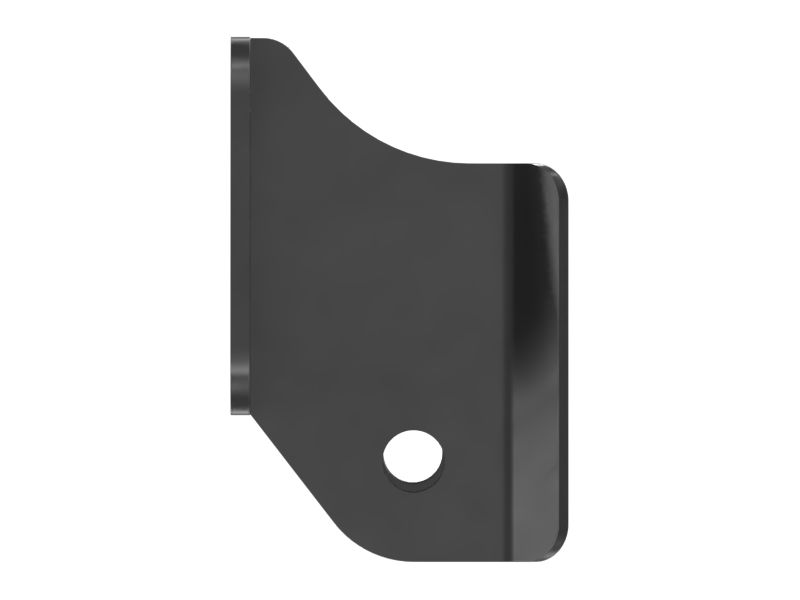

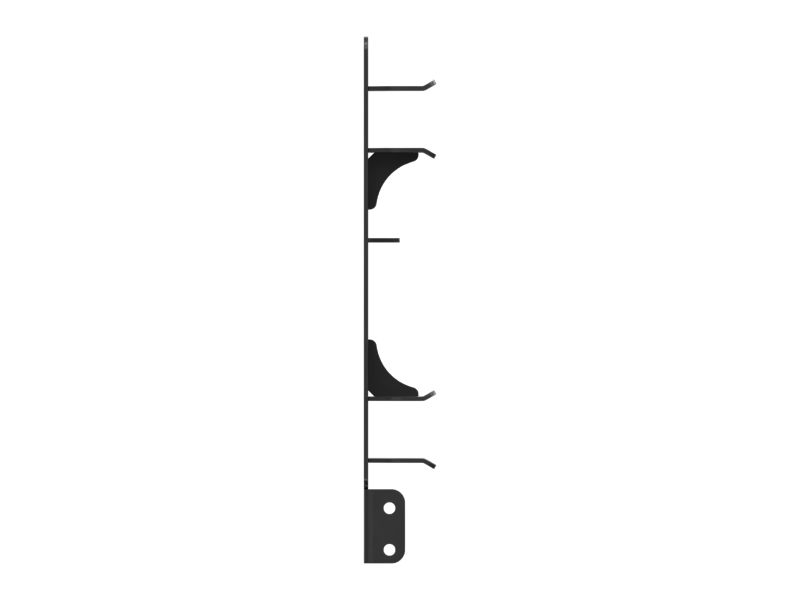

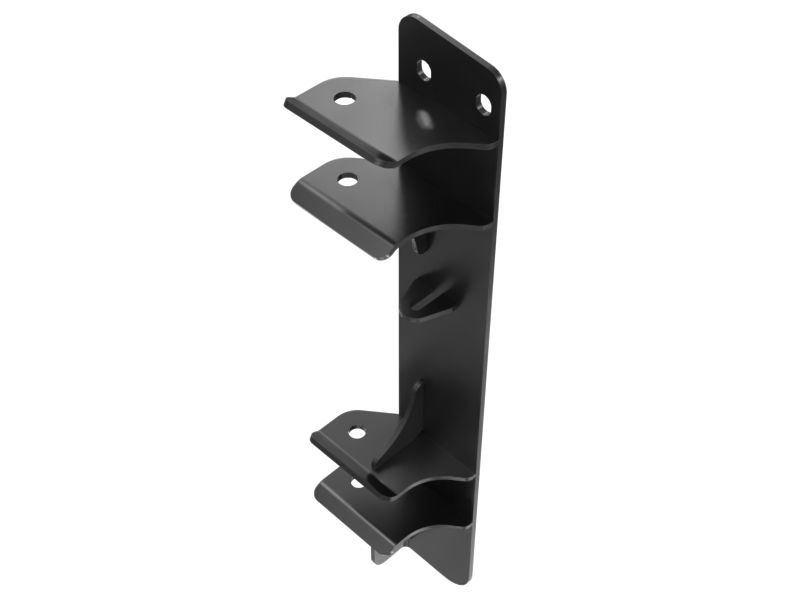

620-2861: Left Hand Rear Door Guard Mount

A Fender Mounting Plate is a sturdy plate used to support and reinforce a fender structure. It supports the mounting of the fender plate assembly with the machine frame, providing a secure point of attachment for the fender. It consists of specific slots that align with the mounting points on the machine frame and the fender assembly. It is a bent plate that distributes the load evenly across the fender and prevents stress concentrations that could lead to failure or detachment.

Attributes:
• Provided with 4 mounting slots to fit the fasteners of sizes M10 and M16
• Enhanced strength and robustness, with high resistance to damage, abrasion, and deterioration over time

Applications:
A Fender Mounting Plate is used to support attaching the fender plates to the machine frame, ensuring the proper spacing and alignment of the fender. It also prevents the excessive movement or vibrations of the fender plates.

• Overall Height (in): 30.87

• Overall Height (mm): 784.1

• Overall Length (in): 6.58

• Overall Length (mm): 167

• Overall Width (in): 4.22

• Overall Width (mm): 107.3

• Weight (kg): 7.25

• Weight (lb): 15.98

• Material: Alloy Steel
