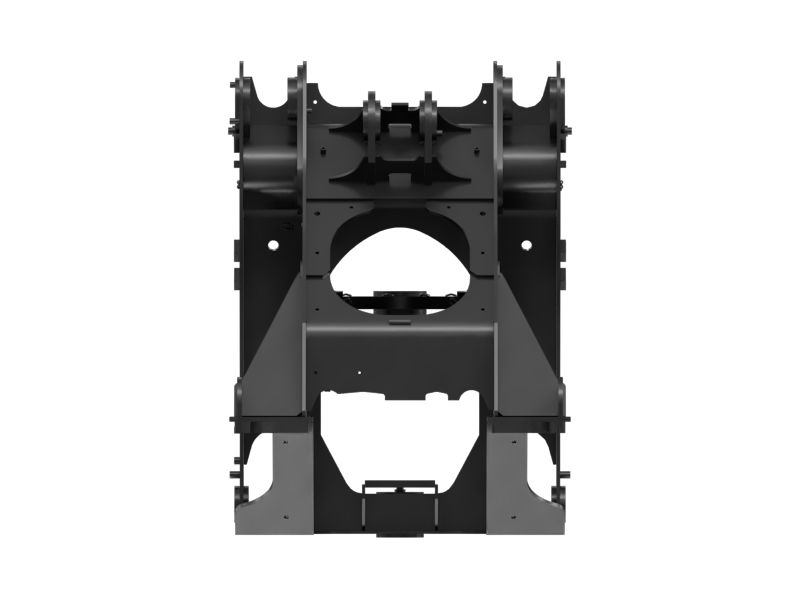

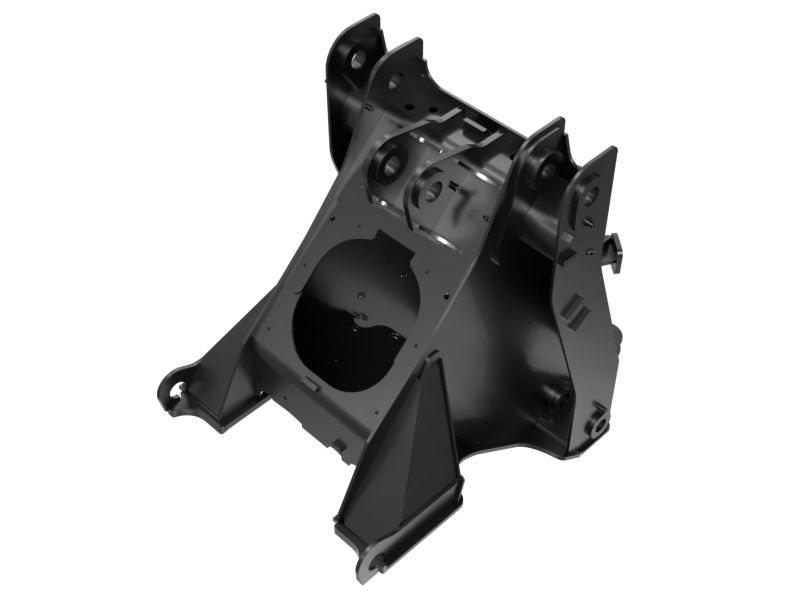

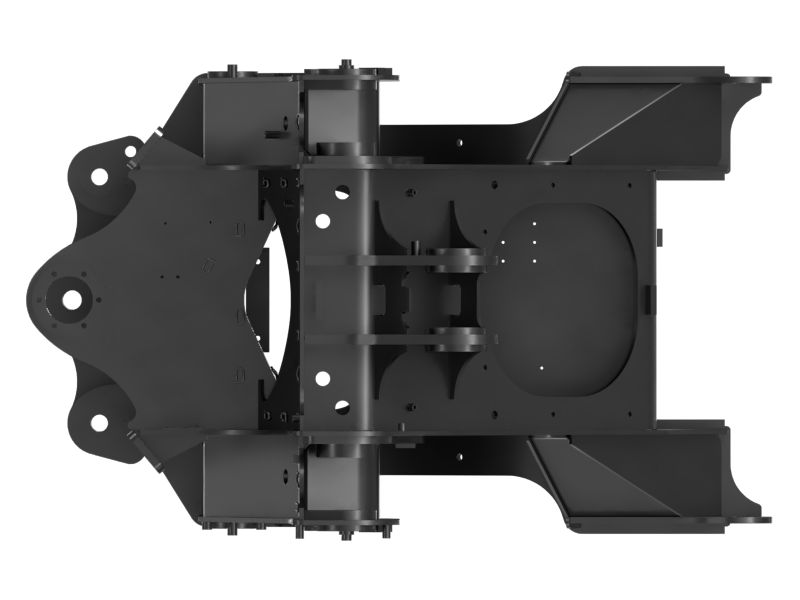

620-1369: Non Engine End Frame

Cat® Wheel Loader Non-Engine End Frame provides rigidity to the machine's structure and provides a s

Заинтересовал товар?

Имя

Почта

Комментарий

Схема

Не найдено

Описание для номера по каталогу 620-1369

The Non-Engine End Frame serves as the foundation for mounting the loader's transmission, axles, and other key parts. It features mounting points for attaching the transmission, axles, and other structural elements of the wheel loader, which are positioned and reinforced to ensure proper alignment, load distribution, and structural integrity.

Attributes:
• Distribute the loads evenly and provide rigidity to the machine's structure
• Provide adequate ground clearance and protection for the internal parts, such as the engine, hydraulic lines, and drive systems
• Manufactured to precise specifications and are built for durability and reliability

Applications:
The Non-Engine End Frame integrates with the loader's chassis, providing a stable platform for the attachment of the loader arms, bucket, and other work tools.

WarningOutline Предупреждение: При использовании этого изделия можно подвергнуться воздействию различных химических веществ, включая свинец и соединения свинца, которые, как установлено в штате Калифорния, вызывают рак и врожденные дефекты или другие нарушения репродуктивной функции. Дополнительную информацию см. на веб-сайте www.P65Warnings.ca.gov.

Технические характеристики номера по каталогу 620-1369

  • Overall Length (mm): 1915

  • Overall Length (in): 75.39

  • Overall Height (mm): 1700.6

  • Overall Height (in): 66.95

  • Overall Width (mm): 1223

  • Overall Width (in): 48.15

  • Material: Steel,Grease ( Lanolin, Silicone) Fluid,Alloy Ste

  • Color: Cat Yellow

  • Weight (kg): 1051

  • Weight (lb): 2317.06

Совместимые модели для номера по каталогу 620-1369

WHEEL LOADER

926

COMPACT WHEEL LOADER

926
