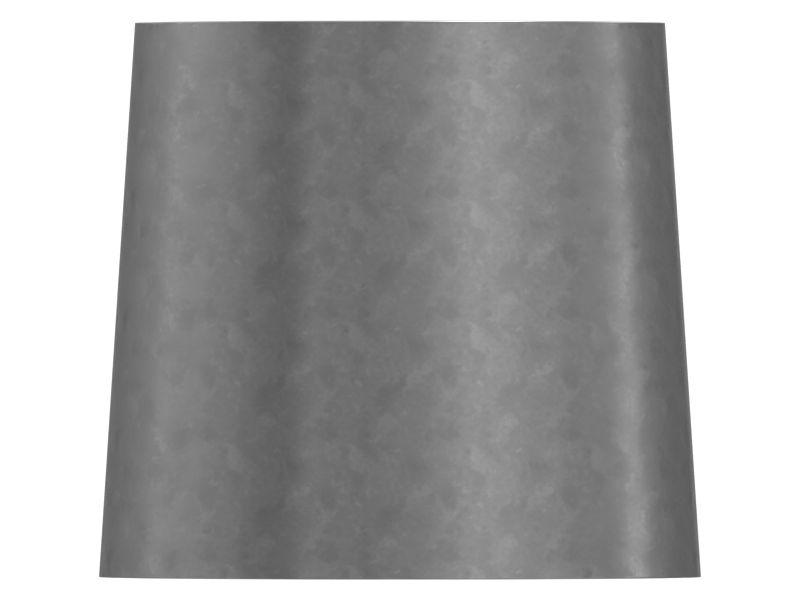

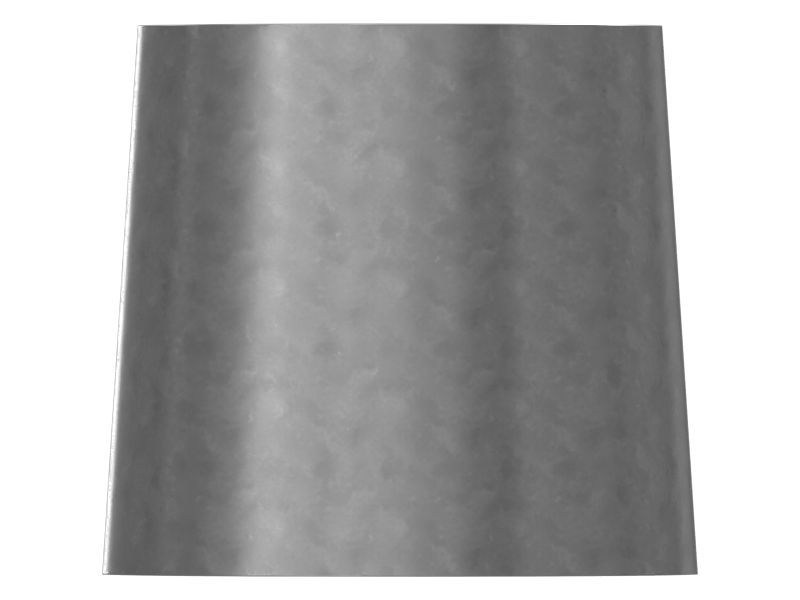

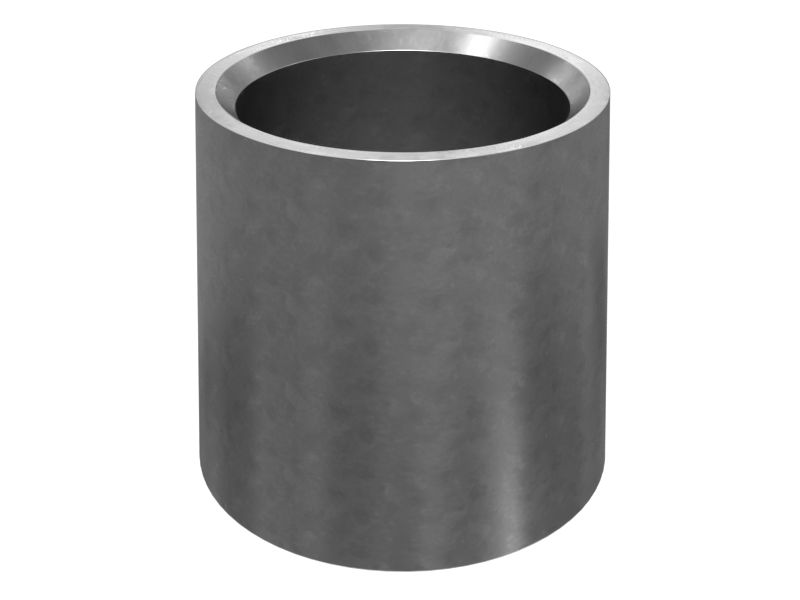

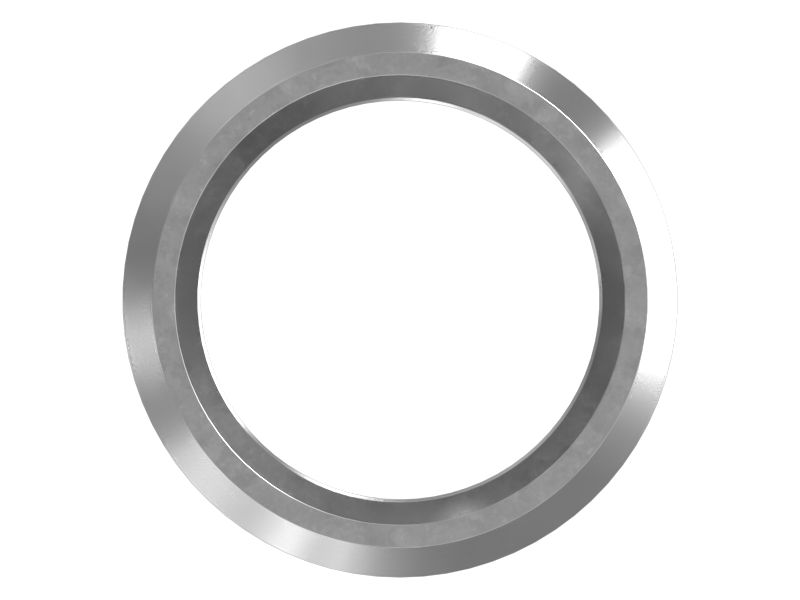

619-3597: Steering Cylinder Seal Guide

Cat® 35.949mm Inner Diameter Steering Cylinder Plastic Seal Guide used for installing the head on th

Заинтересовал товар?

Схема

Не найдено

Описание для номера по каталогу 619-3597

A Steering Cylinder Seal Guide precisely positions and supports the seals within the steering cylinder unit. It ensures that the seals are correctly aligned and secured in place, preventing leaks and maintaining hydraulic pressure within the unit. By guiding the seals into their correct positions and preventing them from twisting or misaligning during operation, the seal guide helps protect the seals from premature wear and damage.

Attributes:
• Provides a stable platform for seals, reducing movement and potential wear of the steering seals
• Ensures proper alignment of seals, enhancing sealing effectiveness and optimizing performance

Applications:
A Steering Cylinder Seal Guide contributes to the overall efficiency and performance of the hydraulic steering unit. By ensuring a tight seal and minimizing fluid loss, the guide helps maintain consistent steering responsiveness and control.

Предупреждение: При использовании этого изделия можно подвергнуться воздействию различных химических веществ, включая свинец и соединения свинца, которые, как установлено в штате Калифорния, вызывают рак и врожденные дефекты или другие нарушения репродуктивной функции. Дополнительную информацию см. на веб-сайте www.P65Warnings.ca.gov.

Технические характеристики номера по каталогу 619-3597

Outer Diameter (mm): 49.99
Outer Diameter (in): 1.968
Inner Diameter (mm): 35.949
Inner Diameter (in): 1.415
Length (mm): 46
Length (in): 1.811
Material: Plastic,Acetal Plastic,Low Alloy Steel,Nylon, 6,
Weight (kg): 0.037
Weight (lb): 0.081
