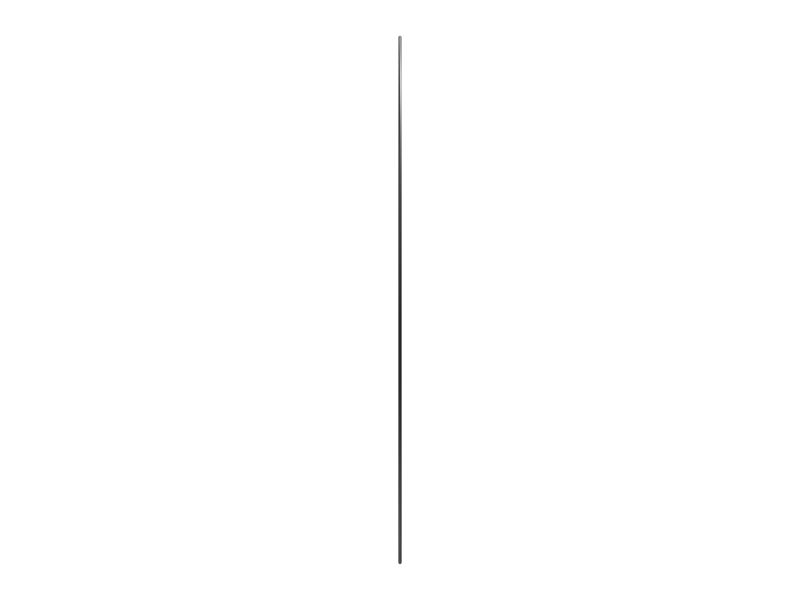

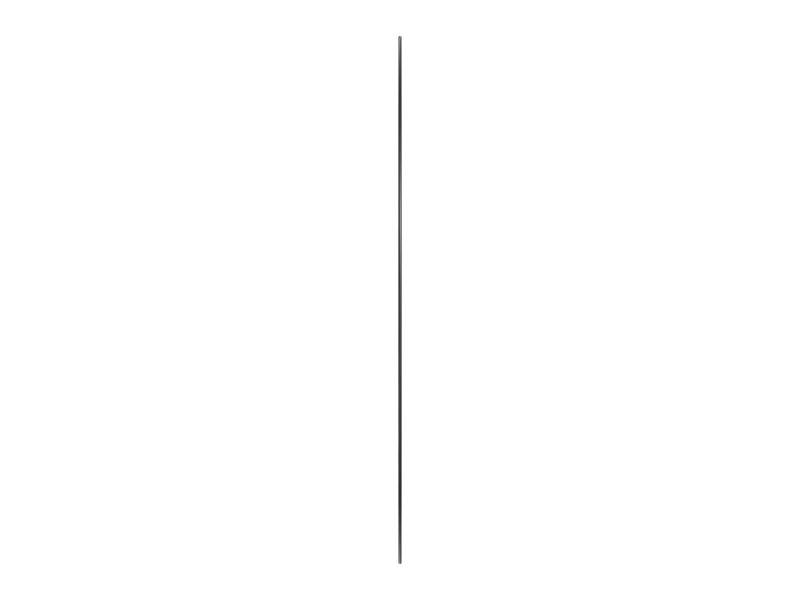

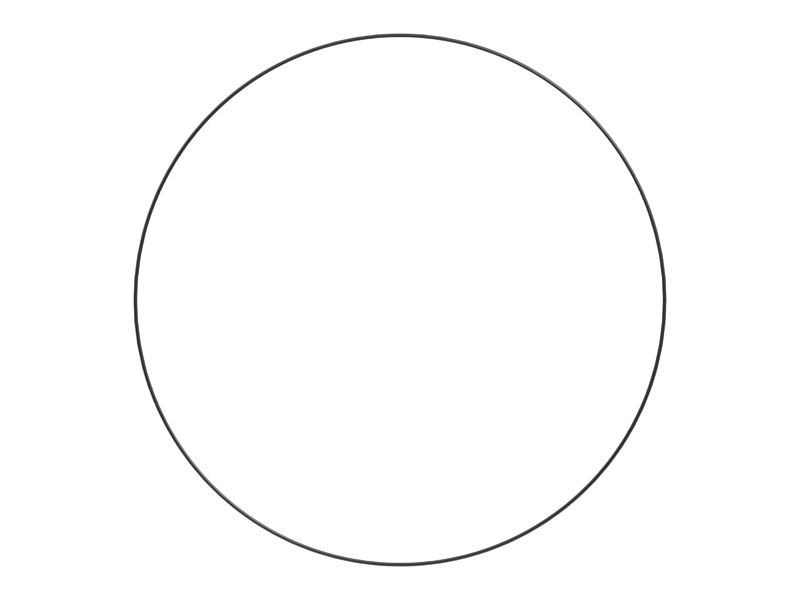

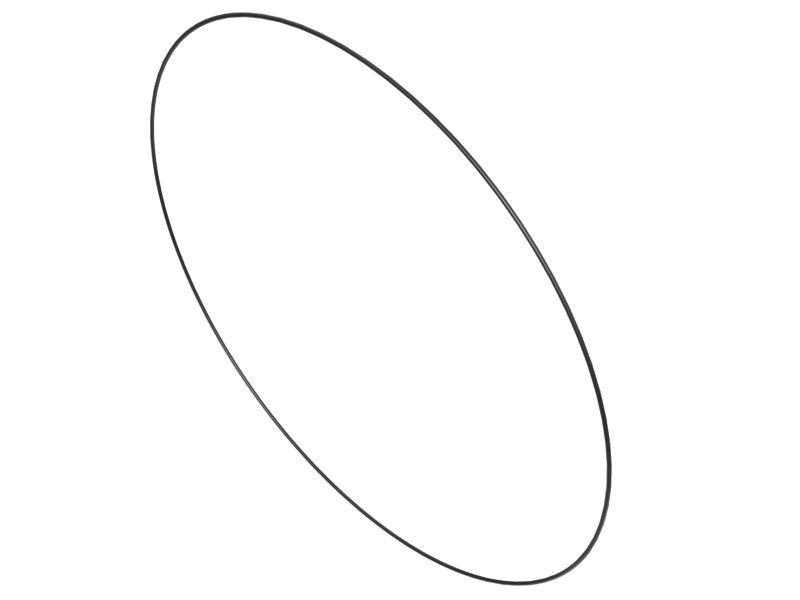

618-9046: D-Ring Seal

Description:
D-Rings, like 618-9046, are used in dynamic applications. These seals feature either a curved inside or a curved outside profile to optimize performance and sealing capacity.

Cat D-Rings are made from materials that are matched to the fluids, temperatures, and pressures found in Cat engines and machines. The materials resist wear and extrusion and provide superior resistance to seal compression set. In addition, certain Cat D-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Dimensions of our D-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals.

Attributes:
• Seal Type: D-Ring
• Cross Section Direction: Curved Inside Diameter
• Inside Diameter: 424.8 mm (16.72 in)

Application:
Consult your owner’s manual or contact your local Cat Dealer for more information.

• O-Ring Type: D-Ring

• Material: FKM,Polytetrafluoroethylene (PTFE) Plastic,Fluoro

• Material Description: FKM rubber is capable of service temperatures of

• Hardness (Shore A): 90

• Cross Section Direction: Curved Inside Diameter

• Inside Diameter (mm): 424.8

• Outside Diameter (mm): 453.46

• Cross Section Width (mm): 3.53

• Cross Section Height (mm): 5.33

• Coating: Not Specified

• Color: Black

• Color Notes: Actual D-Ring color may differ from image.

• Notes: Dimensions and material descriptions provided for

• Inside Diameter (in): 16.72

• Outside Diameter (in): 17.85

• Cross Section Width (in): 0.14

• Cross Section Height (in): 0.21
