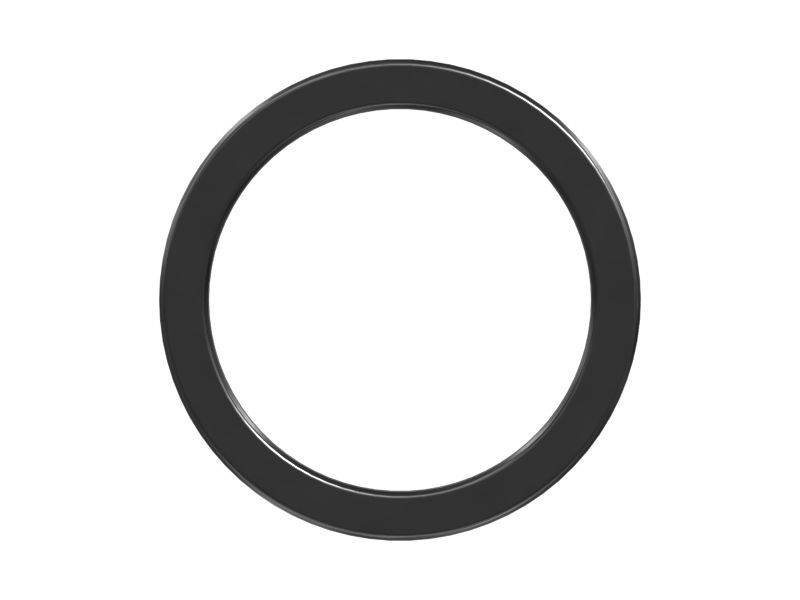

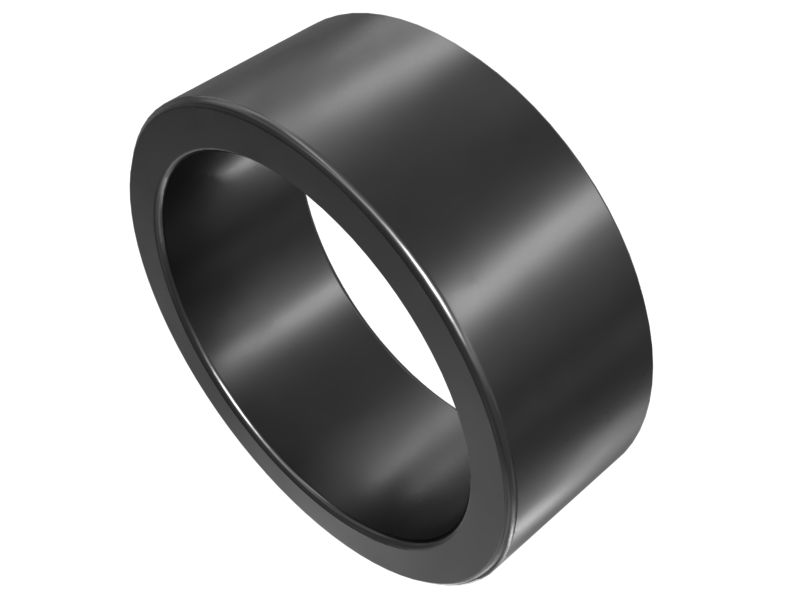

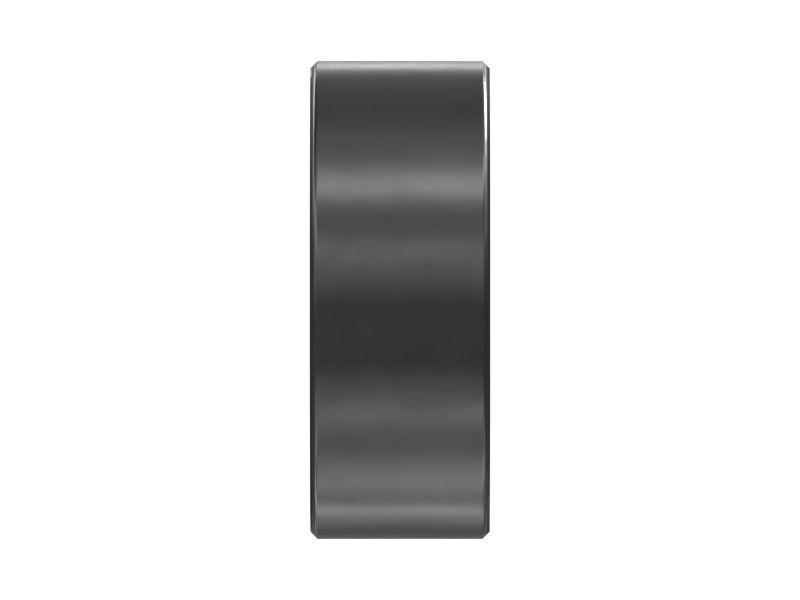

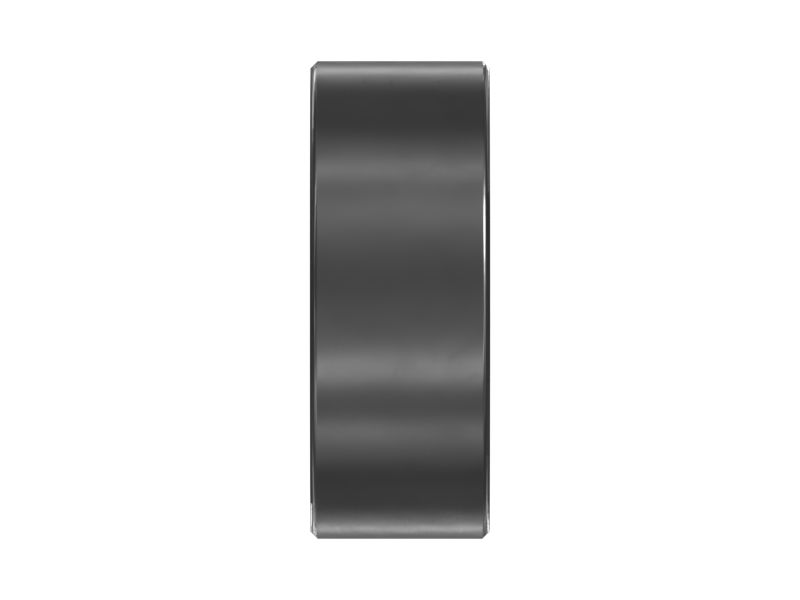

618-5597: Pump Lines Sleeve

Cat® Steel Sleeve is a tube of metal that is put into a bore, for example to reduce the diameter of the bore or to line it with a different material. Sometimes there is a metal sleeve in the bore to give it more strength. The materials resist wear and extrusion, and provide superior resistance to compression. Dimensions of our Sleeves are consistently held to tight tolerances to ensure they fit properly within the diameter. Cat® Sleeves are specifically designed to operate as a system to deliver the performance you expect. Caterpillar design engineers match the right combination of dimensions, materials, surface finish, and manufacturing processes, to each part to enable them to work and wear effectively with all the other neighboring and dependent parts. Cat® Sleeves are built with high grade steel and hardened for exceptional strength and wear life. They are tested and proven in the world's most severe applications. They give you maximum strength and resistance and result in a lower overall cost, outstanding strength and fatigue life, superior resistance to abrasive wear, and exceptional protection even in high-load conditions.

Application:
Cat® Sleeves are used in the Pump Lines connectors of Cat® Machine. Cat® Sleeves are the top choice for maximum performance in demanding applications. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Sleeve Length (mm): 12.5

• Sleeve Length (in): 0.49

• Outer Diameter (mm): 33.4

• Outer Diameter (in): 1.31

• Inner Diameter (mm): 26.65

• Inner Diameter (in): 1.05

• Material: Steel,Alloy Zinc,Carbon Steel

• Weight (kg): 0.03

• Weight (lb): 0.07
