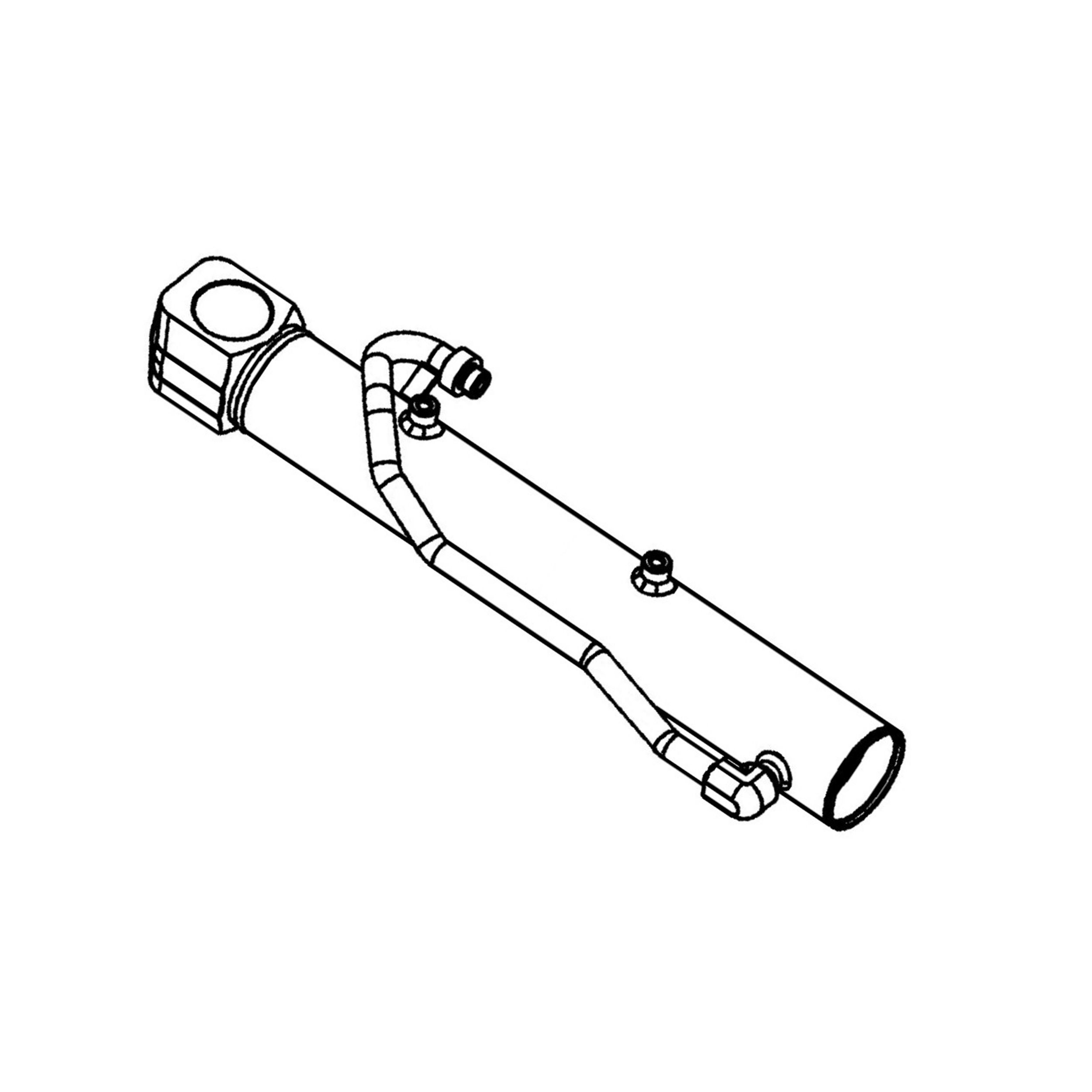

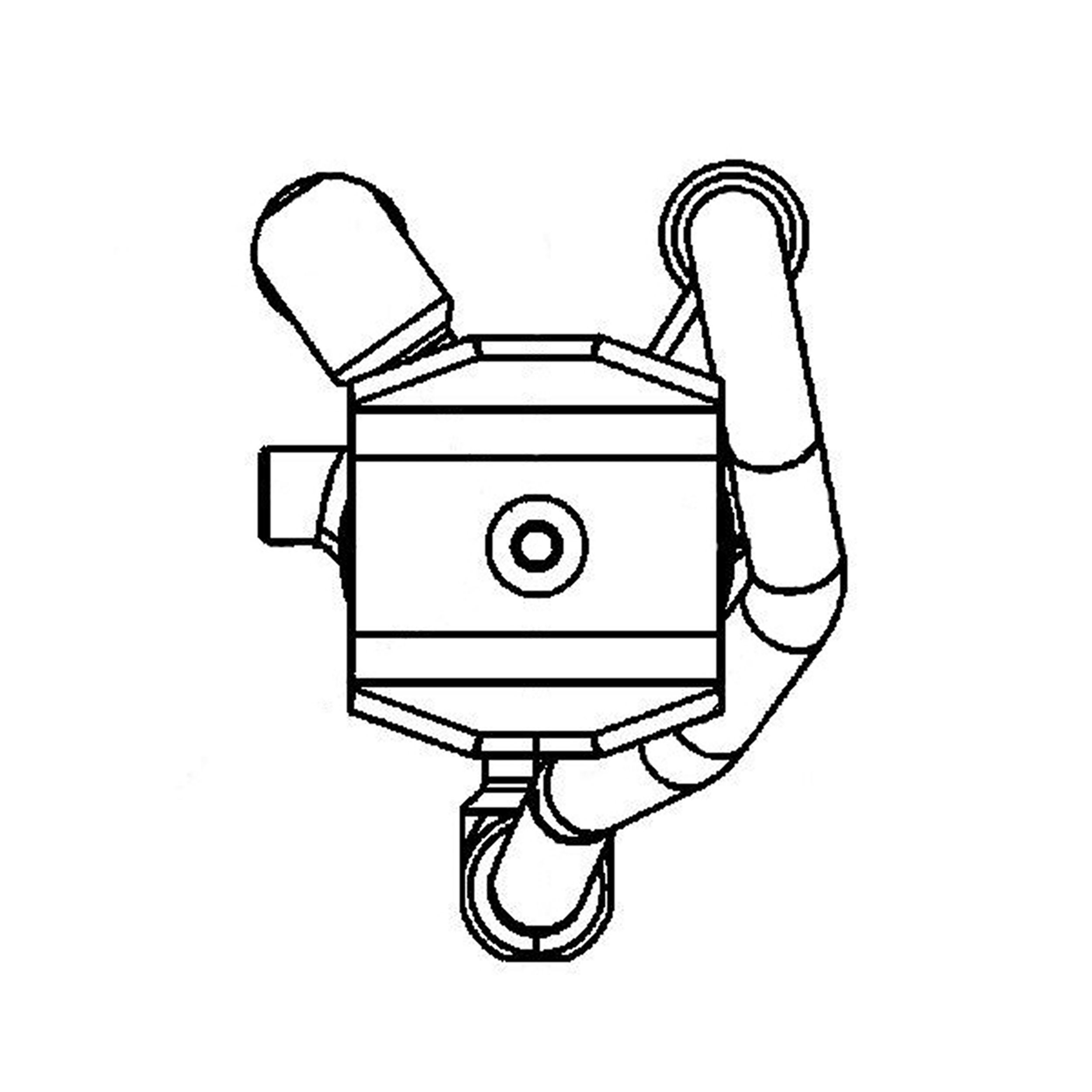

617-0885: 882mm Stroke Tilt Cylinder

A Tilt Cylinder is used to provide controlled tilting or angling movements of heavy equipment. It consists of a cylindrical body, piston, piston rod, seals, Cylinder Head, and cap. When pressurized Hydraulic fluid is supplied to one side of the Cylinder, it exerts a force on the piston, causing it to move in a linear direction. This force is transmitted through the piston rod, which is attached to the object being tilted. As the piston rod extends or retracts, it imparts a rotational movement to the object, enabling it to Tilt.

Attributes:
• Withstands heavy loads, high pressures, and harsh working conditions
• Minimizes jerky movements or vibrations during the tilting process

Applications:
A Tilt Cylinder acts as a linear actuator, converting Hydraulic energy into linear mechanical force and providing a controlled movement of tilting.

• Material: Carbon Steel
