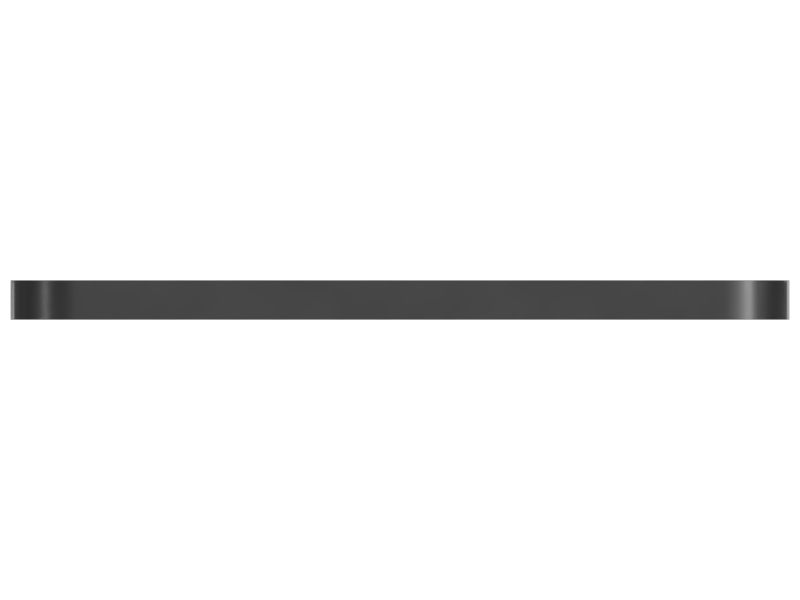

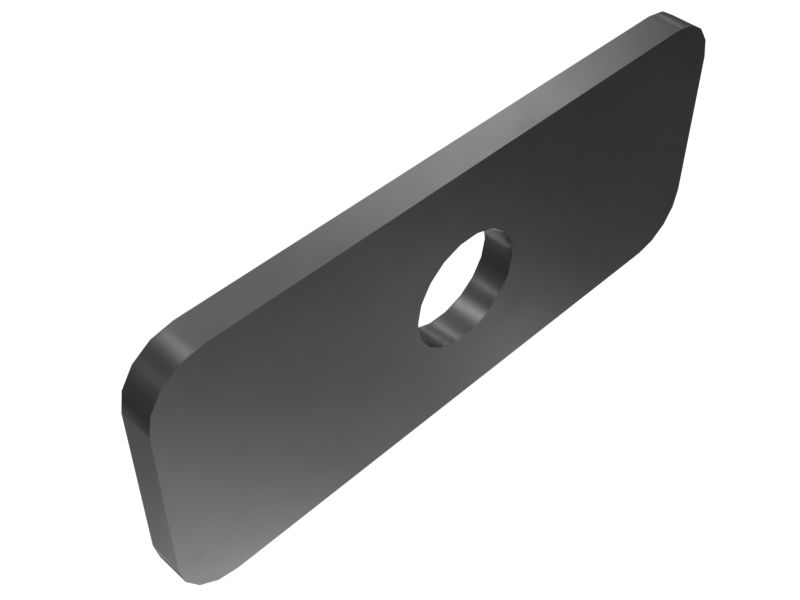

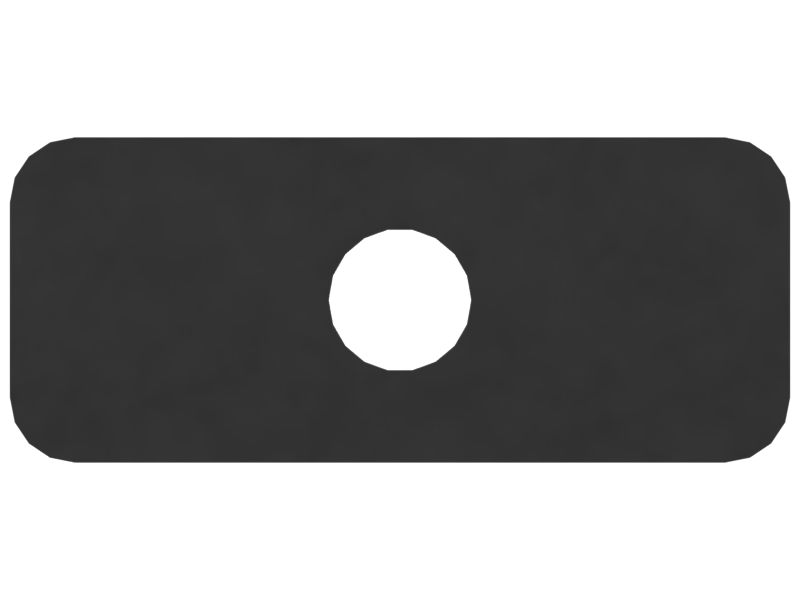

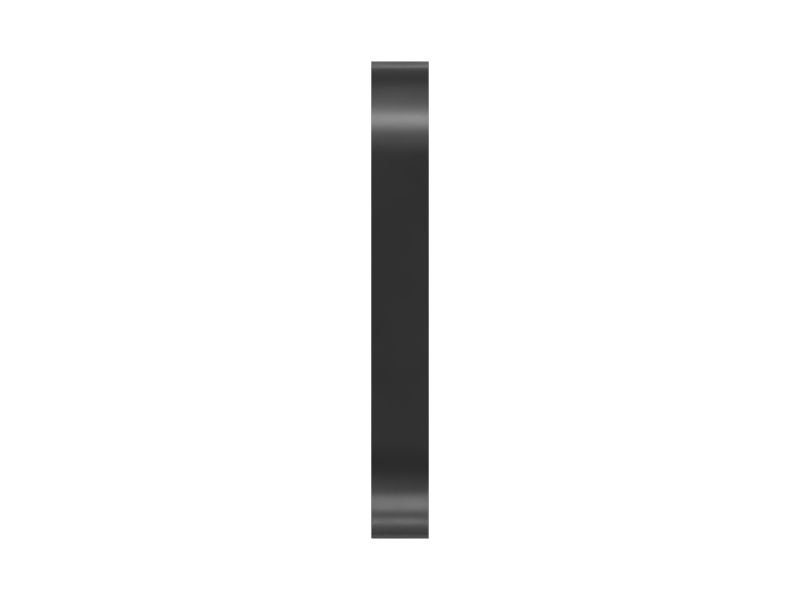

616-7294: Circuit Breaker Bus Bar Mounting Plate

The Circuit Breaker Bus Bar Mounting Plate is used to provide a secure attachment for the circuit breaker bus bar through the bracket in the equipment. This mounting plate maintains the stability and reliability of the electrical connections within the equipment. Securely fastening the bus bar bracket, ensures that the circuit breakers remain in place, preventing any unwanted movement that could disrupt the electrical connection.

Attributes:
• Ensures accurate alignment and positioning of bus bars.
• Withstands electrical currents and vibrations.
• Supports safe and reliable electrical connections.

Applications:
The Circuit Breaker Bus Bar Mounting Plate is used to ensure that the circuit breaker bus bar bracket remains securely fastened, maintaining the stability and reliability of the electrical connections.

• Weight (kg): 0.03

• Weight (lb): 0.07

• Thickness (mm): 3

• Thickness (in): 0.12

• Width (mm): 25

• Width (in): 0.984

• Length (mm): 60

• Length (in): 2.362

• Hole Size (mm): 11

• Hole Size (in): 0.43

• Material: Steel,Carbon Steel
