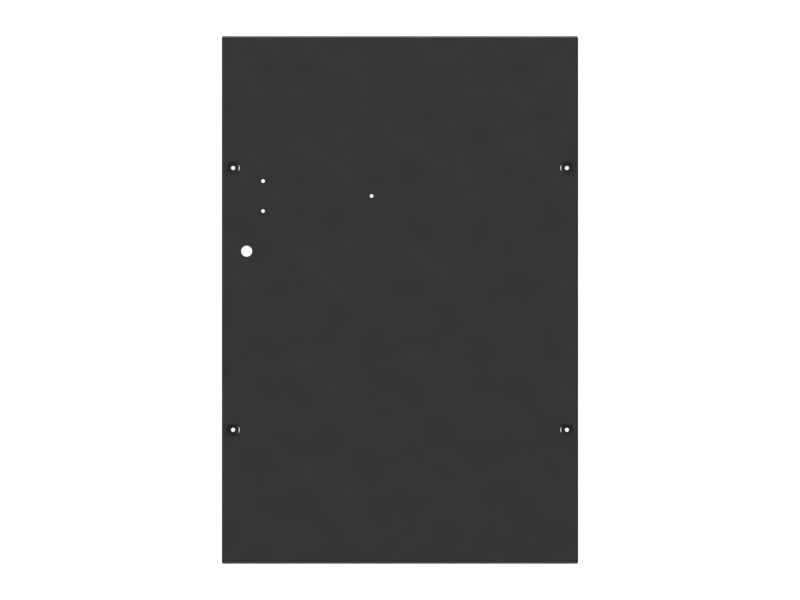

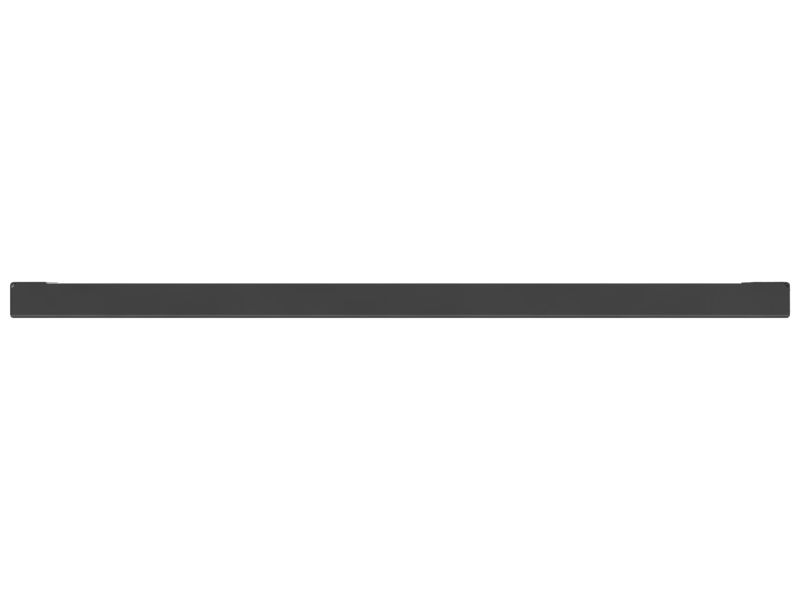

616-4854: Generator Enclosure Panel

The Bus Bar Ballpoint connects cabinet wiring systems, which are positioned directly on the bus bar, facilitating the secure and efficient distribution of electrical current from the bus bar to different wiring components within the cabinet. This part ensures that electrical connections remain stable, reducing the risk of voltage drops and electrical faults. The design of the bus bar ballpoint allows for easy connection while maintaining reliable electrical continuity. It ensures that the current flows smoothly through the system by securely fastening wiring to the bus bar, the bus bar ballpoint enhances the overall performance of the electrical system.

Attributes:
• Provides a secure connection point between the bus bar and the cabinet wiring systems.
• Accurate placement on the bus bar ensures optimal conductivity.
• Ensures strong electrical contact with minimal resistance.
• Withstands high electrical loads without compromising performance.

Applications:
The Bus Bar Ballpoint is positioned on the bus bar within the cabinet wiring system to connect the bus bar to the insulator, ensuring proper electrical distribution.

• Height (in): 38.03

• Height (mm): 966

• Length (in): 25.67

• Length (mm): 652

• Material: Steel,Carbon Steel,Alloy Steel

• Thickness (in): 0.05

• Thickness (mm): 1.2

• Weight (kg): 7.23

• Weight (lb): 15.95

• Width (in): 1.18

• Width (mm): 30
