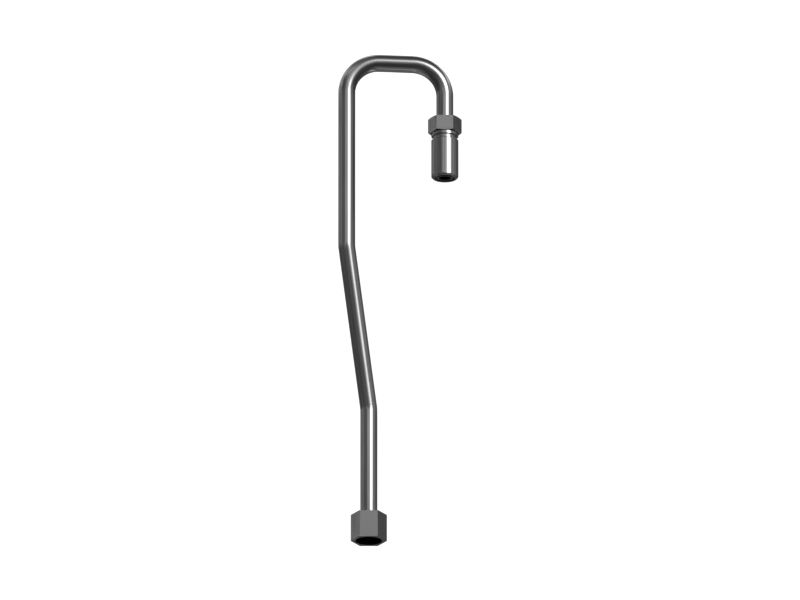

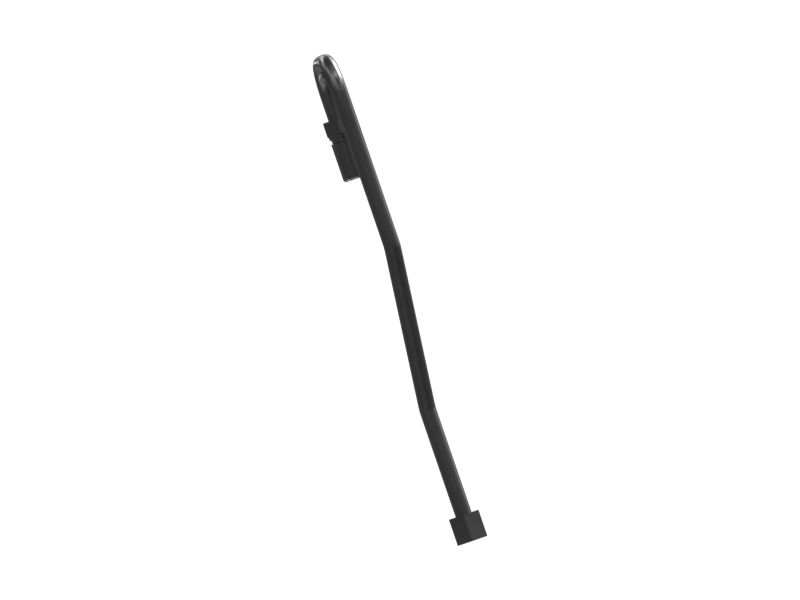

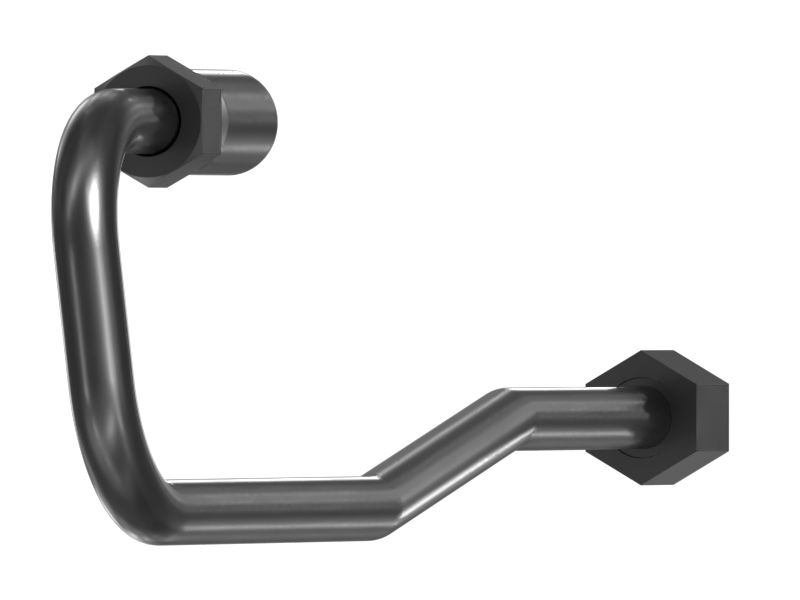

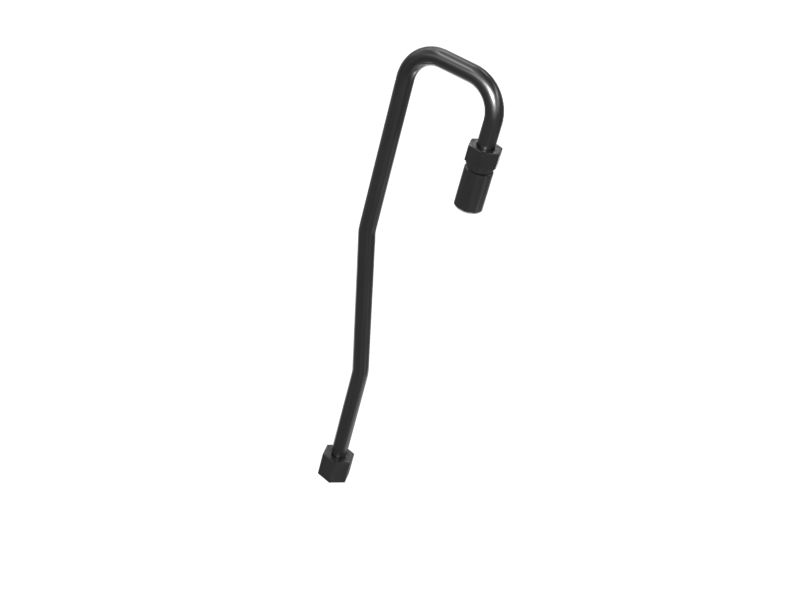

616-2267: Tilt Cylinder Hydraulic Tube

Cat® Tubes are rigid pipes that convey fluid. Cat® Tubes are held to the highest standards of quality and reliability. These rigid tubes (also commonly referred to as pipes) are designed to convey liquids or gases and are precisely engineered for each unique application. Each Cat® Tube utilizes superior materials and processes, fabricated specifically to withstand the application’s pressure and flow requirements which will ensure a long life and proper machine functionality. Engineered with a specific application in mind, every Cat® Tube is designed and manufactured to exact tolerances to ensure proper alignment with existing systems on your Cat® Machine.

Minimum Burst Pressure : 112000 kpa (16244 psi)
Tube Length : 482.5 mm (19 in)

Application:
Cat® Steel Tubes are used in applications where line flexibility is not required. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Overall Length (mm): 392

• Overall Length (in): 15.43

• Overall Height (mm): 95.5

• Overall Height (in): 3.76

• Overall Width (mm): 37.4

• Overall Width (in): 1.47

• Side Wall Thickness (mm): 2.11

• Side Wall Thickness (in): 0.08

• Tube Diameter (mm): 12.7

• Tube Diameter (in): 0.5

• Working Pressure (kPa): 28000

• Working Pressure (psi): 4061

• Color: Medium Gloss Black

• Material: Steel,Carbon Steel,Alloy Mixed

• Weight (kg): 0.41

• Weight (lb): 0.9
