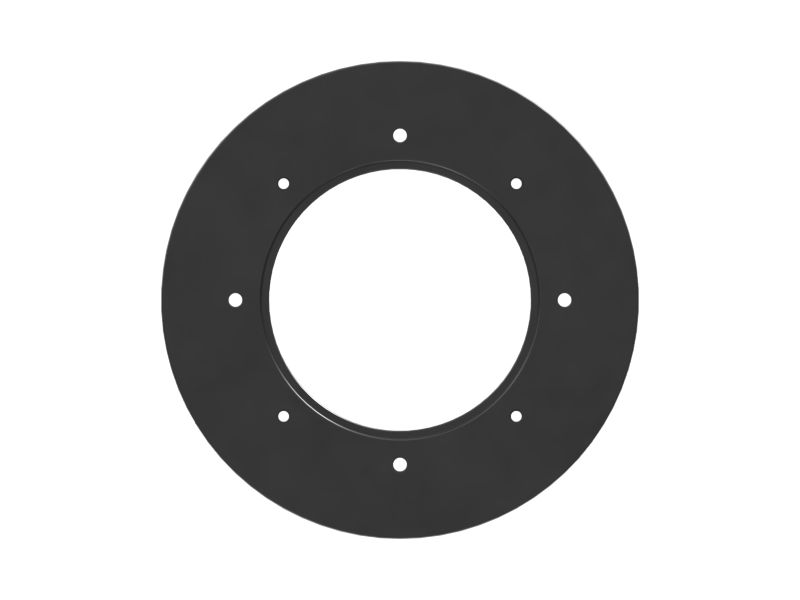

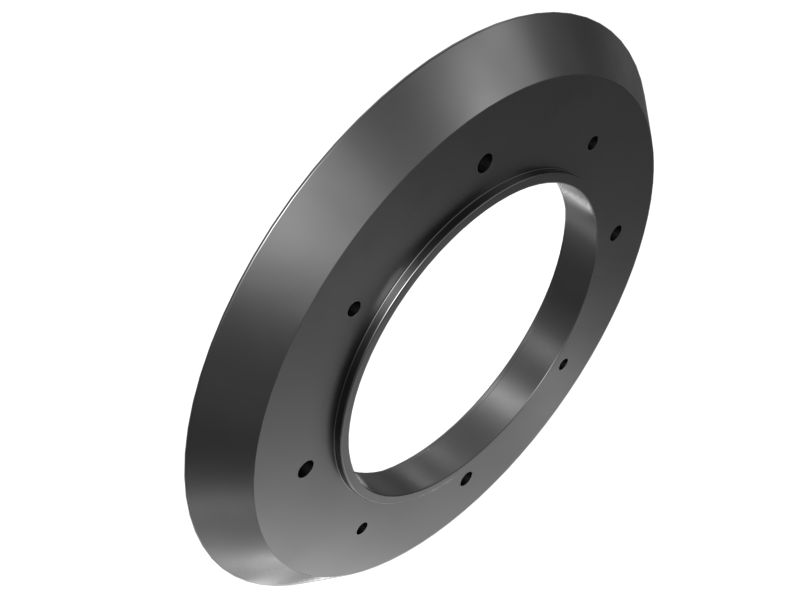

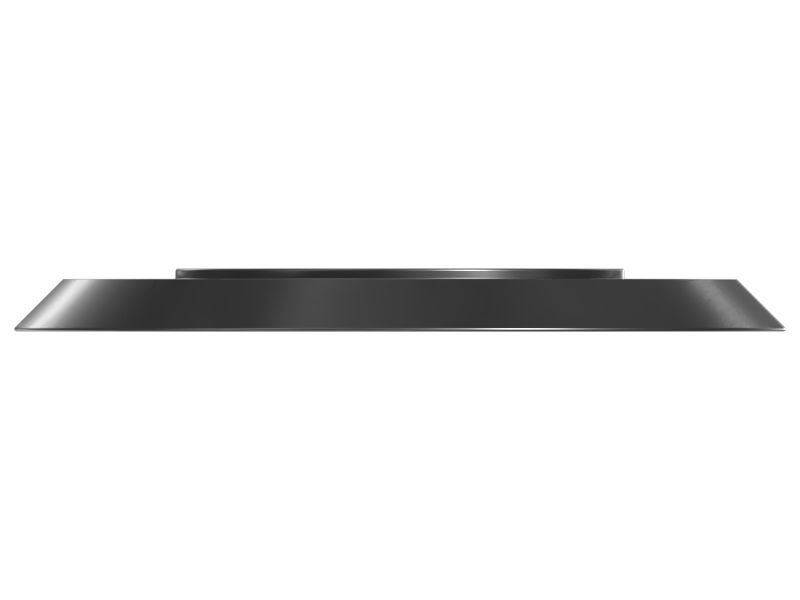

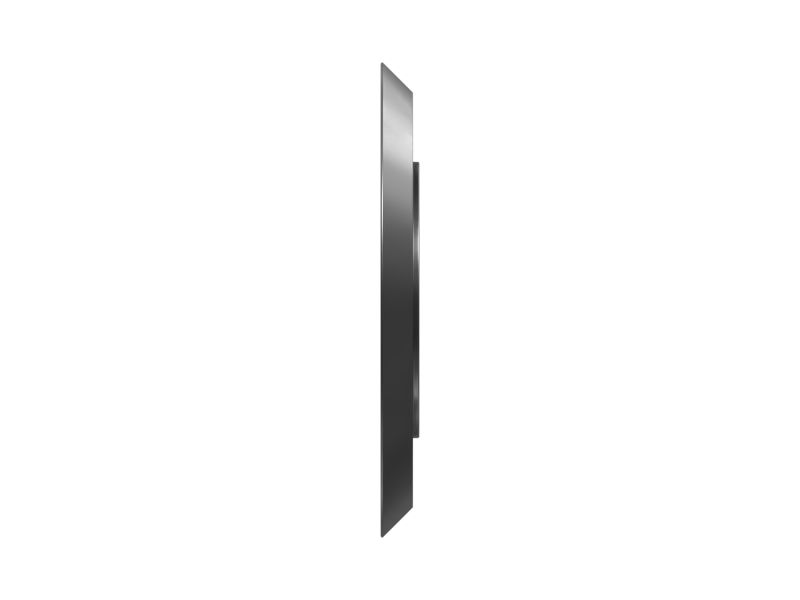

615-9845: Side Cutter Compaction Wheel

The Side Cutter Compaction Wheel enhances the efficiency and accuracy of asphalt paving operations. This wheel trims the edges of asphalt layers while simultaneously compacting them, ensuring a smooth and seamless finish. By providing accurate edge trimming and compaction, the compaction wheel helps to improve the overall quality and longevity of asphalt surfaces.

Attributes:
• Supports different compaction depths and widths.
• Improves the stability and load-bearing capacity of the ground.
• Provides consistent compaction across surfaces.
• Resistant to wear and abrasion from tough working conditions.

Applications:
The Side Cutter Compaction Wheel is mounted on the sides of the cutter assembly, allowing it to trim and compact the edges of asphalt layers as the compactor moves along the paving surface.

• Weight (kg): 12.19

• Weight (lb): 26.874

• Outer Diameter (mm): 374.2

• Outer Diameter (in): 14.732

• Inner Diameter (mm): 204

• Inner Diameter (in): 8.031

• Width (mm): 30

• Width (in): 1.181

• Hole Size (mm): 11

• Hole Size (in): 0.43

• Internal Thread: M10x1.5-6H

• Material: Steel,Structural Steel
