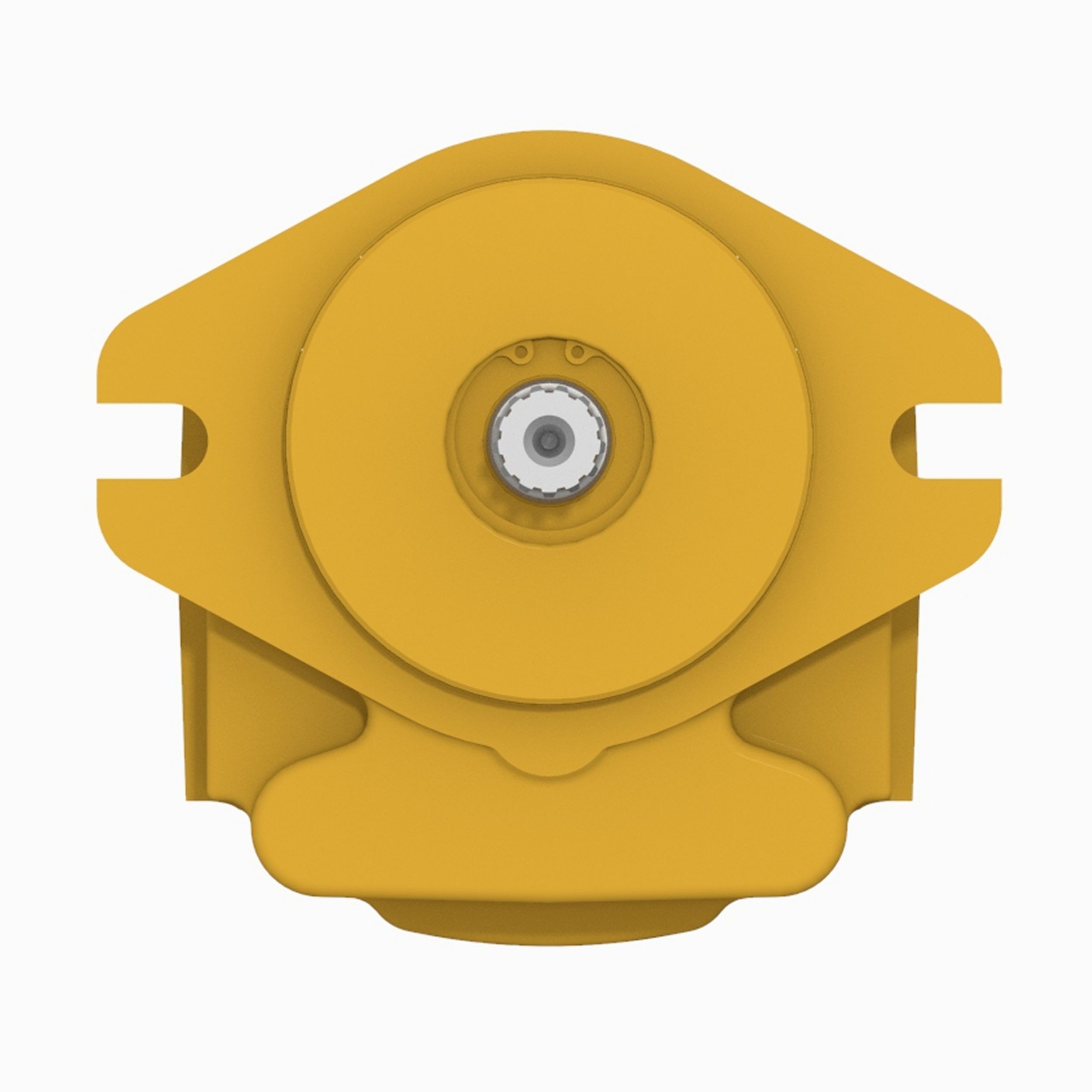

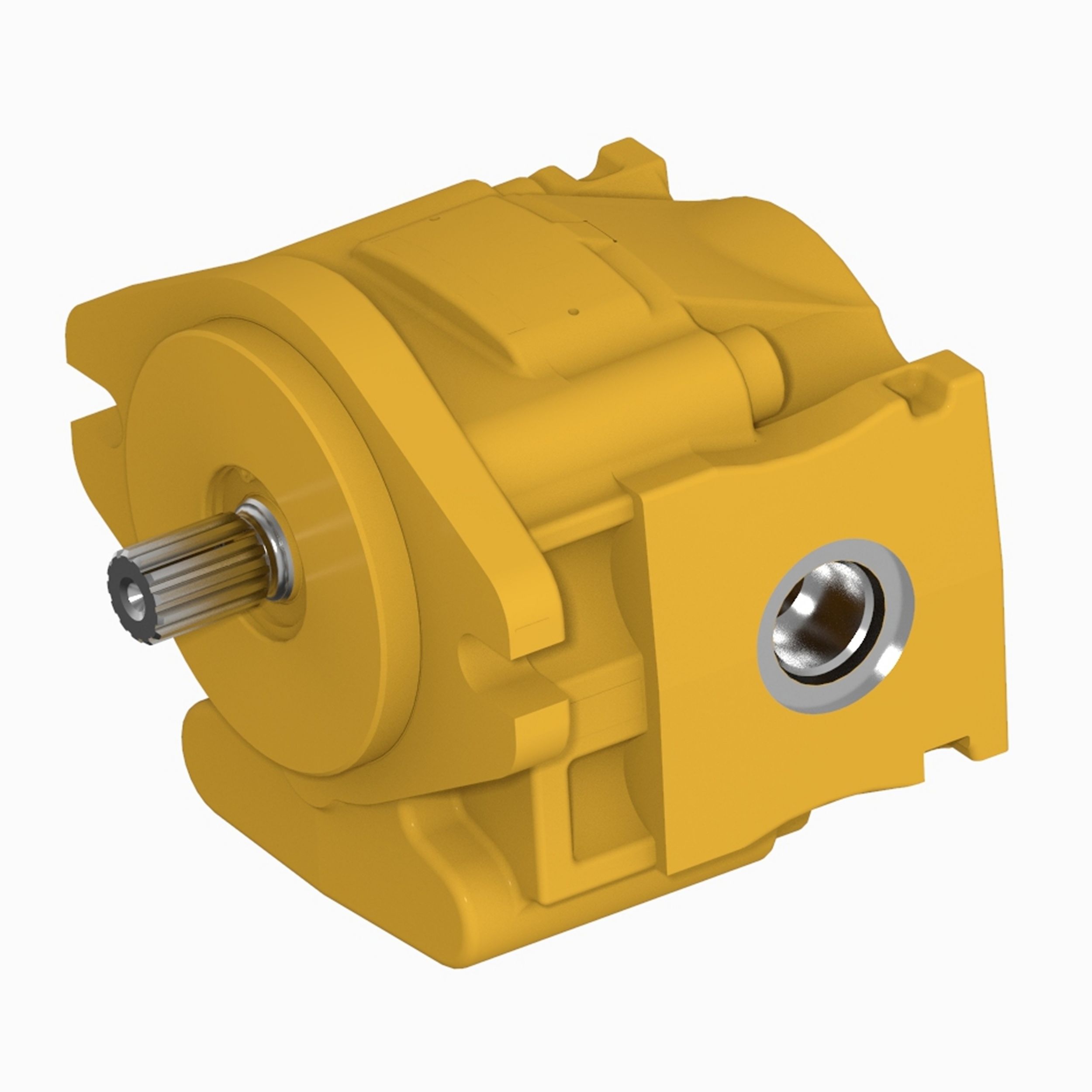

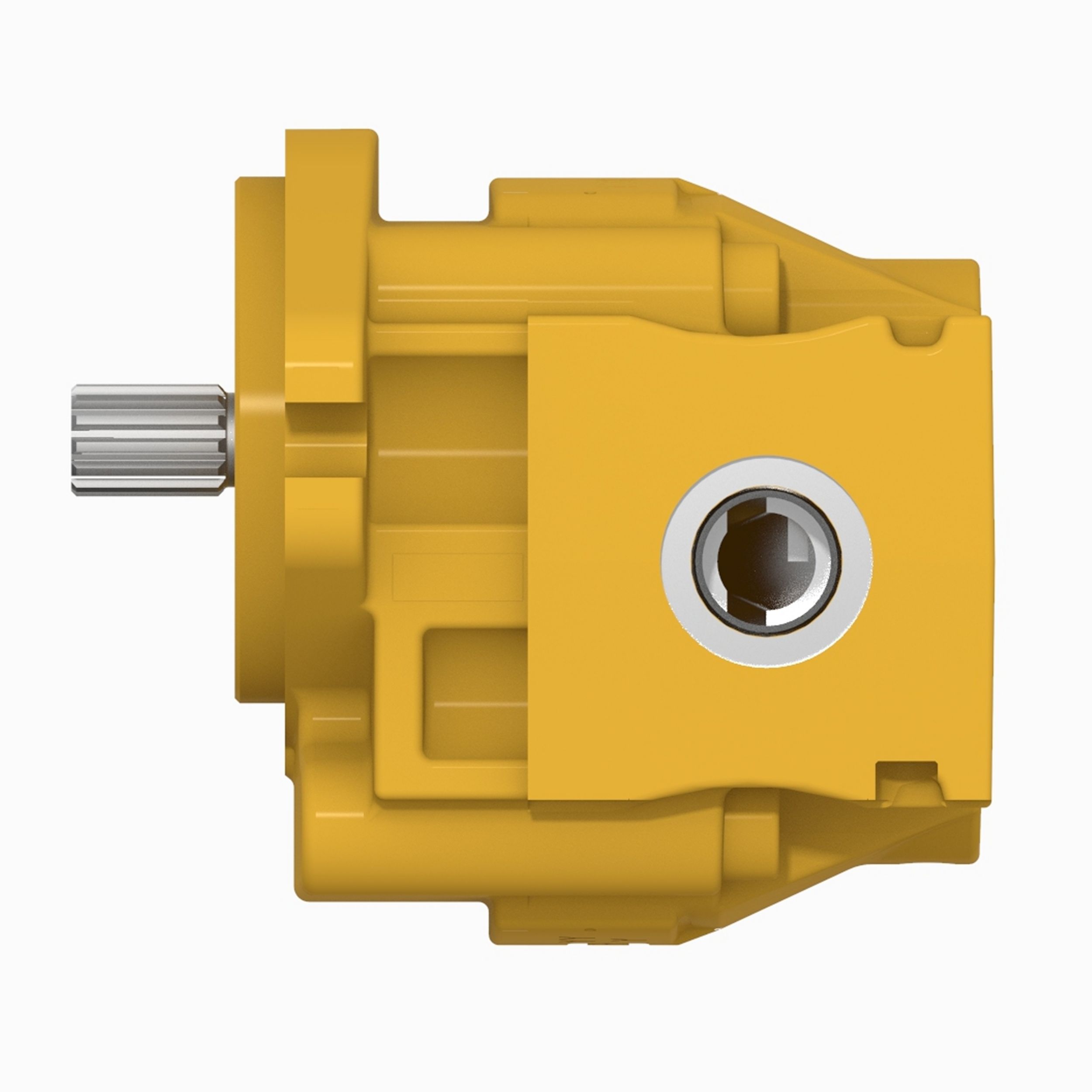

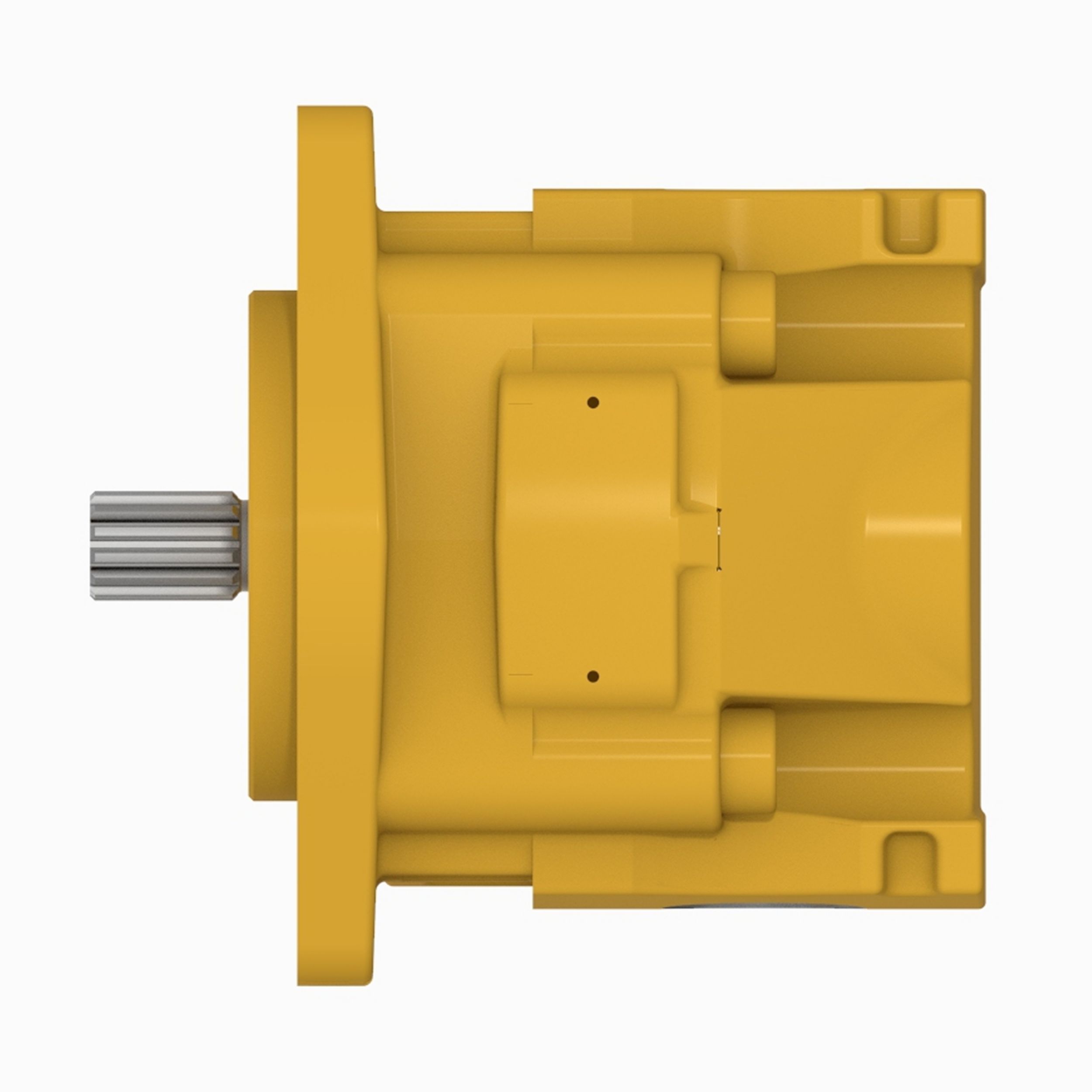

615-8887: Vibratory Motor

Description:
Cat® Motor Group used to provide hydraulic pressure for the Compactor group of Cat machines. Hydraulic motors are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.

Rotation : Counter Clockwise
Displacement/Rev : 34.55 cc
Pressure Range : 21000 - 25000 kPa (3045.8 - 3625.9 psi)
Inlet Port Thread Size in - TPI in : 1 1/16 - 12 UN - 2B
Outlet Port Thread Size in - TPI in : 1 1/16 - 12 UN - 2B

External Involute Spline Details
No. of Teeth : 13
Spline Pitch : 16/32
Pressure Angle : 30°

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 177.4

• Overall Length (in): 6.99

• Overall Width (mm): 174.5

• Overall Width (in): 6.88

• Overall Height (mm): 157.5

• Overall Height (in): 6.21

• Operating Temperature: -25°C to +80°C

• Speed Range (rpm): 350 - 3000

• Material: Steel,Carbon Steel

• Weight (kg): 15.06

• Weight (lb): 33.21
