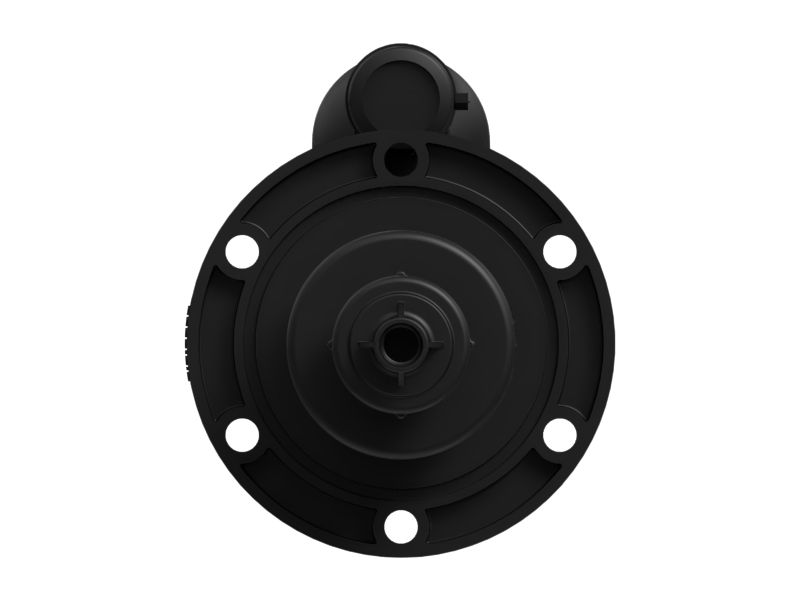

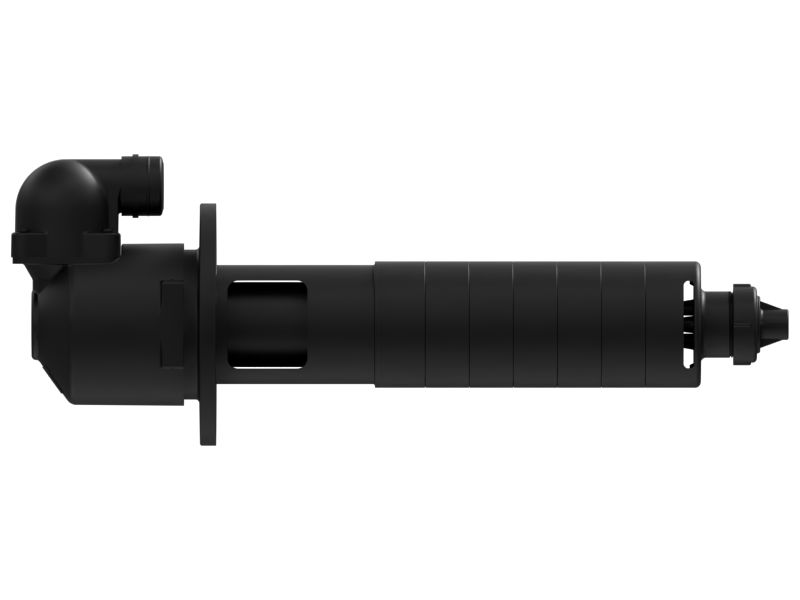

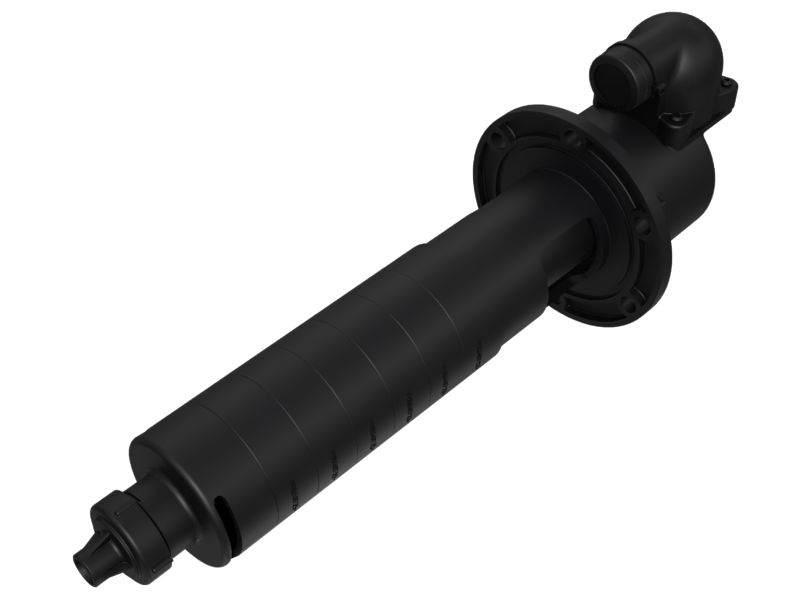

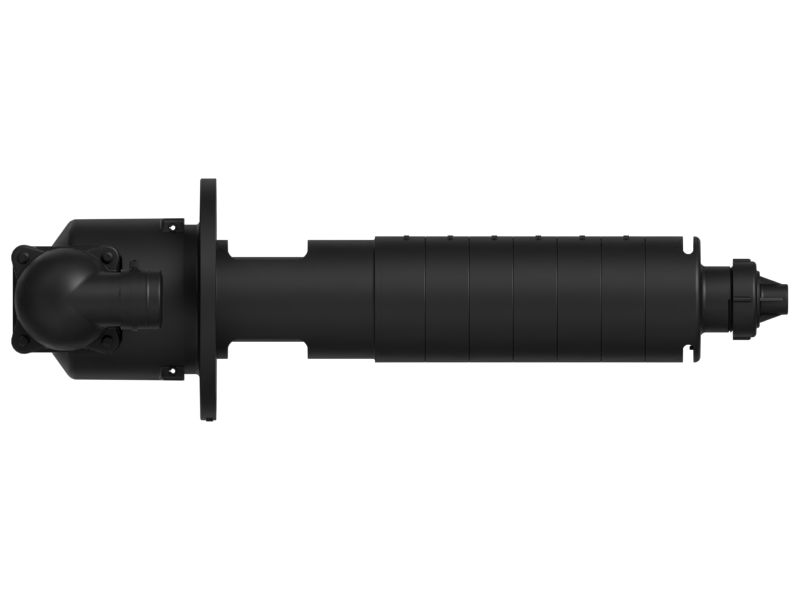

615-6382: 150 Gallon Per Minute Fuel Tank Fast Fill Vent

The Fuel Tank Fast Fill Vent facilitates the quick release of air displaced by fuel entering the tank during refueling. Its purpose is to enable the rapid expulsion of air from the tank as it fills with fuel, thereby minimizing refueling time and enhancing efficiency. By allowing air to escape swiftly, this vent prevents pressure build-up inside the tank, reducing the risk of overflow during refilling operations.

Attributes:
• Rollover poppet actuates closed at 20 degrees of rollover angle.
• Provides one-way venting from the fuel tank to the atmosphere.
• Pressure drop is Less than 2 pounds per square inch with 200 gallons per minute of air flowing out of the tank.
• Leakage is 30 cubic centimeters per minute when inverted 90 degrees to 270 degrees with 3 pounds per square inch of fuel head pressure.
• Cap/Cover Swivel is swivels at 360 degrees for easy access and sealing.
• Withstand exposure to fuel pressure.
• Withstand high temperature.

Applications:
The Fuel Tank Fast Fill Vent efficiently vents displaced air from the fuel tank, thereby allowing for faster filling rates while reducing the risk of spillage and overpressure situations.

• Material: Acetal Plastic
