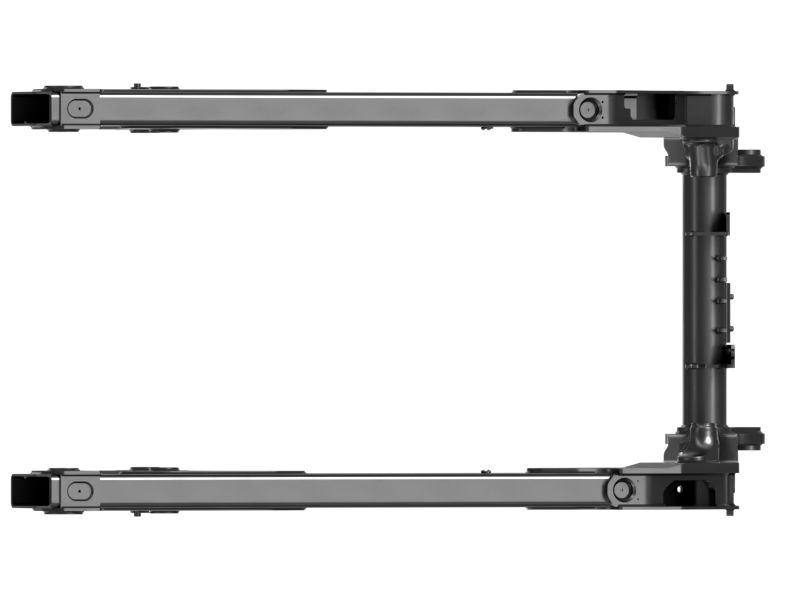

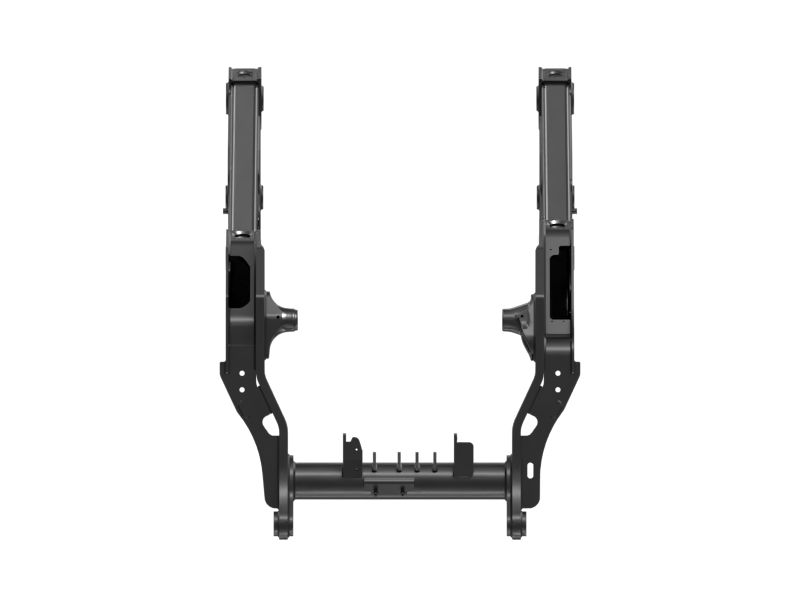

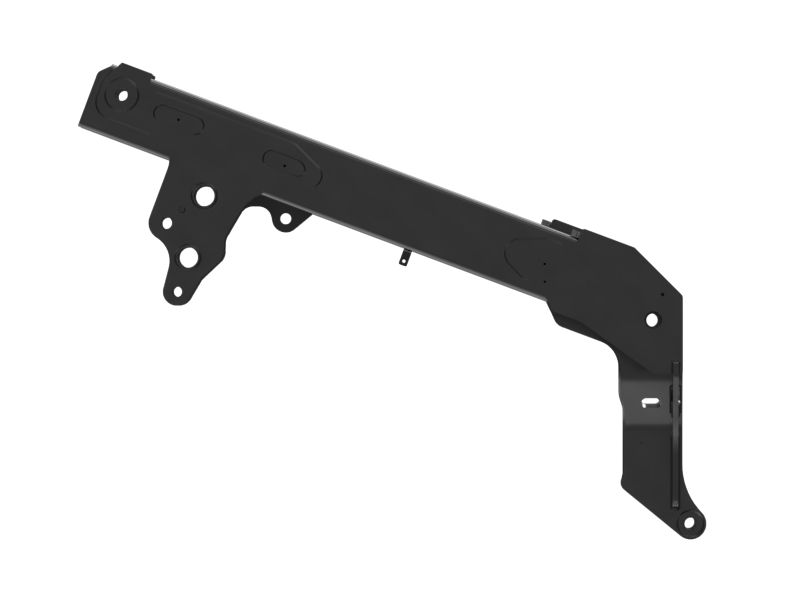

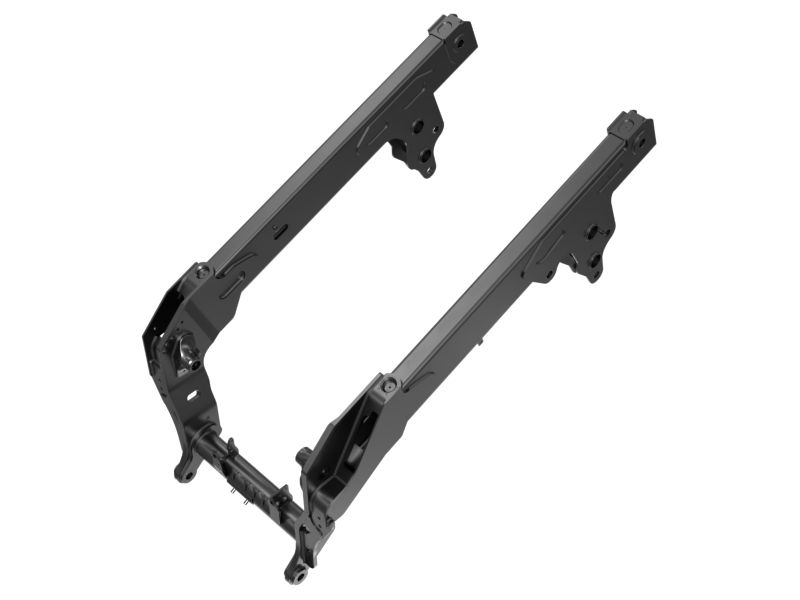

615-5701: Tilt and Lift Arm

Cat® Lift Arm is a structure component used to tilt and lift the attachments. Cat® Lift Arms must endure frequent direction and position changes. They consist of rectangular hollow beams supported by brackets on either sides, designed to equally distribute the load through them. It is a high-performance device that delivers firm and precise movement for various applications in different work sites. It is engineered to handle high loads, temperatures, and to operate reliably and efficiently in harsh environments. Cat® Arms are designed and manufactured to meet these types of demands. These lift arms are connected using pin and sleeve combination, for smooth operation. Genuine Cat® Pin and Sleeve Bearings are specifically designed to operate as a system to deliver the performance you expect. Caterpillar design engineers match the right combination of dimensions, materials, surface finish, and manufacturing processes, to each part to enable them to work and wear effectively with all the other neighboring and dependent parts. Cat® Heavy Duty Sleeve Bearings are built with high grade steel and hardened for exceptional strength and wear life. They work as a system for your specific Cat® Machine and are tested and proven in the world's most severe applications. They give you maximum strength and resistance and result in a lower overall cost, outstanding strength and fatigue life, superior resistance to abrasive wear, and exceptional protection against pin spalling and galling, even in high-load conditions.

Application:
Cat® Lift Arm is used to attach tools and attachments in Cat® Machines. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Overall Length (mm): 2765.7

• Overall Length (in): 108.89

• Overall Height (mm): 1179

• Overall Height (in): 46.42

• Overall Width (mm): 1311.2

• Overall Width (in): 51.62

• Color: Cat Yellow

• Material: Steel,Alloy Steel,Sealants / Adhesives Adhesive

• Weight (kg): 462

• Weight (lb): 1019
