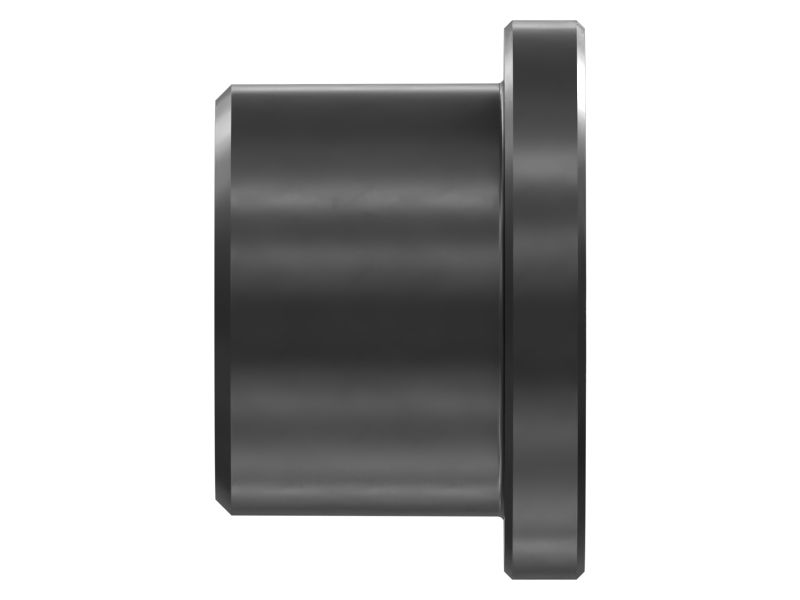

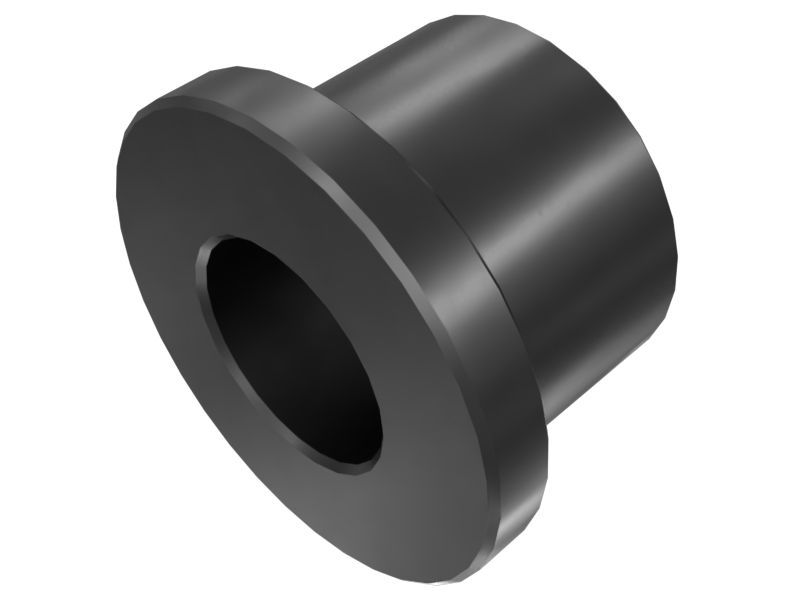

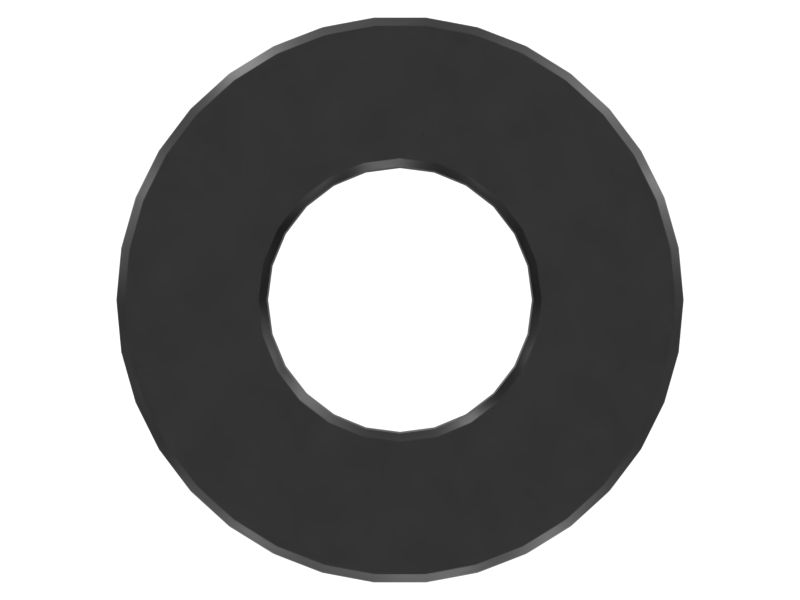

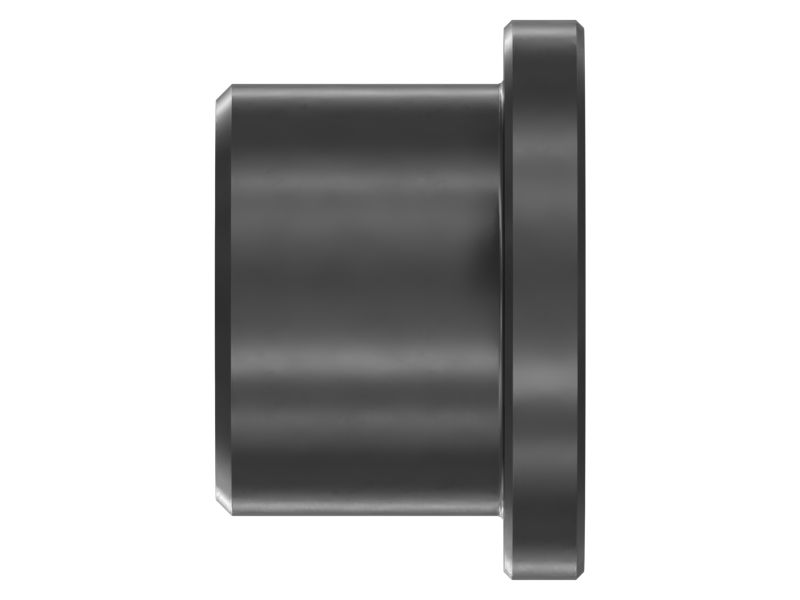

615-4834: 33mm Inner Diameter Puller Stud Bushing

The Puller Stud Bushing facilitates the accurate positioning of the rotor, ensuring optimal alignment and reducing the risk of misalignment-related issues. It ensures a secure fit and accurate alignment by allowing tooling and a lifting device to be attached and positioned accurately. By providing a stable and accurate fit, the Puller Stud Bushing enhances the overall performance and longevity of the propulsion module. Thus, it is a necessary tool for maintenance and assembly processes, contributing to the efficient and reliable operation of electric drive systems in the equipment.

Attributes:
• Minimizes the risk of misalignment and improper fitting, ensuring a proper and secure installation.
• Helps in maintaining proper rotor balance and function.
• Aids in achieving proper torque and load distribution.
• Ensures secure attachment of puller studs for accurate positioning.

Applications:
The Puller Stud Bushing is located within the electric drive propulsion module, used during the installation and alignment processes of the rotor, and ensures that the rotor is accurately positioned within the module, facilitating efficient and reliable operation of the electric drive system.

• Length (mm): 46

• Length (in): 1.811

• Outer Diameter (mm): 70

• Outer Diameter (in): 2.756

• Inner Diameter (mm): 33

• Inner Diameter (in): 1.299

• Material: Steel,Carbon Steel,Coating Mixed

• Weight (kg): 0.636

• Weight (lb): 1.402
