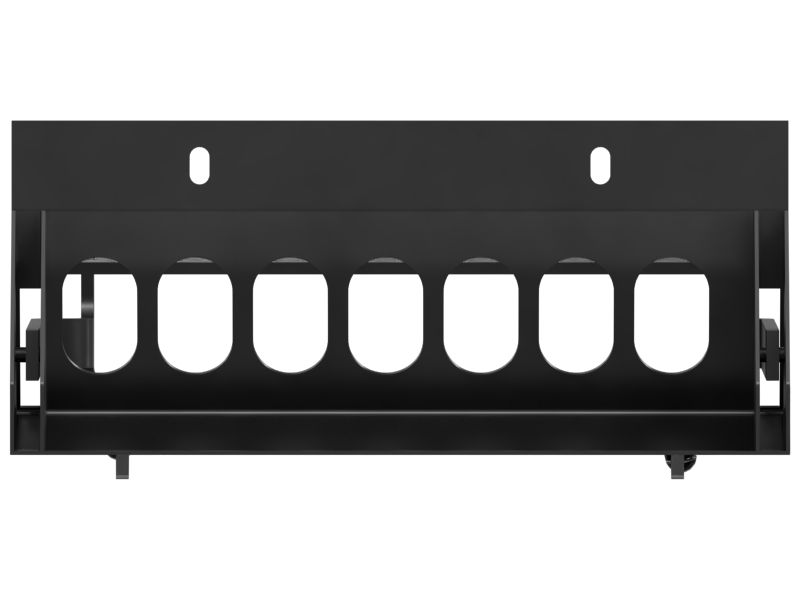

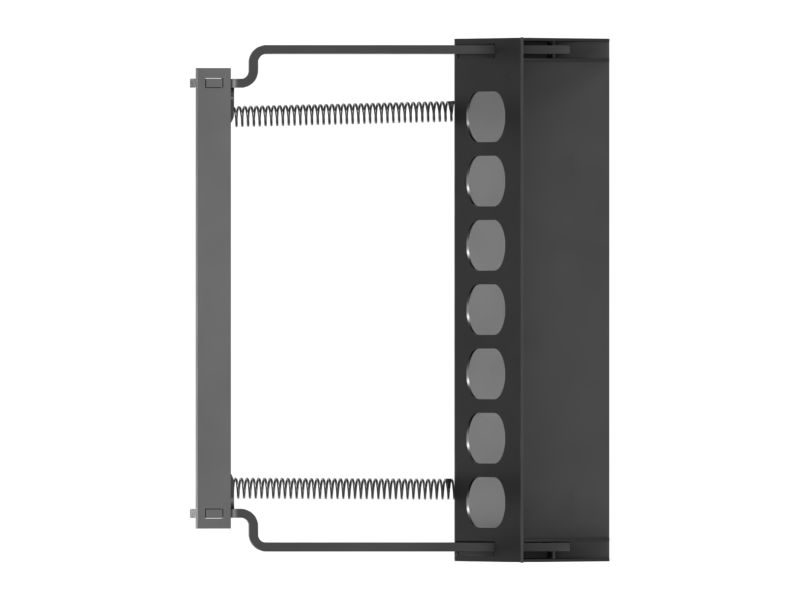

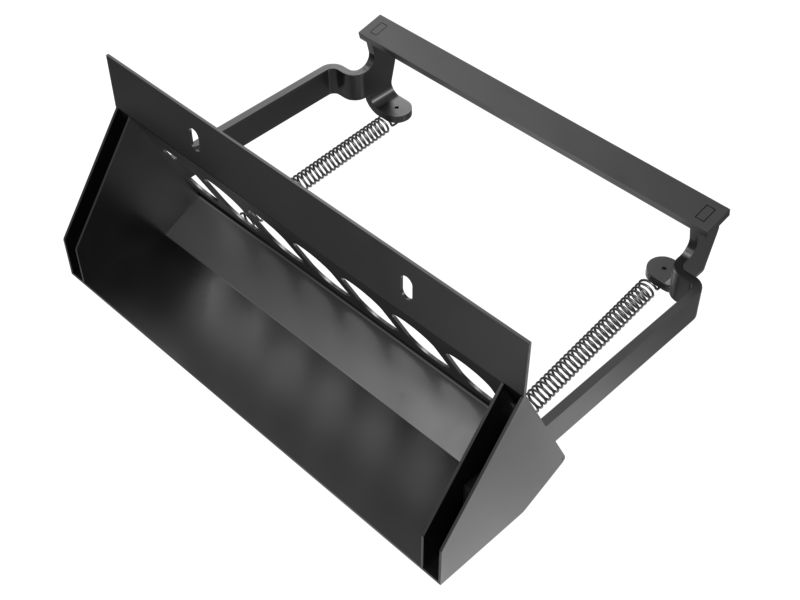

614-3439: Hydraulic Lockout Control Mounting Plate

A Hydraulic Cylinder Piston Guide Ring is also known as a wear ring or bearing ring component in hydraulic cylinders. It is used to guide the piston and rod within the cylinder, ensuring that they move in a linear path without direct metal-to-metal contact between the piston and the cylinder wall. This helps to prevent wear and damage to the cylinder's internal components, thereby extending the life of the cylinder and maintaining its efficiency.

Attributes:
• Reducing wear and maintaining the efficiency of the hydraulic cylinder under high loads and varying temperatures
• Helps in distributing the side loads, thereby preventing uneven wear and potential scoring of the cylinder bore

Applications:
A Hydraulic Cylinder Piston Guide Ring exhibits excellent wear resistance, and low friction, and is capable of withstanding dynamic loads and high side loads without deforming. It ensures a tight seal, preventing fluid leakage and allowing the piston to move smoothly.

• Weight (kg): 1.7

• Weight (lb): 3.74

• Material: Alloy Steel
