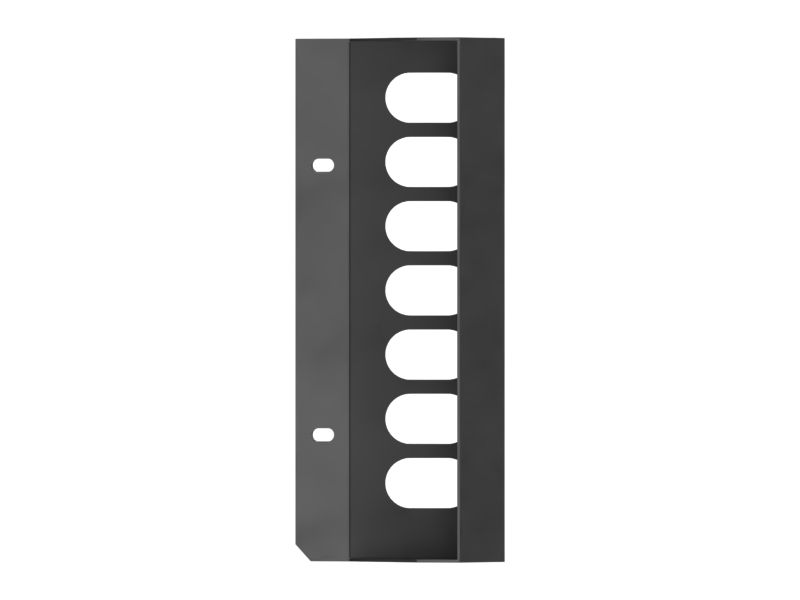

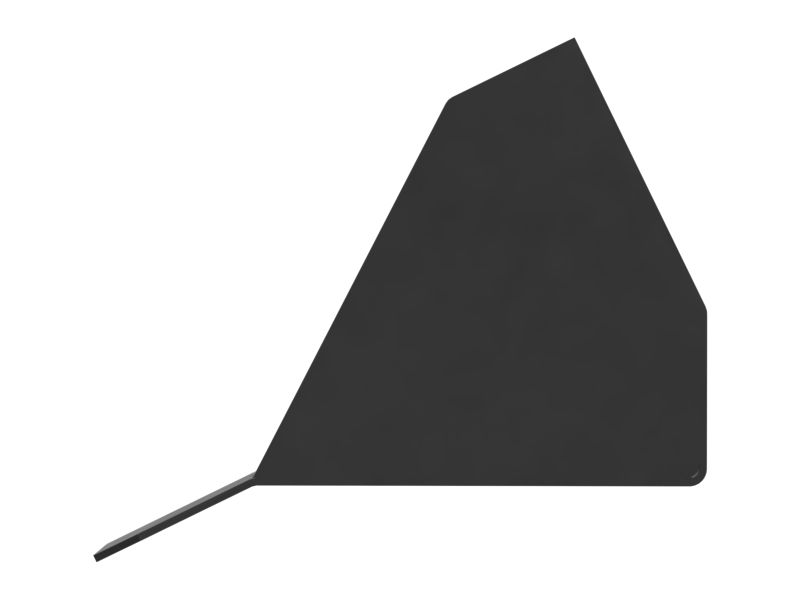

614-3402: 1.5mm Thick Access Panel Cover Plate

A Hydraulic Cylinder Electric Box Supporting Plate provides support for the electrical wiring box, ensuring proper functioning and maintenance of the hydraulic cylinder components. It is mounted inside the electrical box of the hydraulic cylinder. It provides a sturdy platform for securing and routing the wiring harness for the hydraulic cylinder valves, preventing tangling, damage, or interference with other components. The plate ensures that the wiring is properly sorted out and protected, enhancing the reliability of the electrical unit.

Attributes:
• Provides a structured and stable platform for the electrical components within the box assembly
• Helps to reduce the risk of malfunctions, electrical shorts, and maintenance issues

Applications:
A Hydraulic Cylinder Electric Box Supporting Plate is used in the electrical box to securely mount and sort the wiring harness for hydraulic cylinder valves. It helps maintain the integrity and efficiency of the electrical unit in the machine.

• Overall Length (in): 12.21

• Overall Length (mm): 310

• Overall Width (in): 4.18

• Overall Width (mm): 106.1

• Thickness (in): 0.06

• Thickness (mm): 1.5

• Weight (kg): 0.81

• Weight (lb): 1.79

• Material: Carbon Steel,Alloy Steel
