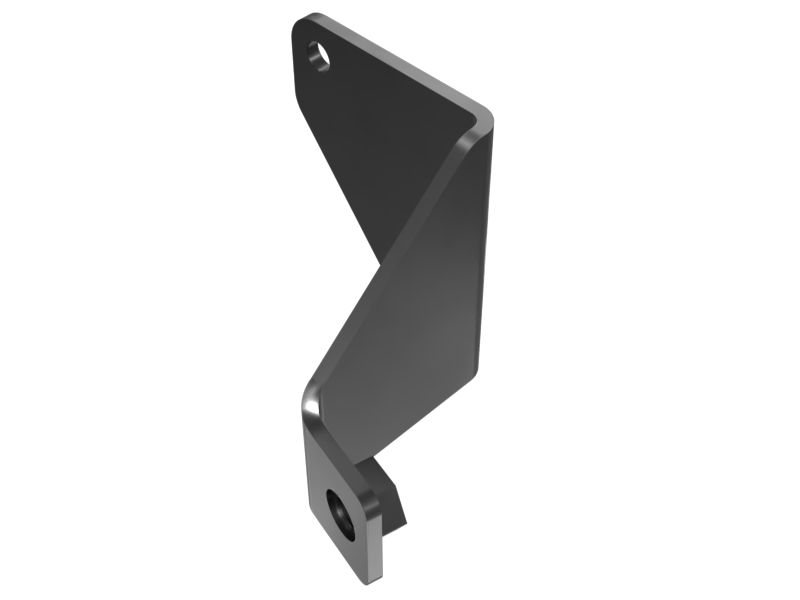

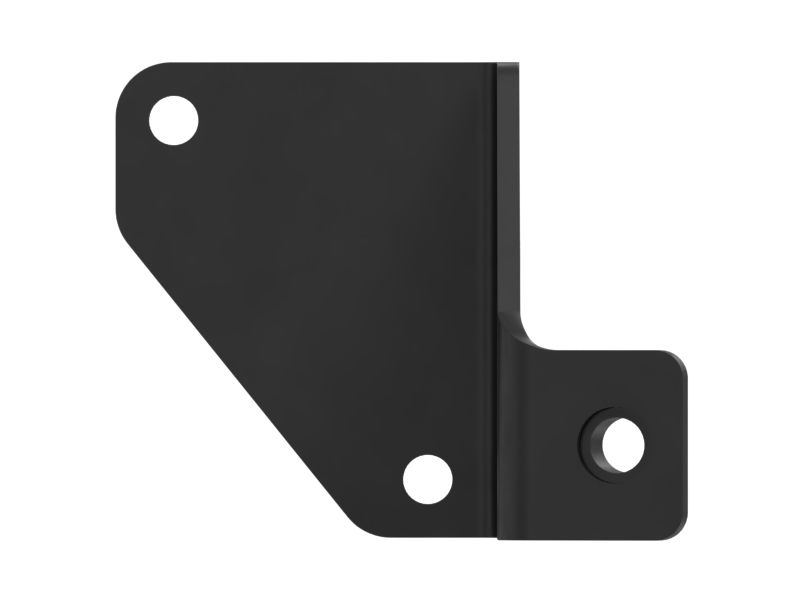

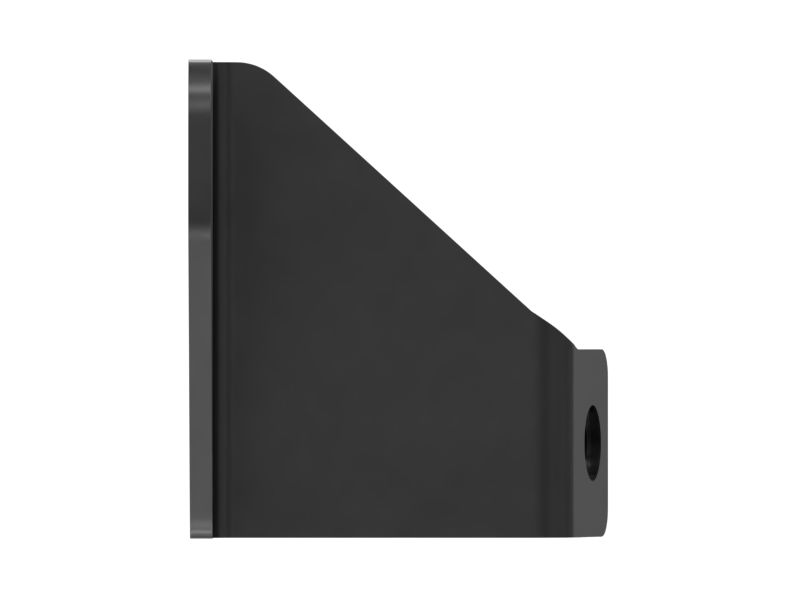

614-2718: Fuel Lines Mounting Bracket

A Fuel Line Clamp Mount Bracket helps to mount the clamp that is intended to clamp the tube in the Fuel Injection Lines. A Bracket is used to provide additional support and stability to a mechanical structure or unit. It includes a bracket, plate, and tube that is welded together to hold the fuel line securely in place and bolted to the engine using fasteners.

Attributes:
• Withstand any vibrations or movement that occur during the operation
• Provided with high strength and wear resistance

Applications:
A Fuel Line Clamp Mount Bracket is used to hold and secure the clamp in the Fuel Injection Lines of the Engine.

• Overall Length (mm): 102.9

• Overall Length (in): 4.05

• Overall Height (mm): 75.6

• Overall Height (in): 2.98

• Overall Width (mm): 86

• Overall Width (in): 3.39

• Material Thickness (mm): 4

• Material Thickness (in): 0.16

• Material: Carbon Steel,Alloy Mixed

• Approx. Weight (kg): 0.31

• Approx. Weight (lb): 0.69
