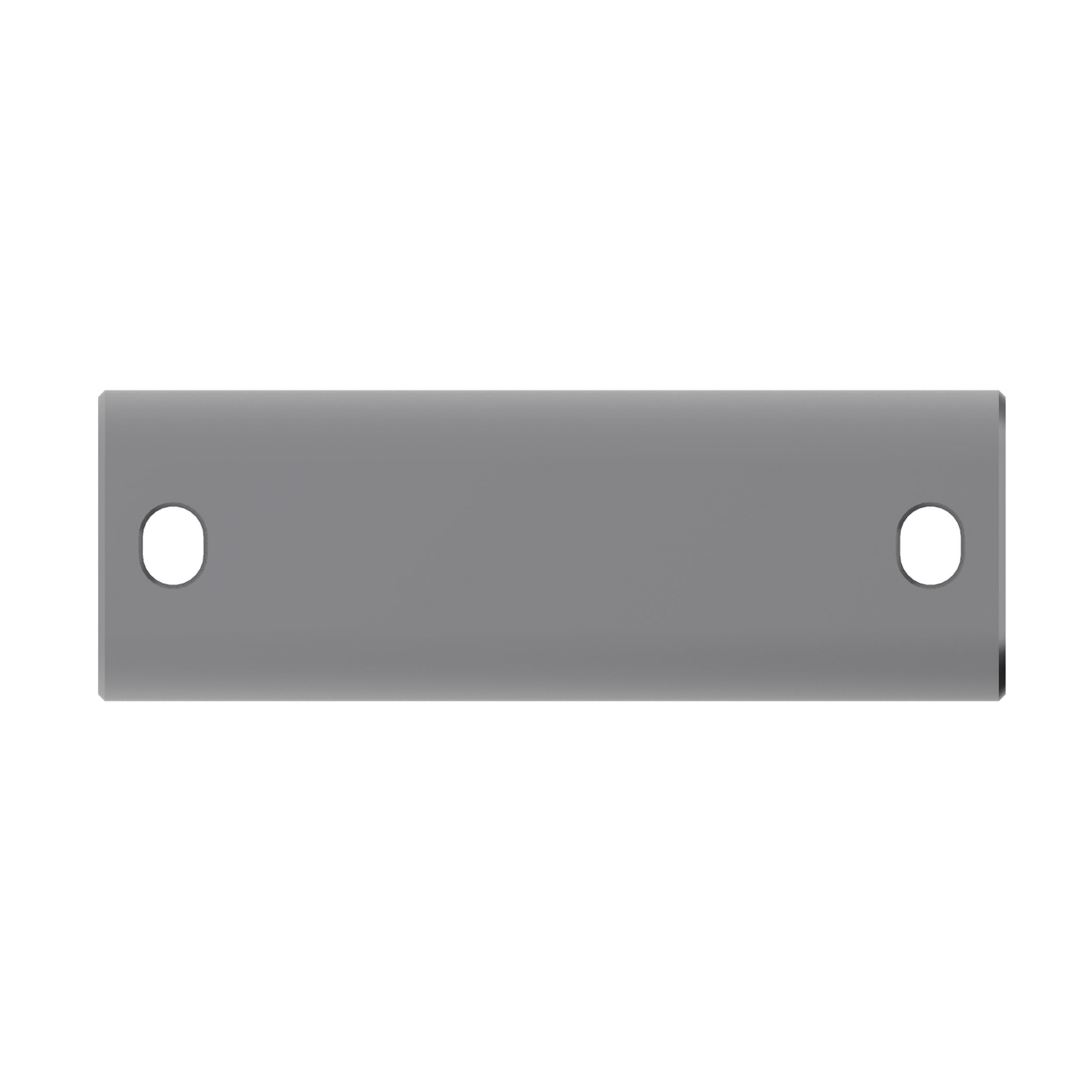

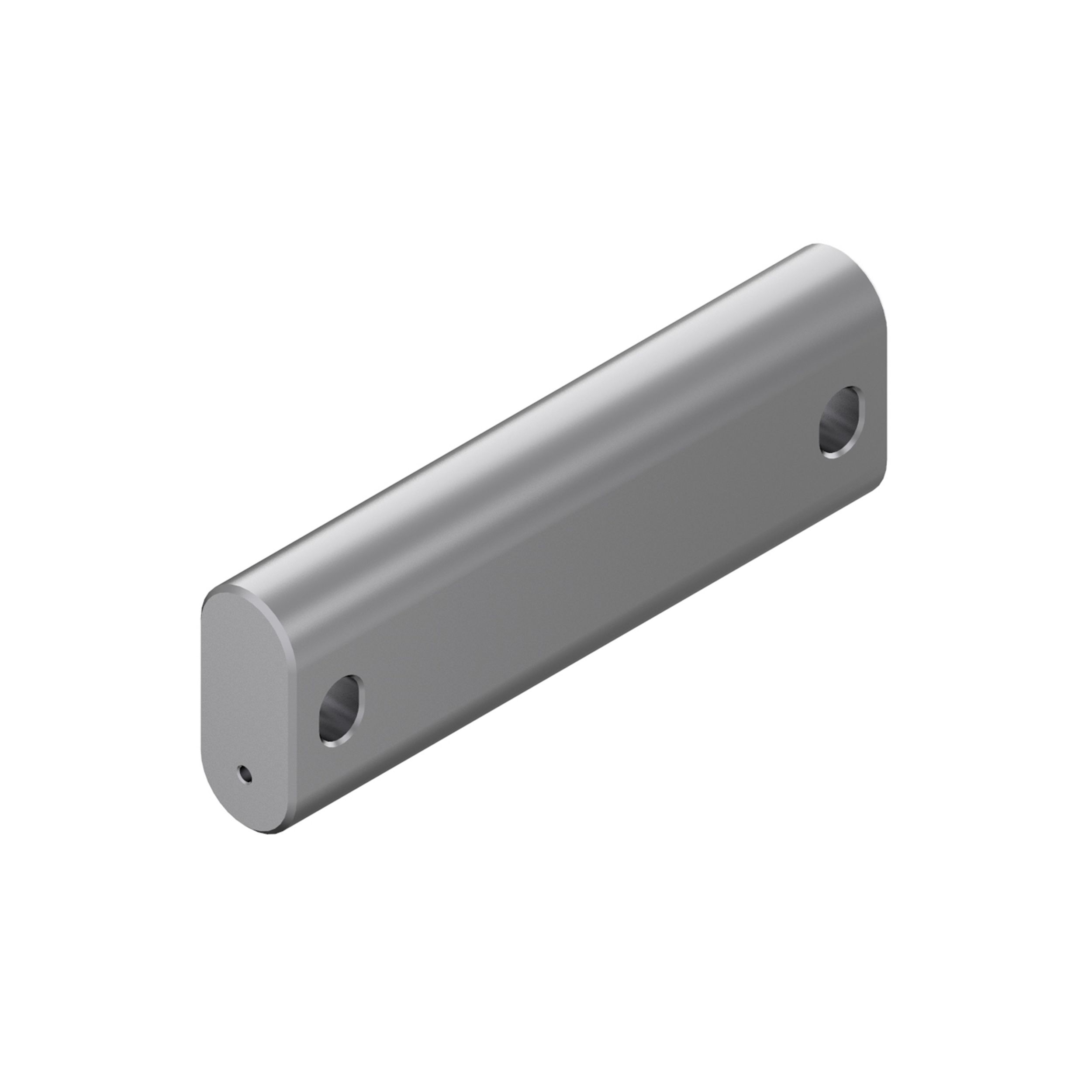

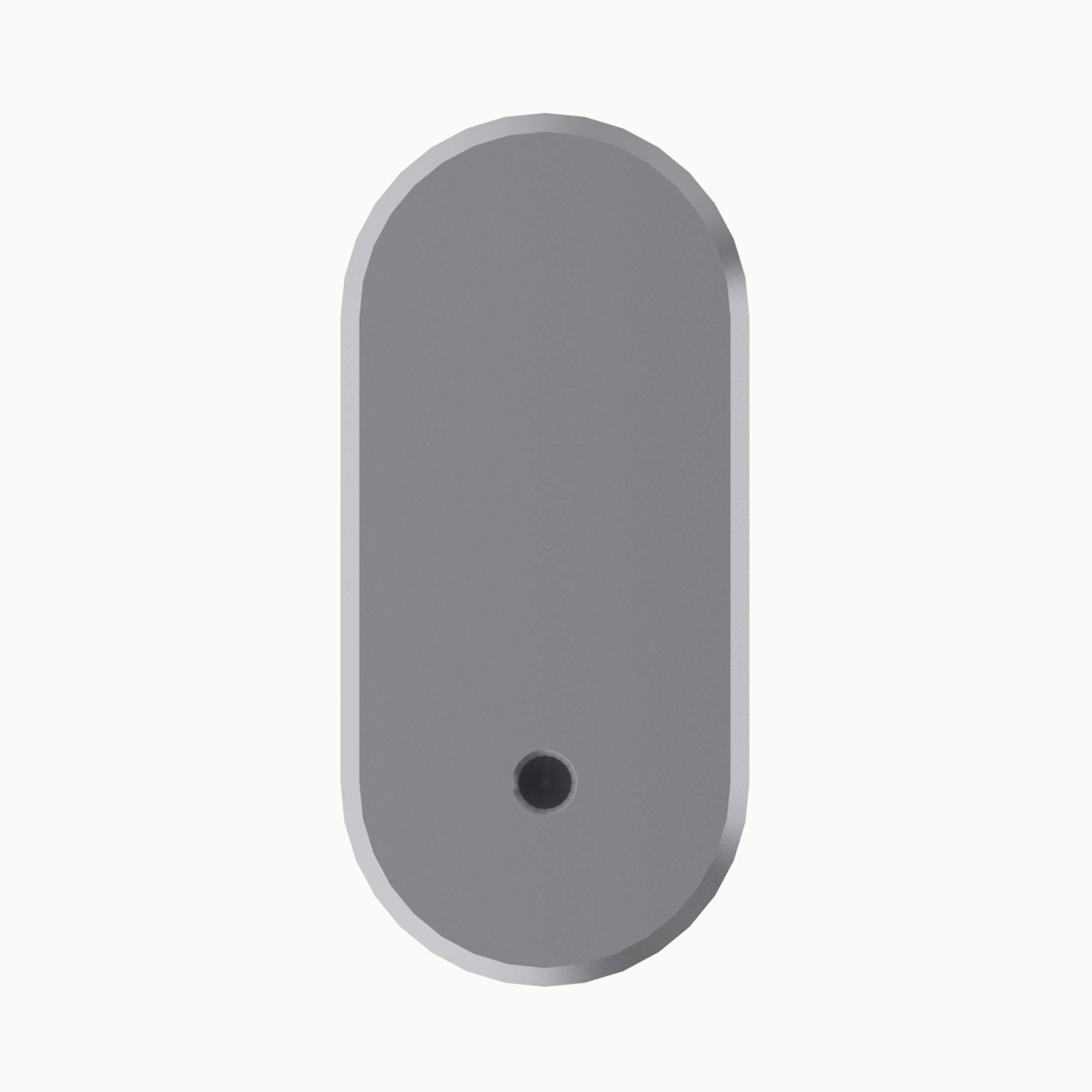

614-1458: Tool Retaining Pin

Description:
Cat® Tool Retaining Pins support rotational movement between machine frames, linkages and work tools. They are found wherever rotation must occur between two structures. Genuine Cat® Pins and Sleeve Bearings are specifically designed to operate as a system to deliver the performance you expect. Caterpillar design engineers match the right combination of dimensions, materials, heat treatment, surface treatments and finish to each part to enable them to work and wear effectively with all the other neighboring and dependent parts.

Application:
Cat® Hardened Pins are designed for conditions that require superior load carrying capacity, strength and wear resistance for longer pin joint life. Cat® Linkage Pins are the top choice for maximum performance in demanding applications. They are designed to match to the mating sleeve bearing. Consult your owner's manual or contact your local Cat Dealer for more information.

• Length (mm): 405

• Length (in): 15.95

• Height (mm): 139.5

• Height (in): 5.5

• Width (mm): 65

• Width (in): 2.56

• Material: Steel,Coating Mixed

• Approx. Weight (kg): 24.99

• Approx. Weight (lb): 55.1
