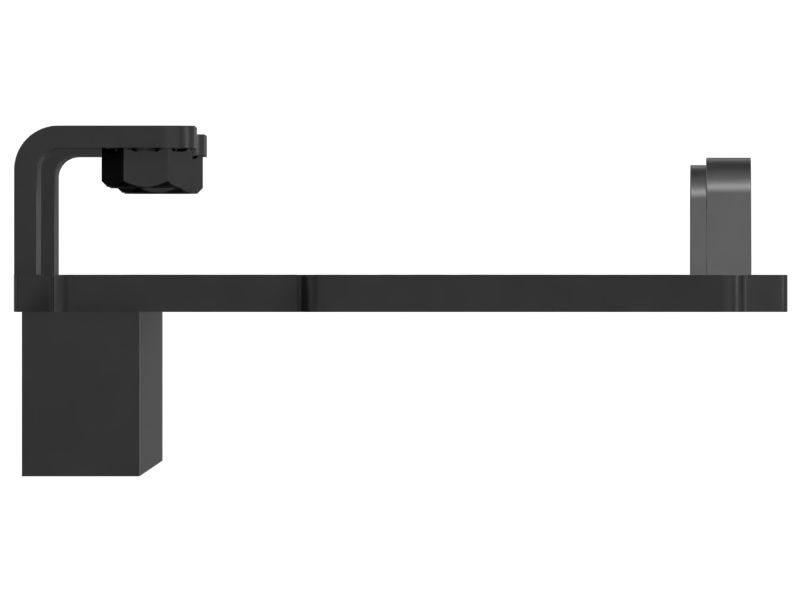

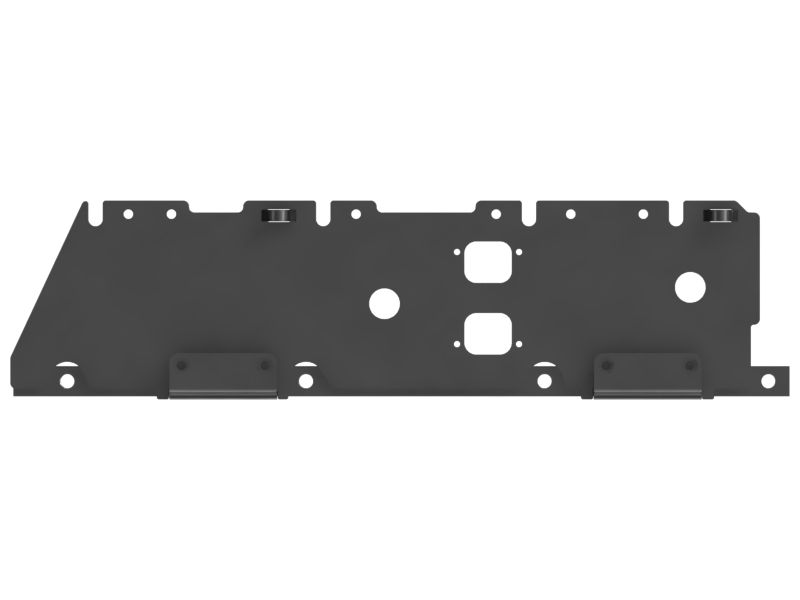

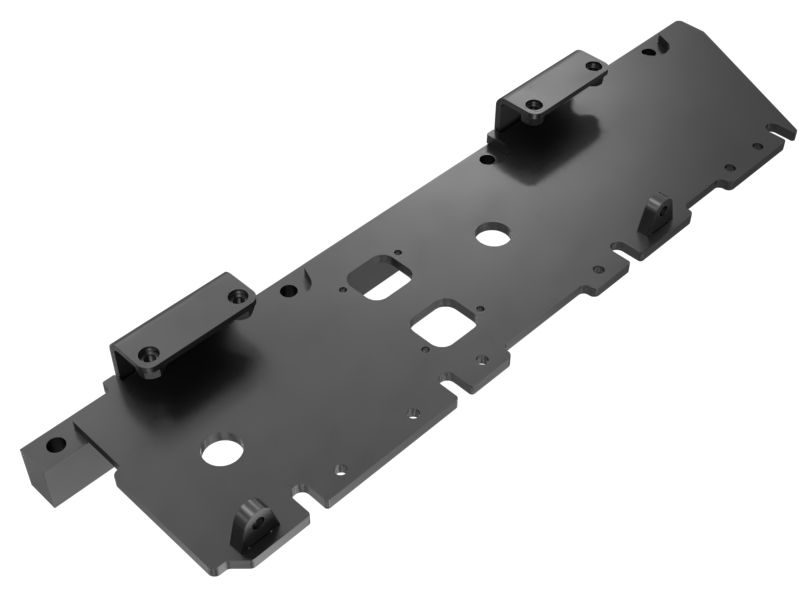

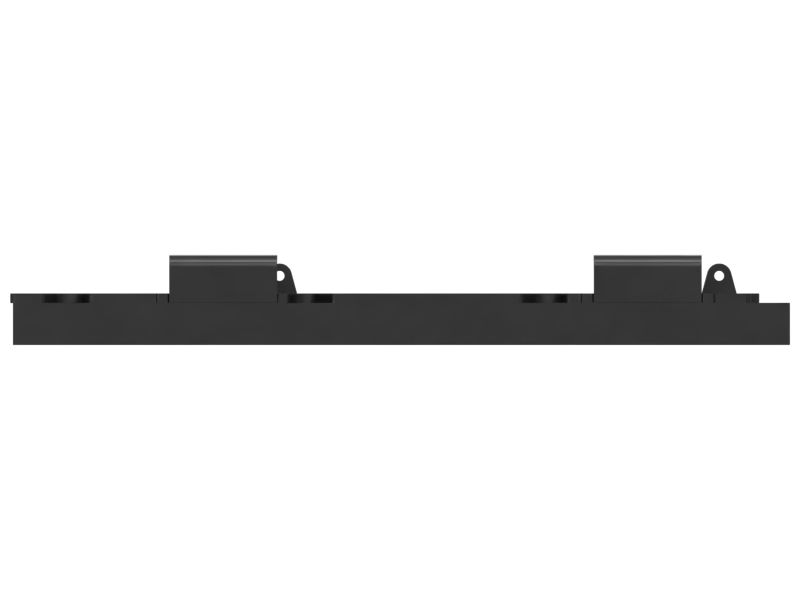

613-8264: Right Hand Screed Extension Frame

The Right-Hand Screed Extension Frame is an integral part of the screed assembly in asphalt pavers. It is positioned on the right side of the paver and extends outward from the main screed assembly. This extension frame serves to widen the paving width, allowing for greater coverage during the asphalt laying process. The primary function of the right-hand screed extension frame is to extend the width of the paving area, enabling the paver to cover a larger surface area with asphalt in a single pass.

Attributes:
• Resistant to deformation and bending under load.
• Provides a secure connection to the main screed frame.
• Designed to withstand high loads and vibrations.
• Facilitates extension of screed for increased paving width.

Applications:
The Right-Hand Screed Extension Frame is located on the right side of the asphalt paver, adjacent to the main screed assembly. It extends outward from the main frame of the paver, covering the designated width of the paving area. This component works in conjunction with the left-hand screed extension frame, which performs a similar function on the opposite side of the paver, to achieve the desired paving width.

• Material: Alloy Steel,Alloy Mixed
