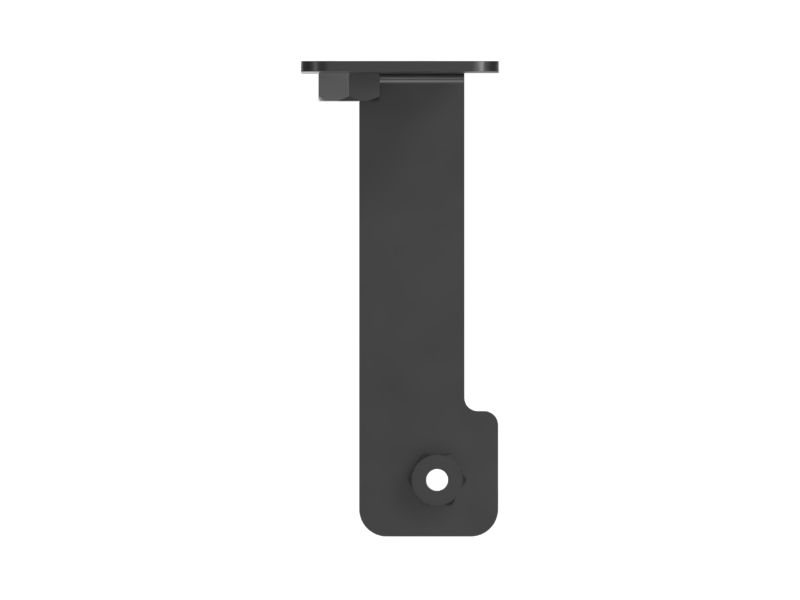

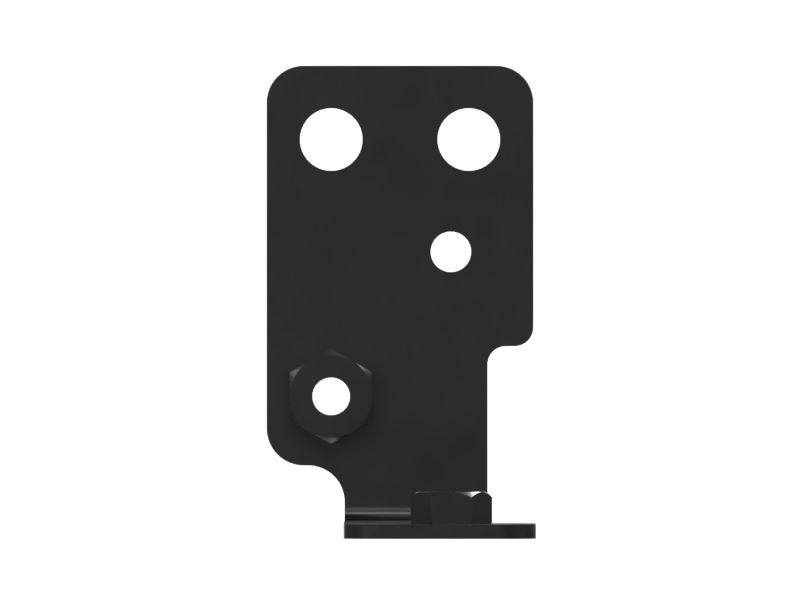

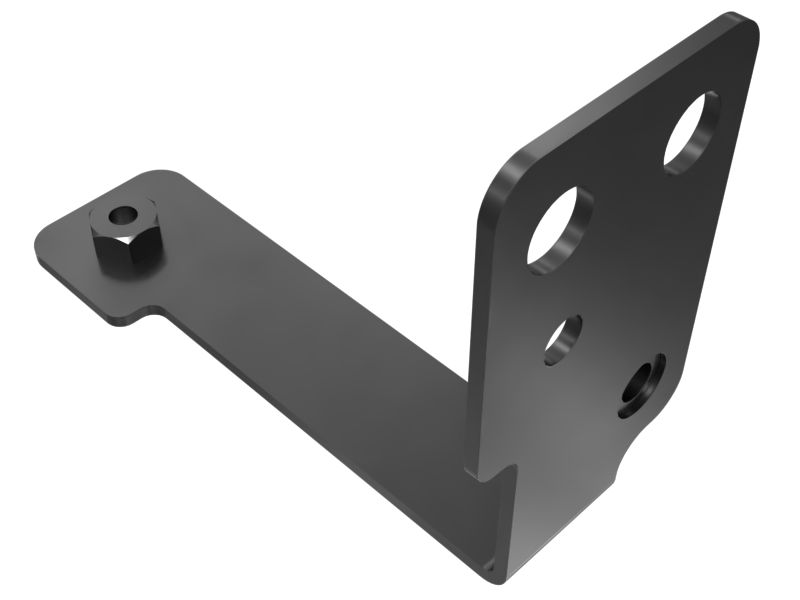

613-6743: 3mm Thick Fuel Cooler Lines Mounting Bracket

The Fuel Cooler Lines Mounting Bracket is used to hold and support the fuel cooler lines. It ensures the lines are securely fastened and properly routed to prevent damage and ensure efficient cooling of the fuel. The bracket helps maintain the integrity of the fuel cooling system by preventing vibrations and movement during operation.

Attributes:
• Securely holds fuel lines in place to prevent movement and damage.
• Prevents vibration-induced wear and tear on fuel lines.
• Ensures proper alignment of fuel lines to avoid kinks and bends.

Applications:
The Fuel Cooler Lines Mounting Bracket is used to secure the fuel cooler lines to the equipment frame, ensuring they remain in the proper position to prevent movement and vibration.

• Overall Length (mm): 140

• Overall Length (in): 5.512

• Overall Width (mm): 38

• Overall Width (in): 1.496

• Overall Height (mm): 102

• Overall Height (in): 4.016

• Thickness (mm): 3

• Thickness (in): 0.12

• Hole Size (mm): 13.8, 9

• Hole Size (in): 0.543, 0.354

• Internal Thread: M10x1.5

• Weight (kg): 0.24

• Weight (lb): 0.529

• Material: Alloy Mixed
