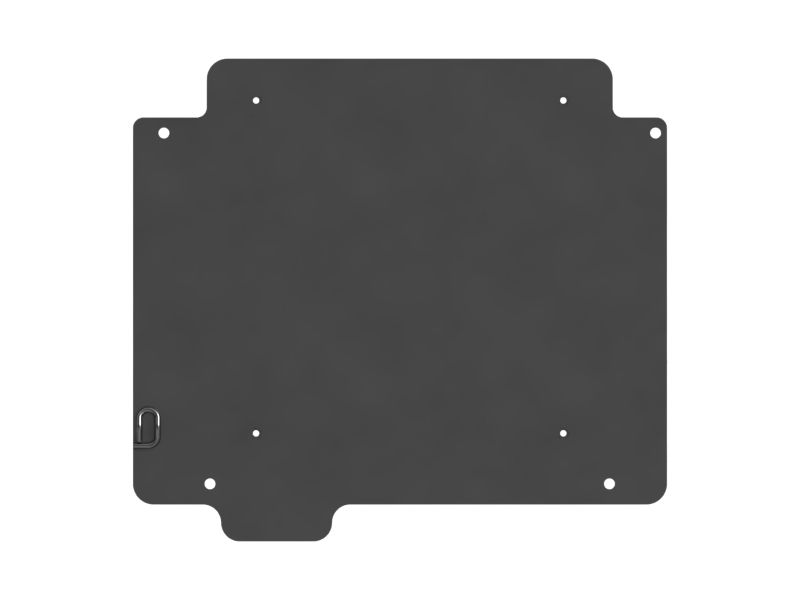

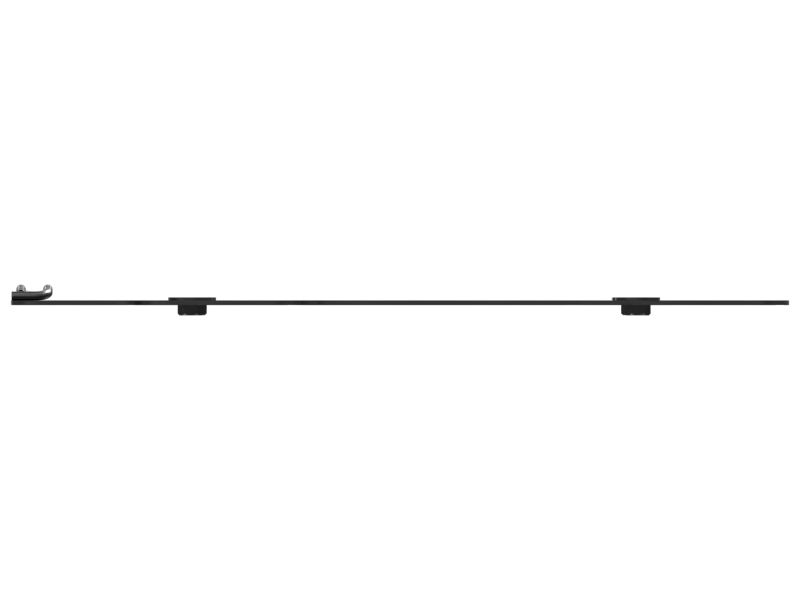

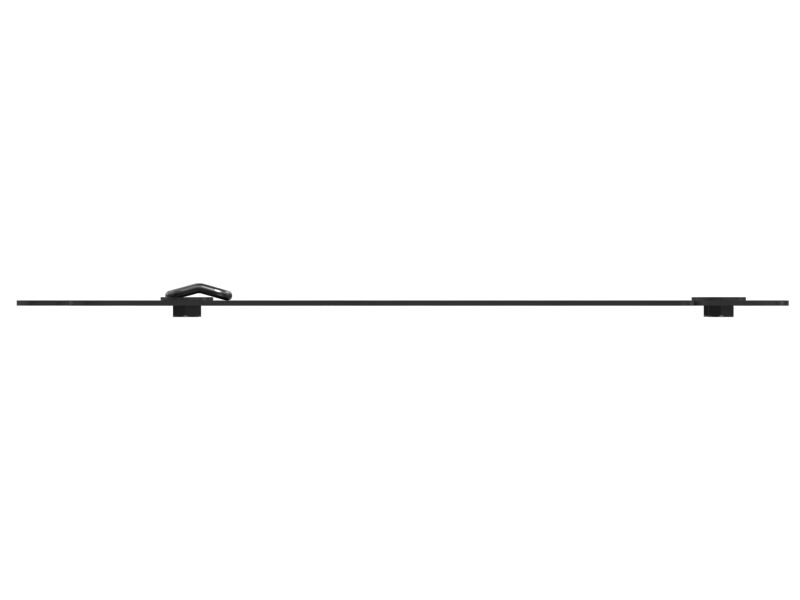

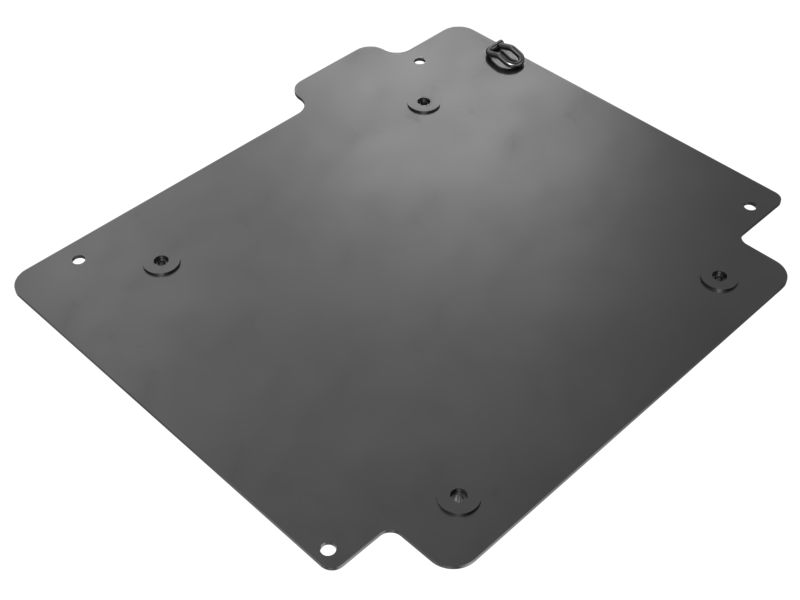

613-5576: Operator Seat Support Plate

An Operator Seat Support Plate is designed to provide stability and ergonomic support to the operator's seat in equipment. It serves as a foundational element, connecting the operator's seat to the equipment's structure. Its design absorbs vibrations and shocks, providing a stable platform for the operator to work comfortably even during prolonged use. The secure mounting points ensure that the seat remains firmly in place, contributing to overall safety and efficiency in equipment operations.

Attributes:
• Designed with durable material.
• Designed to support the weight of operators efficiently.
• Resist rust and environmental damage.

Applications:
An Operator Seat Support Plate is located beneath the operator's seat in equipment, providing structural reinforcement for enhanced stability and comfort.

• Overall Length (mm): 521

• Overall Length (in): 20.51

• Overall Width (mm): 20.5

• Overall Width (in): 0.81

• Overall Height (mm): 471

• Overall Height (in): 18.54

• Material Thickness (mm): 3

• Material Thickness (in): 0.12

• Nut Type: Weld Nut

• Thread Size (dia x pitch) (mm): M8 x 1.25 (4x)

• Color: Medium Gloss Black

• Material: Steel,Alloy Steel,Alloy Mixed

• Weight (kg): 5.32

• Weight (lb): 11.72
