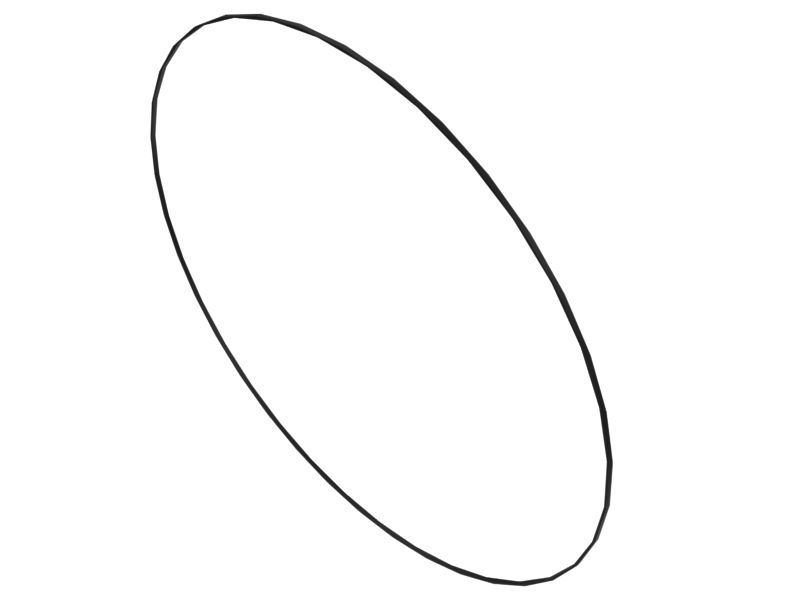

613-4685: Seal Ring

Description:
Rectangular seals and rings, like part # 613-4685, are circular seals with a rectangular cross-section. The edges may or may not be rounded according to the application needs.

Cat seals and rings are made from materials that are matched to the fluids, temperatures, and pressures found in Cat engines and machines. The materials resist wear and extrusion and provide superior resistance to seal compression set.
Dimensions of our seals and rings are consistently held to high tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
Seal rings may be solid or split. Split rings are used for ease of assembly.
Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals.

Attributes:
• Seal Type: Solid Ring
• Cross Section Type: Rectangular
• Inside Diameter: 685.5 mm (26.99 in)

Application:
Consult your owner’s manual or contact your local Cat Dealer for more information.

• Material: PTFE,Polytetrafluoroethylene (PTFE) Plastic

• Material Description: PTFE provides superior performance in air, engine

• Inside Diameter (mm): 685.5

• Outside Diameter (mm): 690.58

• Cross Section Width (mm): 5.08

• Cross Section Height (mm): 2.54

• Inside Diameter (in): 26.99

• Outside Diameter (in): 27.19

• Cross Section Width (in): 0.20

• Cross Section Height (in): 0.10
