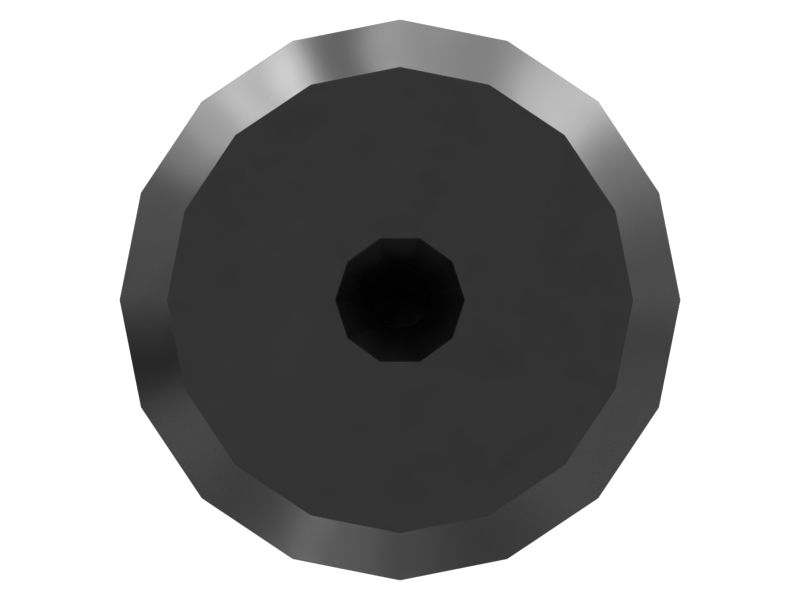

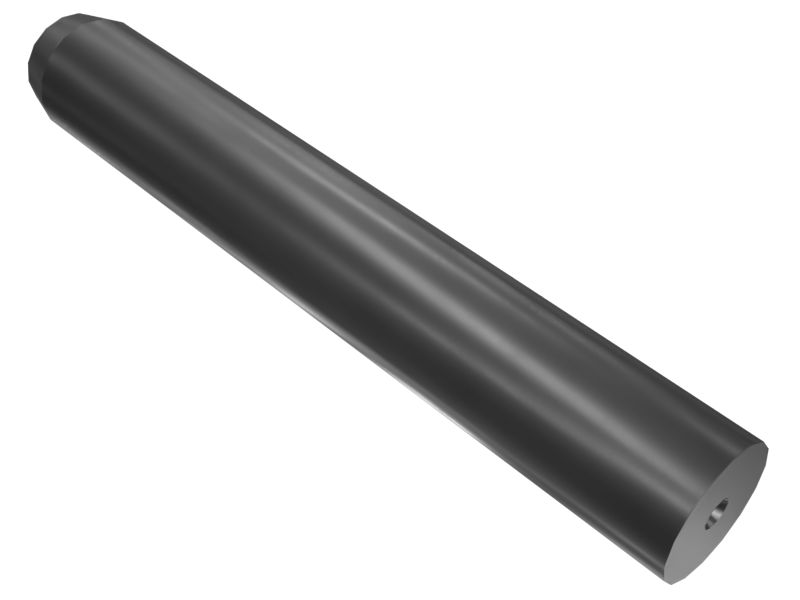

613-2616: 46.5mm Outer Diameter Alignment Pin

An Alignment Pin is responsible for ensuring the accurate positioning of track links. It is inserted into specific locations on the track links, guiding them into the correct alignment before they are joined together. This precision is necessary for the smooth operation of the track mechanism, as it helps prevent misalignment. By maintaining the correct alignment, the pin contributes to the overall efficiency and reliability of the equipment, ensuring that the tracks function as intended and prolonging the lifespan of the equipment.

Attributes:
• Capable to resist wear and deformation under load.
• Guides track links into correct alignment, preventing potential misalignment issues.
• Provides high tensile strength to support track link assembly.
• Facilitates smooth and accurate track link installation.

Applications:
An Alignment Pin is used in the track link assembly of the equipment positioned in the holes of the track links to ensure proper alignment during the assembly process.

• Pin Diameter (mm): 46.5

• Pin Diameter (in): 1.831

• Length (mm): 300

• Length (in): 11.811

• Weight (kg): 3.956

• Weight (lb): 8.721

• Material: Steel,Coating Mixed
