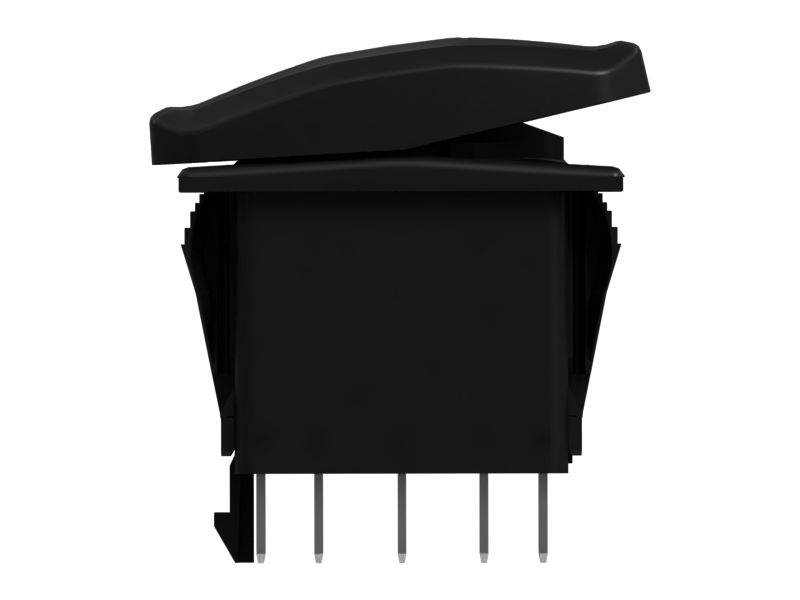

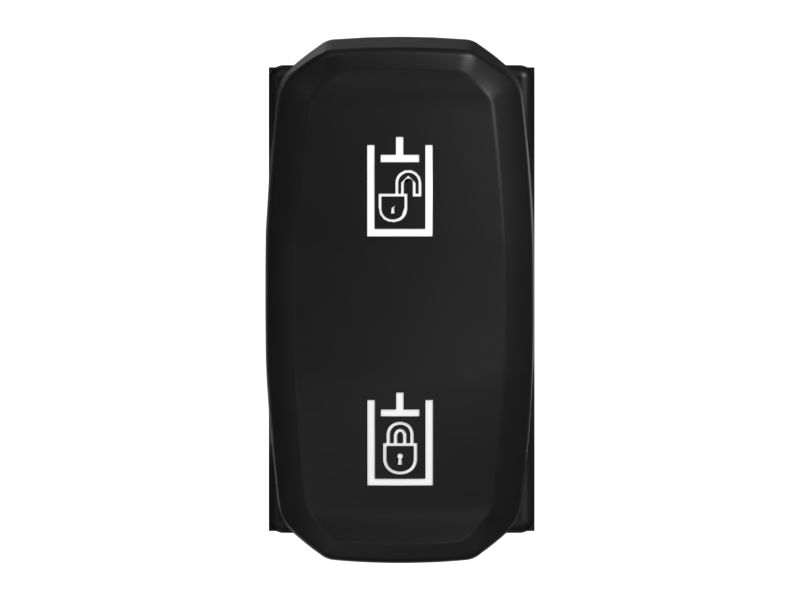

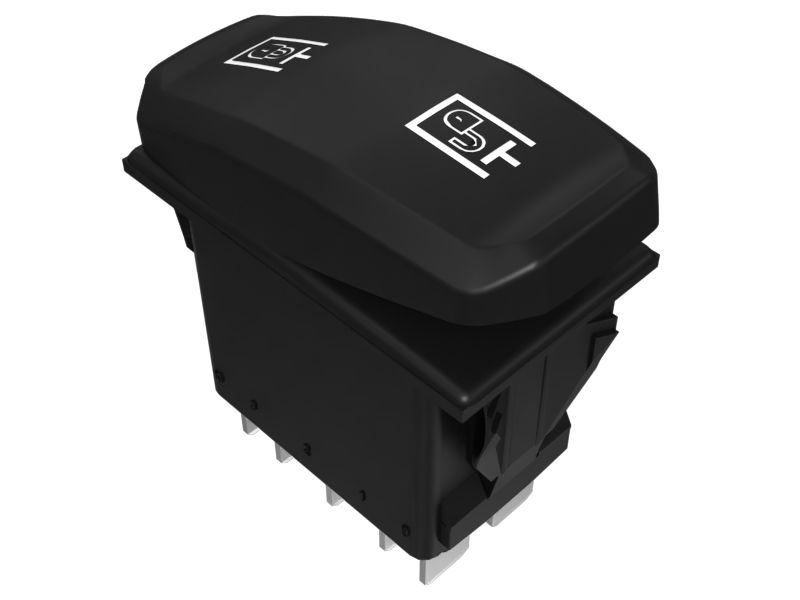

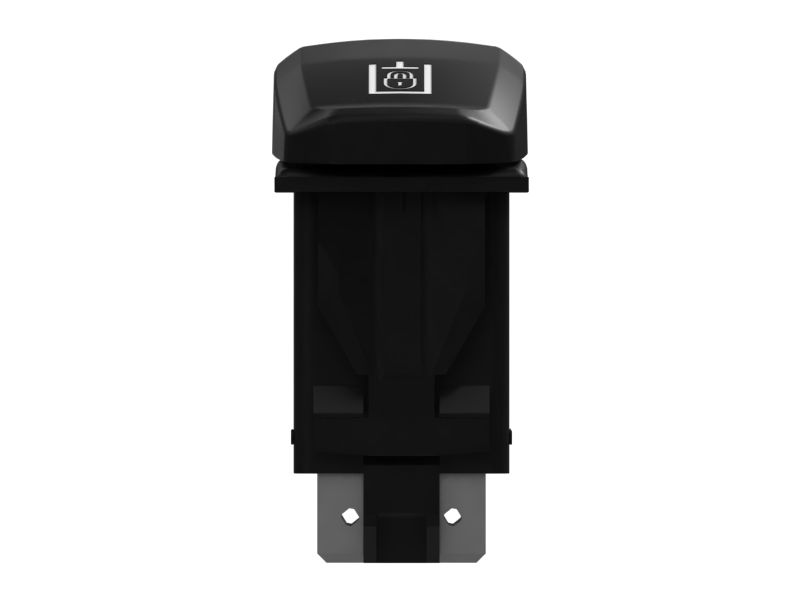

613-2383: Hydraulic Lock Switch

A Rocker Switch is a two-position switch that can be rocked back and forth to activate or deactivate a function. The switch has three terminals, one for power, one for ground, and one for the load (the device being controlled). When the switch is rocked in one direction, it connects the power terminal to the load terminal. When the switch is rocked in the other direction, it connects the ground terminal to the load terminal. This completes the circuit and activates the load.

Attributes:
• Used to control circuits with different voltage and amperage ratings
• Manufactured to precise specifications and is built for durability and reliability

Applications:
A Rocker Switch can be used to lock out implements on a small wheel loader. This prevents the implements from being operated accidentally.

• Overall Length (mm): 48.7

• Overall Length (in): 1.92

• Overall Width (mm): 24.7

• Overall Width (in): 0.97

• Overall Height (mm): 50.4

• Overall Height (in): 1.98

• Voltage (volts): 24

• Operating Temperature: -40°C to +85°C

• Material: Nylon Plastic,Polyamide Plastic,Alloy Copper

• Weight (kg): 0.03

• Weight (lb): 0.07
