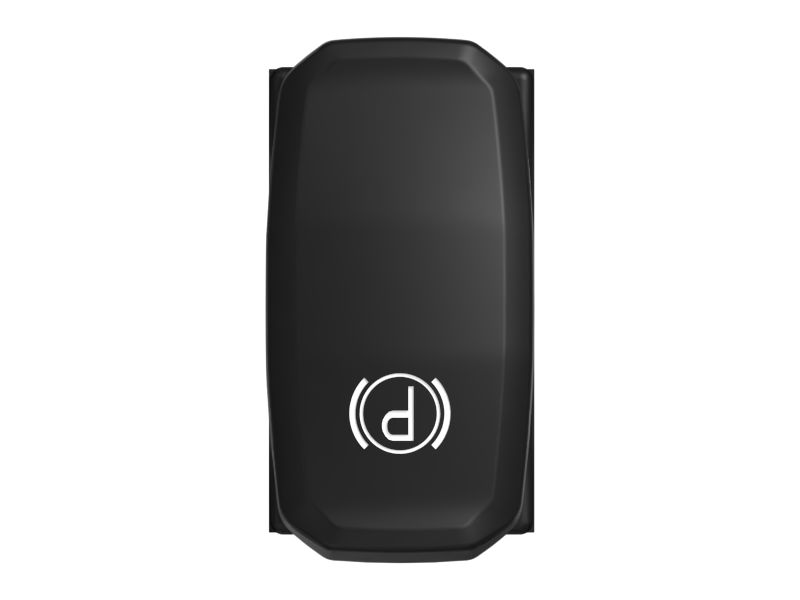

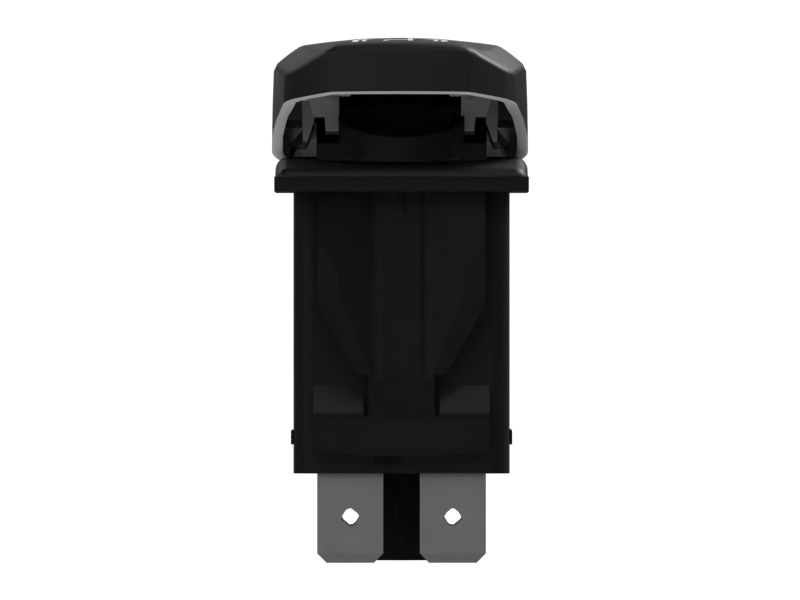

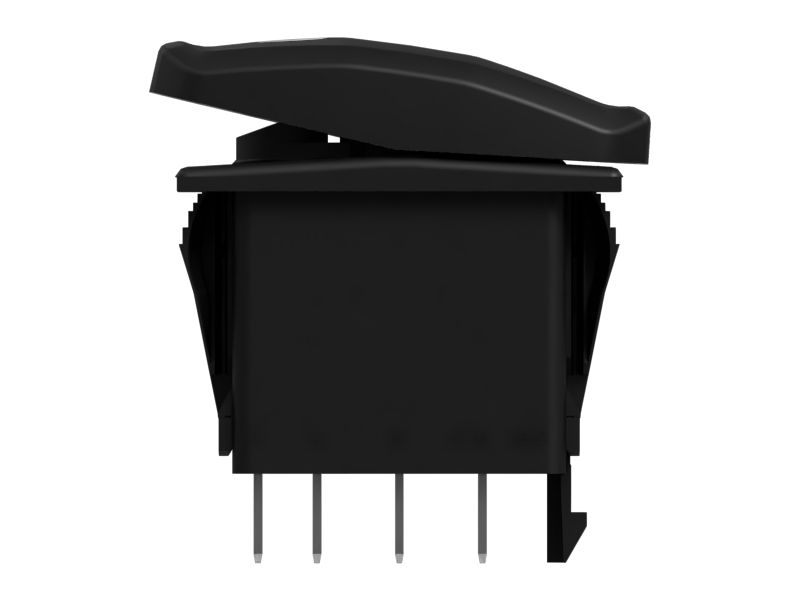

613-2381: 24Volt Rocker Switch

A Rocker Switch is a two-position switch that can be rocked back and forth to activate or deactivate a function. The switch has three terminals, one for power, one for ground, and one for the load (the device being controlled). When the switch is rocked in one direction, it connects the power terminal to the load terminal. When the switch is rocked in the other direction, it connects the ground terminal to the load terminal. This completes the circuit and activates the load.

Attributes:
• Used to control circuits with different voltage and amperage ratings
• Manufactured to precise specifications and is built for durability and reliability

Applications:
A Rocker Switch has a spring-loaded rocker that can be moved to the on or off position. When the switch is in the on position, it completes the electrical circuit that activates the parking brake. When the switch is in the off position, it opens the electrical circuit, and the parking brake is released.

• Overall Length (mm): 48.7

• Overall Length (in): 1.92

• Overall Width (mm): 24.7

• Overall Width (in): 0.97

• Overall Height (mm): 50.4

• Overall Height (in): 1.98

• Voltage (volts): 24

• Operating Temperature: -40°C to +85°C

• Material: Nylon Plastic,Polyamide Plastic,Alloy Copper

• Weight (kg): 0.03

• Weight (lb): 0.07
