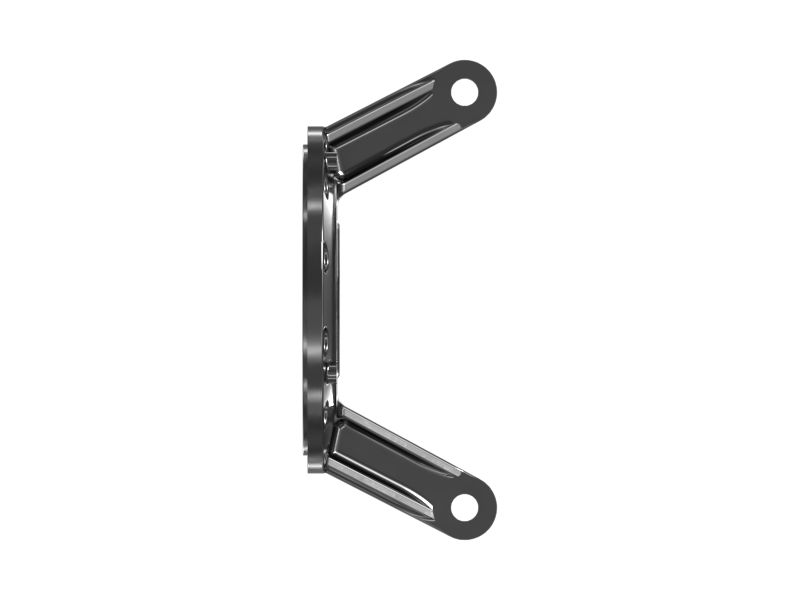

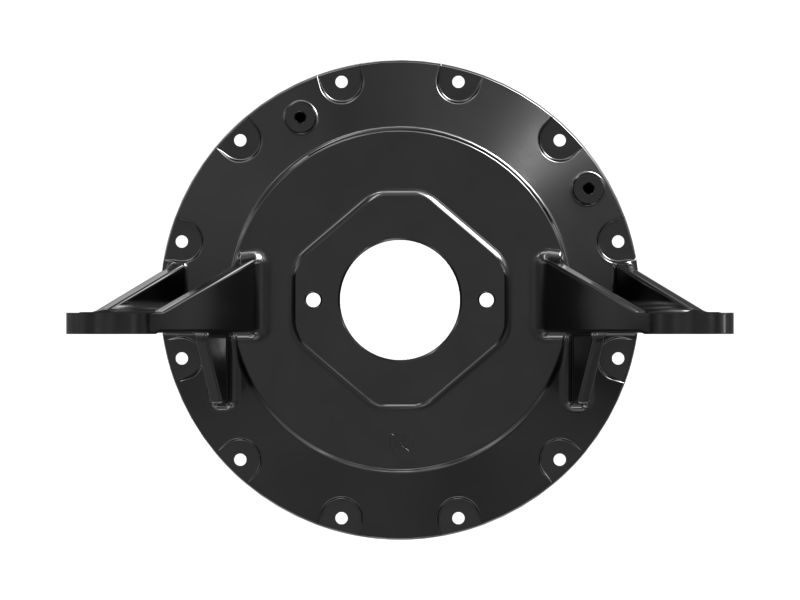

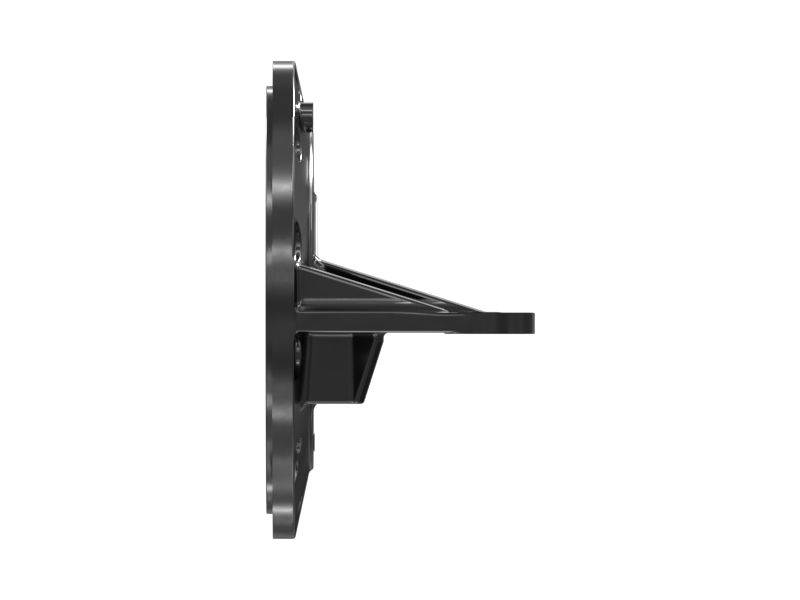

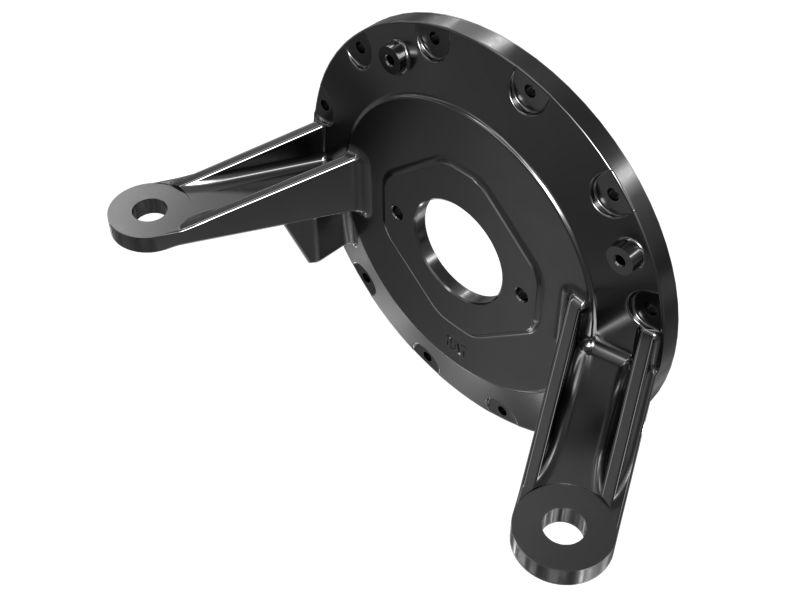

613-2242: Engine Housing Cover

Cat® Engine Front Housing Body is designed to protect various internal components of the engine. They provide protection against corrosion and excessive contaminates. Cat® front housing assemblies are designed to cover various gear drives. Cat® front housings are designed for your rugged work environment. Dimensions of our housings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.

Application:
Cat® Engine Front Housings are used on the front section of Cat® engines. Consult your owner’s manual or contact your local Cat® Dealer for more information.

• Length (mm): 559

• Inner Diameter (in): 4

• Length (in): 22.01

• Inner Diameter (mm): 101.65

• Width (mm): 225.7

• Material: Ductile Iron Casting,Ductile (Spheroidal) Iron

• Width (in): 8.89

• Outer Diameter (in): 15.91

• Outer Diameter (mm): 404

• Height (mm): 404

• Height (in): 15.91

• Weight (kg): 19.03

• Weight (lb): 41.95

• Color: Yellow
