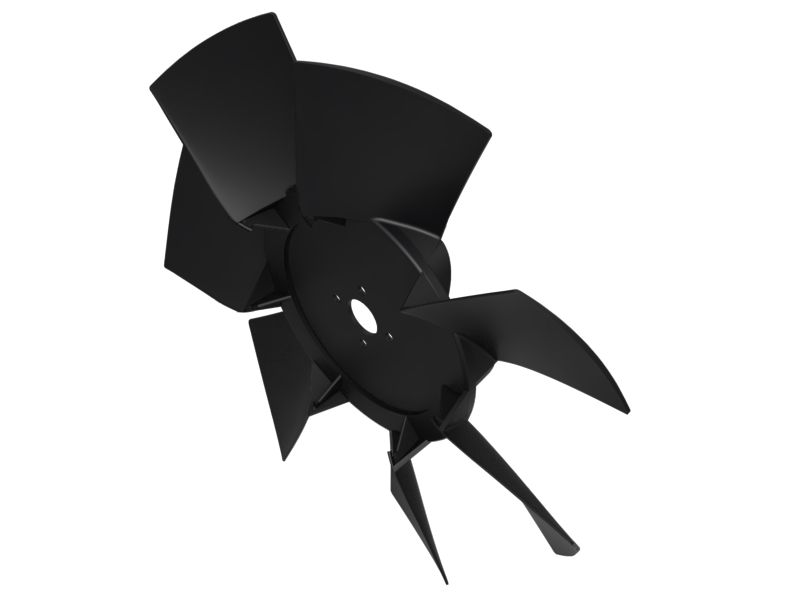

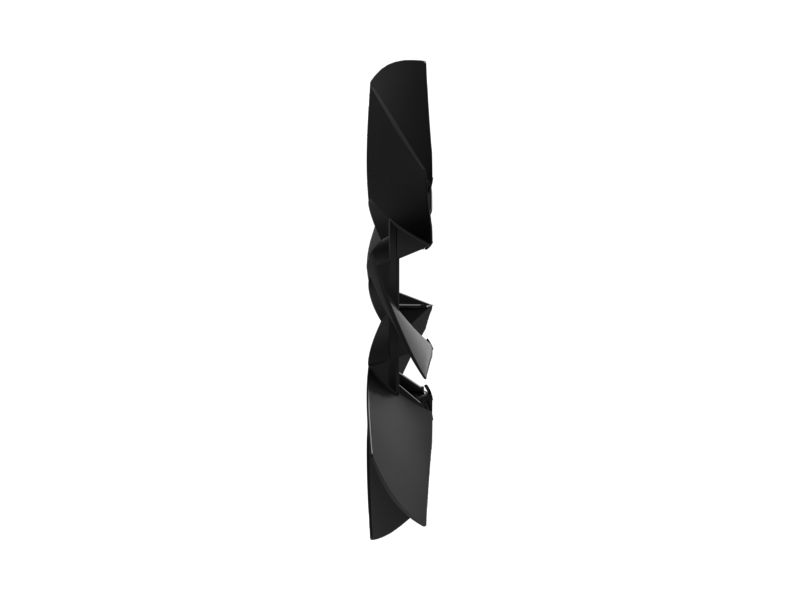

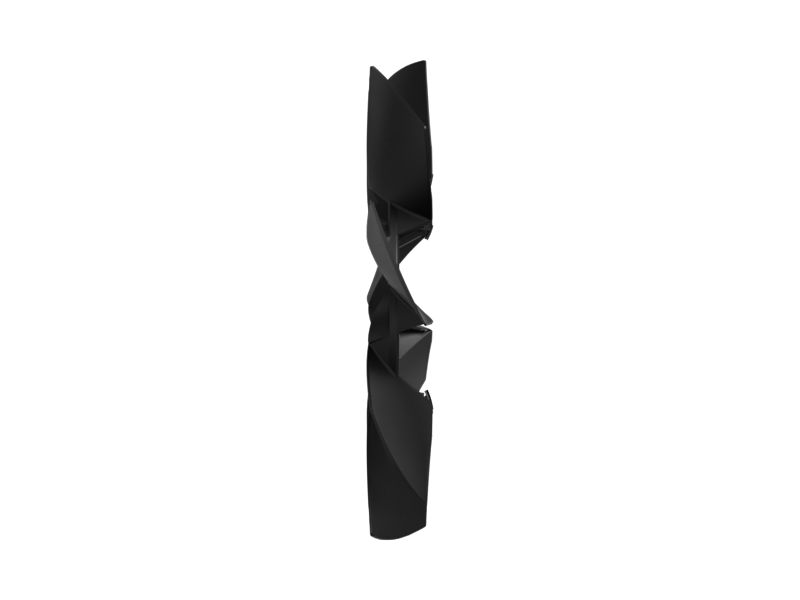

613-2227: Engine Radiator

The Radiator Cooling Fan for the engine cooling unit is responsible for regulating the temperature within the engine bay mounted directly behind the radiator, it works by drawing air through the radiator fins, facilitating heat exchange to dissipate excess heat generated during engine operation. This fan function helps prevent overheating, which leads to engine damage and performance issues. The fan's operation is controlled by a thermostat and engine management unit, activating when the engine reaches a temperature threshold.

Attributes:
• All blades must be smooth, free from any burr.
• Maximum static unbalance of the finished fan 30 grams per centimeter.
• Low noise emission for minimal disturbance.
• Aerodynamic fan blades for maximum airflow.

Applications:
The Radiator Cooling Fan is positioned directly behind the radiator in the engine compartment to manage engine temperature and its purpose is to draw air through the radiator, facilitating heat exchange to dissipate excess heat generated during engine operation.

• Outer Diameter (mm): 410

• Outer Diameter (in): 16.14

• Width (mm): 55

• Width (in): 2.17

• Weight (kg): 0.1

• Weight (lb): 0.21

• Material: Carbon Steel,Polyamide Plastic
