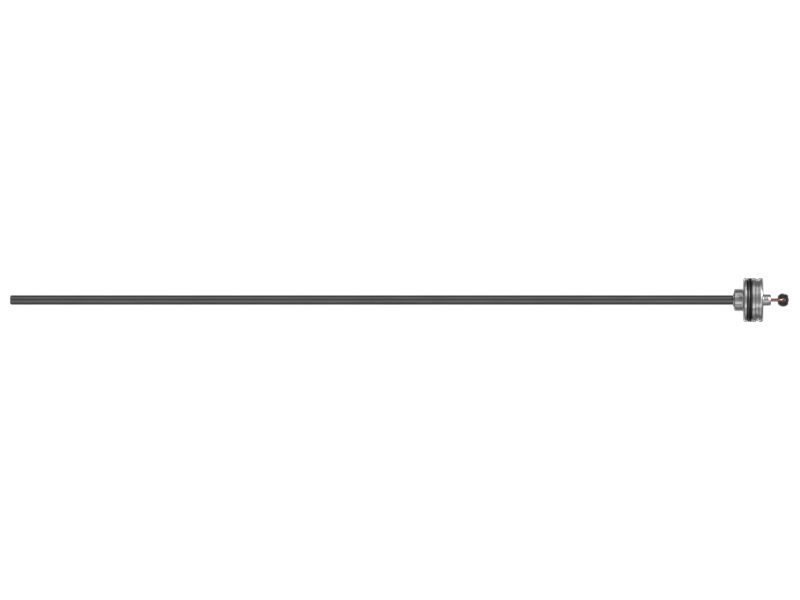

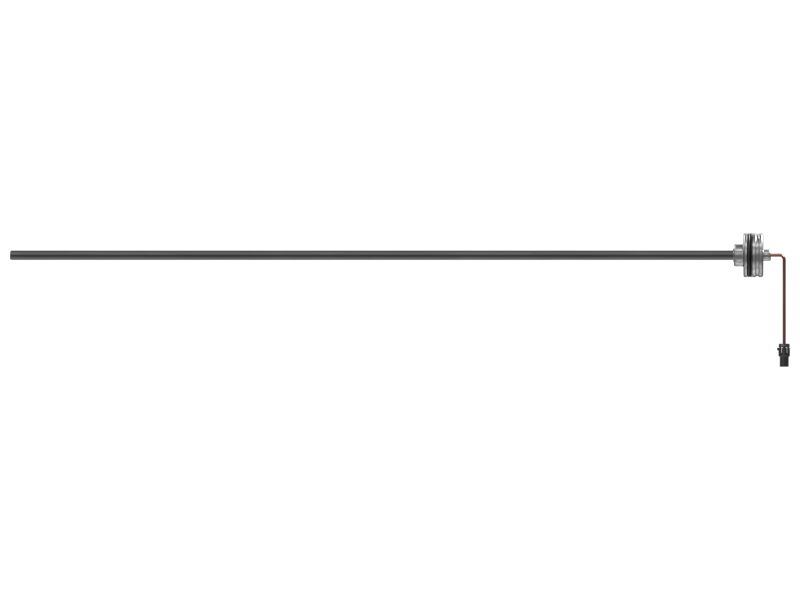

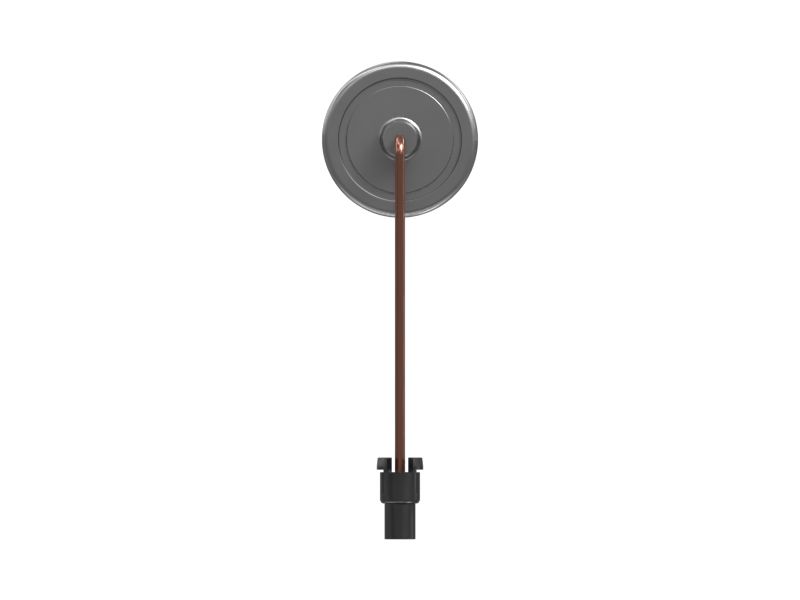

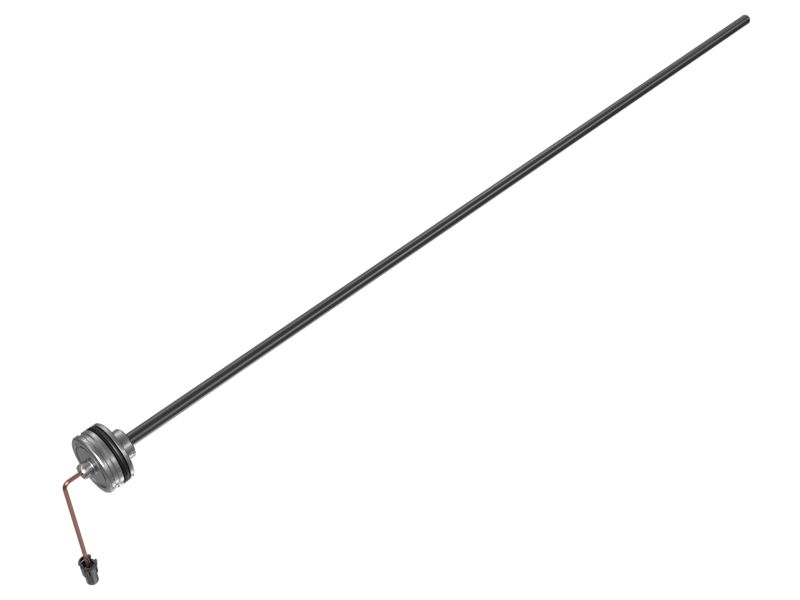

611-7016: Tilt Cylinder Linear Position Sensor

The Tilt Cylinder Linear Position Sensor accurately detects the linear position changes of the tilt cylinder. This sensor translates physical movement into electrical signals, which are required for monitoring and controlling the tilt angle of equipment attachments. By continuously sending feedback to the equipment's control system, it enables accurate adjustments during operation, optimizing performance and safety.

Attributes:
• Provides real-time data on cylinder position.
• Enables efficient equipment control and operation.
• Ensures safety by preventing over-tilting.

Applications:
The Tilt Cylinder Liner Position Sensor is located within the hydraulic tilt cylinder assembly, and it detects the linear position of the tilt cylinder to enable accurate control over the tilt angle during equipment operations.

• Weight (kg): 0.5

• Weight (lb): 1.102

• Temperature (°C): -40°C to 120°C

• Temperature (°F): -40°F to 248°F

• Voltage (volts): 11

• Sensor Type: Magnetostrictive

• Frequency (Hz): 500

• Current (Amps): 0.143

• Material: Stainless Steel
