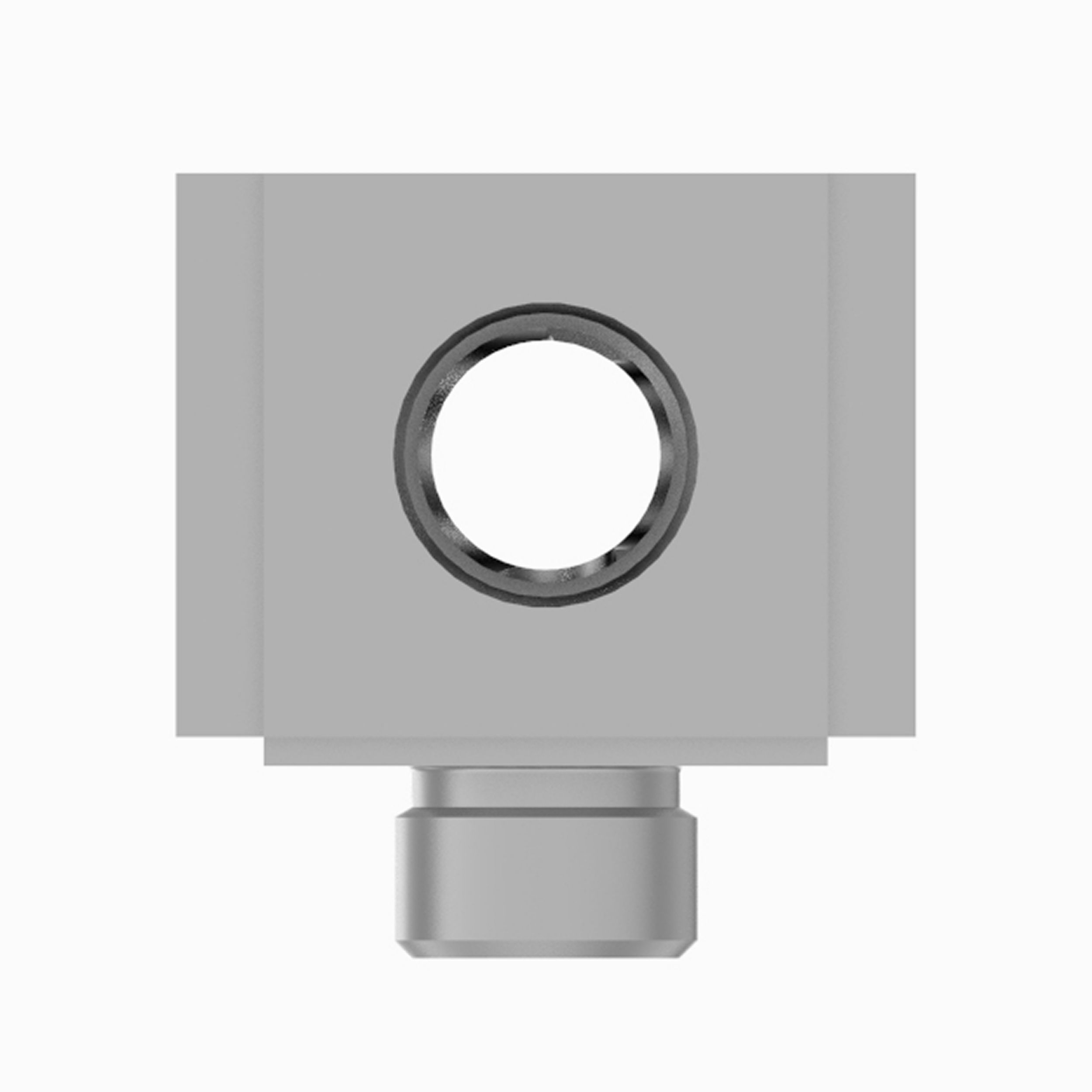

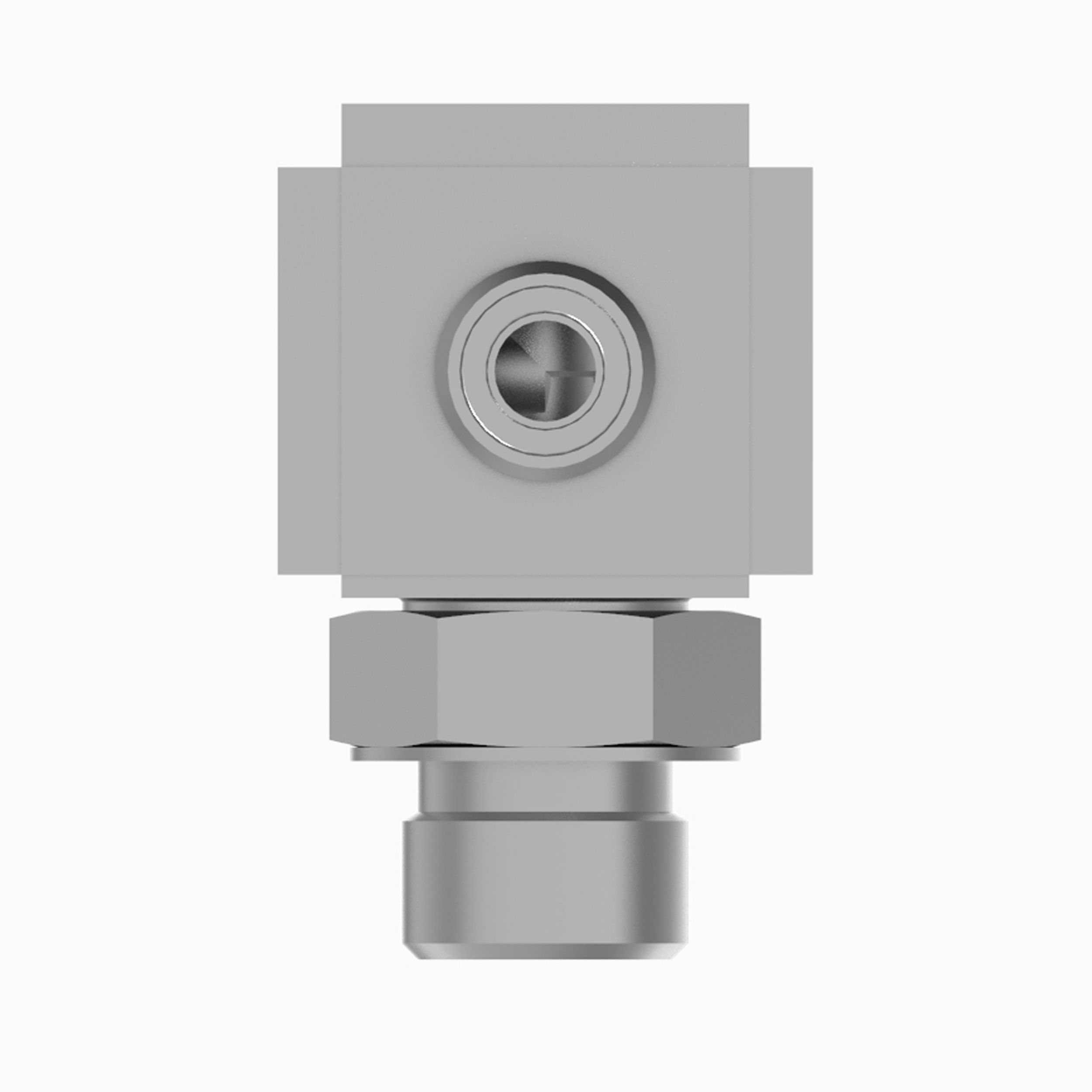

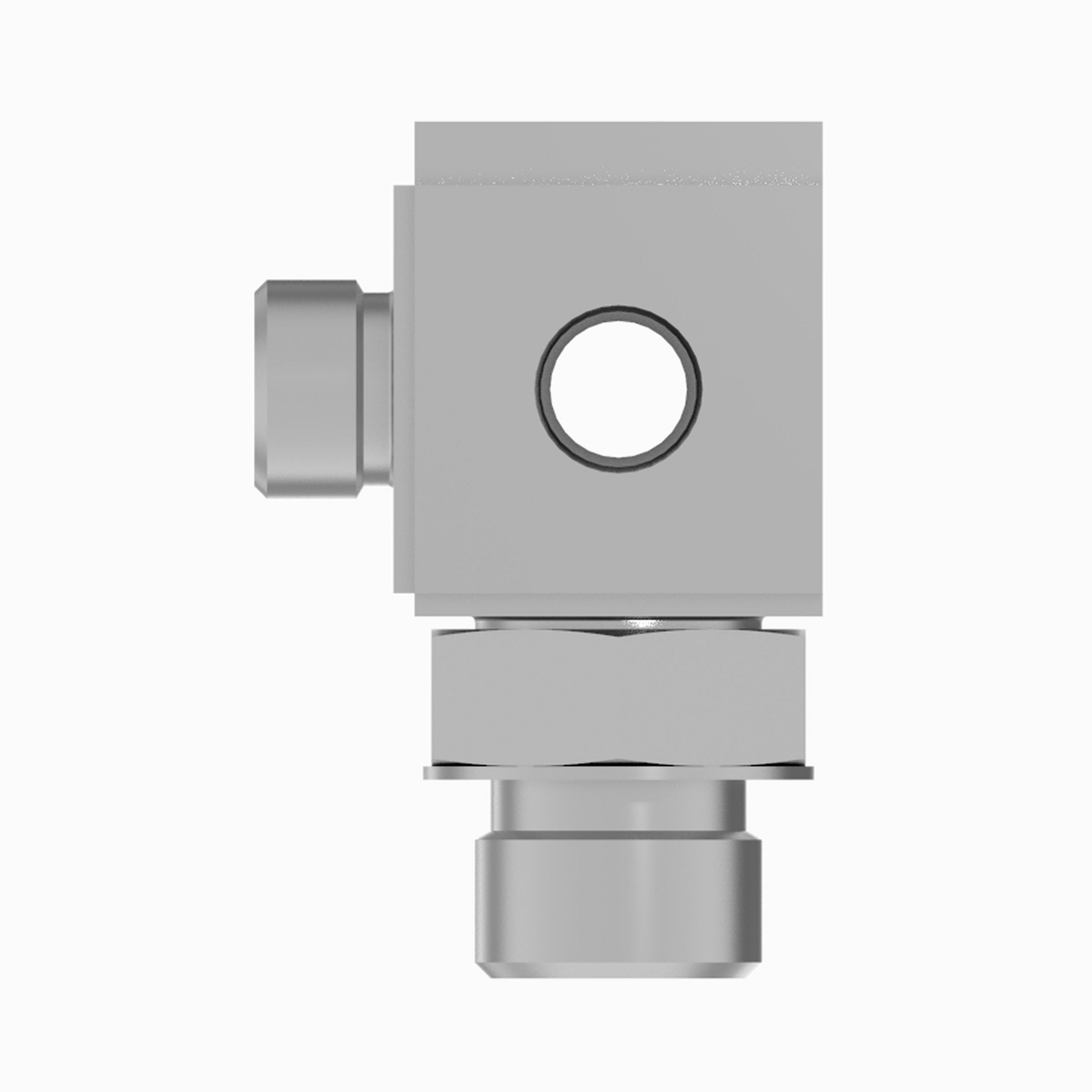

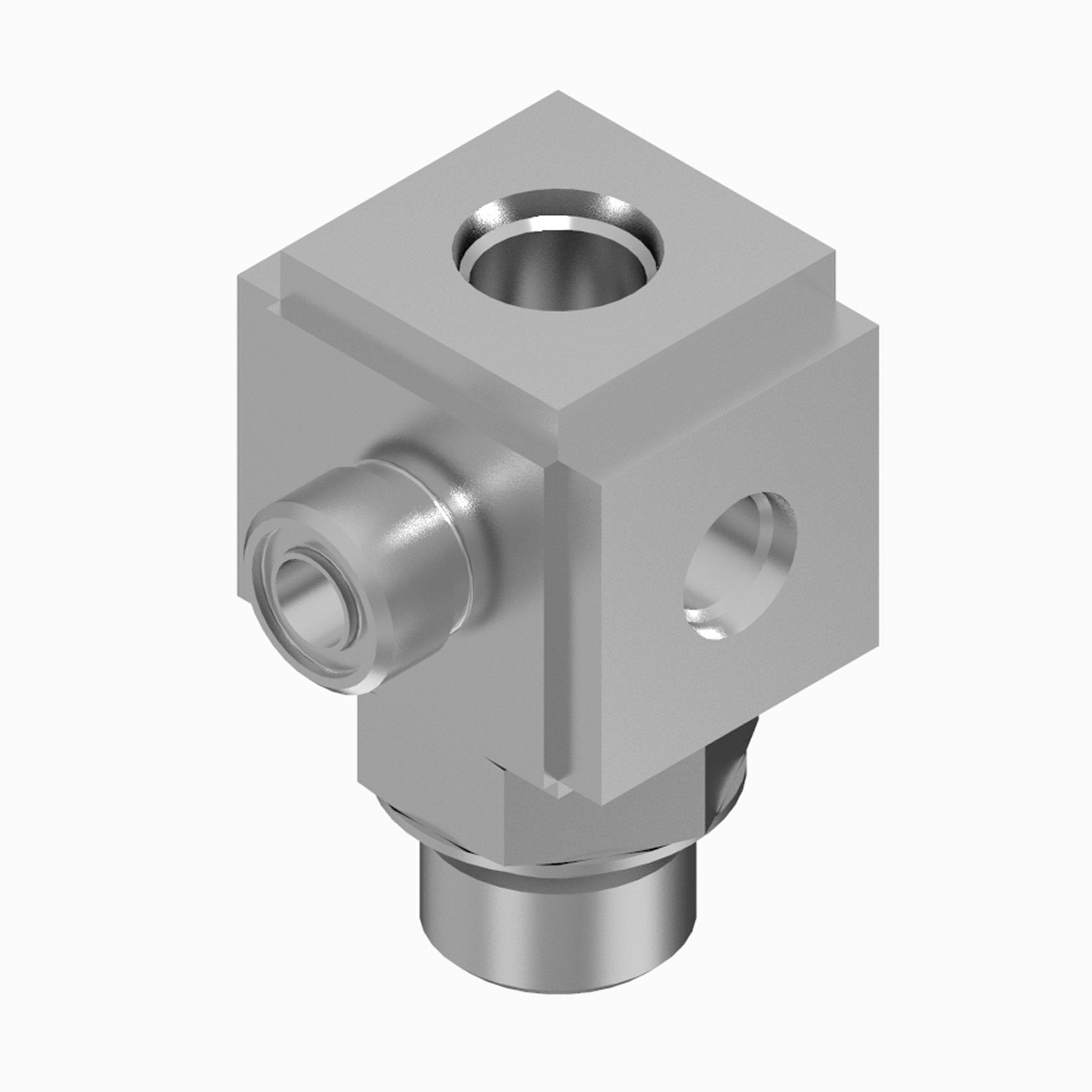

611-2331: Adapter

Description:
Cat® Adapters are held to the highest standards of quality and reliability. These adapters are manufactured to exacting tolerances to ensure leak free connections. Each Cat Fluid Carrying Adapter is designed to meet or exceed industry standards for operating pressure, assembly torque capability, and corrosion protection to ensure a long life and proper machine functionality. Fluid carrying component. They are designed to meet or exceed the performance of industry standard parts and provide leak free connections. Adapter construction may differ slightly from the image depicted, but the part is designed to be interchangeable with the OEM part.

Port Thread Details
Thread Size IN - TPI IN : 13/16 - 16
Thread Size IN - TPI IN : 9/16 - 18
Thread Size IN - TPI IN : 1 - 1/16 - 12
Thread Size IN - TPI IN : 3/4 - 16 (2x)

Application:
Cat® Adapters are designed to connect fluid carrying hoses and tubes to other system components. Consult your owner’s manual or contact your local Cat Dealer for more information.

• Length (mm): 80

• Length (in): 3.15

• Height (mm): 50

• Height (in): 1.97

• Width (mm): 53.1

• Width (in): 2.1

• Hex Size (mm): 34.93

• Hex Size (in): 1.38

• Material: O-Ring Face Seal Connector,Carbon Steel

• Weight (kg): 0.76

• Weight (lb): 1.66
