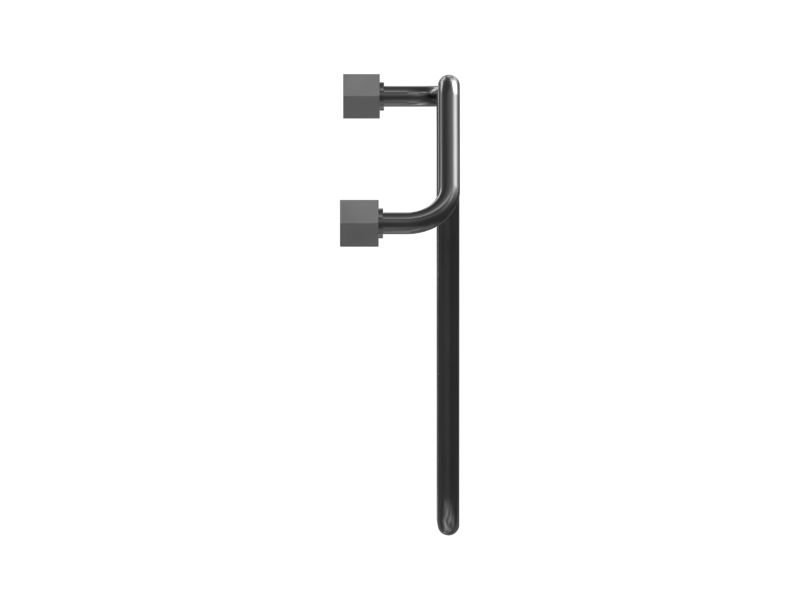

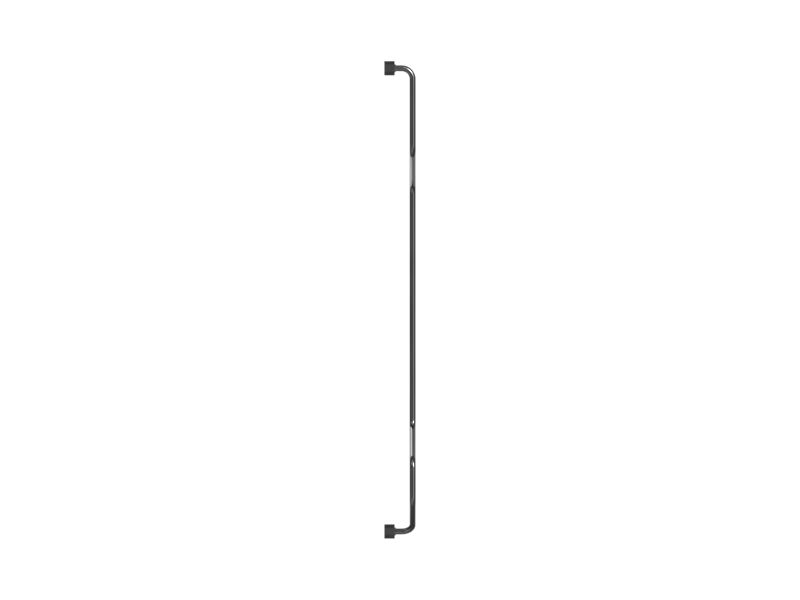

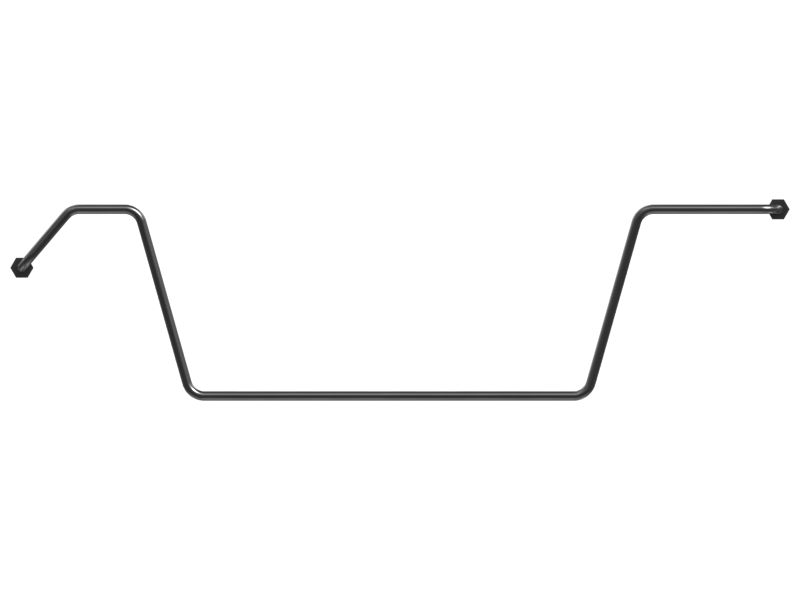

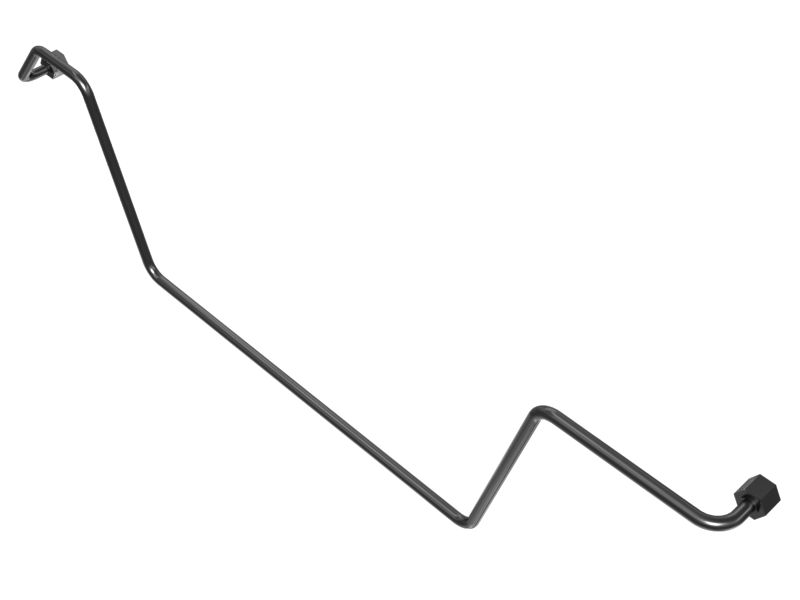

610-3517: 6.22mm Inner Diameter Hydraulic Lines Tube

The Hydraulic Lines Tube serves as a conduit, linking the canopy lift cylinder directly to the hydraulic pump, this tube enables the seamless transfer of pressurized hydraulic fluid from the pump to the lift cylinder by doing so, it facilitates the accurate control and operation of the equipment's canopy lifting mechanism, allowing operators to adjust the canopy position efficiently and safely as needed.

Attributes:
• Provides leak-proof connections.
• Resilience to vibration and pressure fluctuations.
• Smooth inner surface for optimal flow.

Applications:
The Hydraulic Lines Tube is positioned between the canopy lift cylinder and the hydraulic pump to ensure efficient transmission of hydraulic fluid, enabling accurate control over the canopy's lifting mechanism.

• Weight (kg): 0.43

• Weight (lb): 0.944

• Inner Diameter (mm): 6.22

• Inner Diameter (in): 0.25

• Outer Diameter (mm): 9.52

• Outer Diameter (in): 0.38

• Radial Thickness (mm): 1.65

• Working Pressure (kPa): 7000

• Working Pressure (psi): 1015.27

• Material: Alloy Mixed
