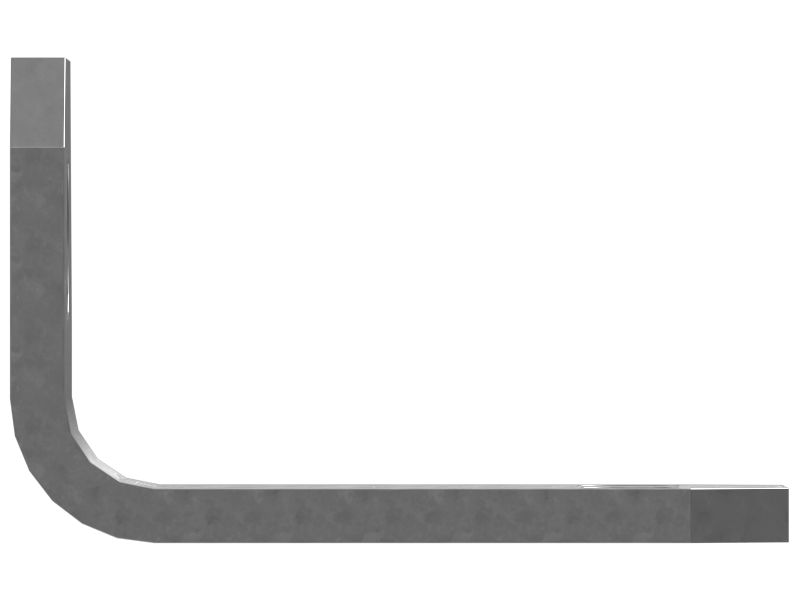

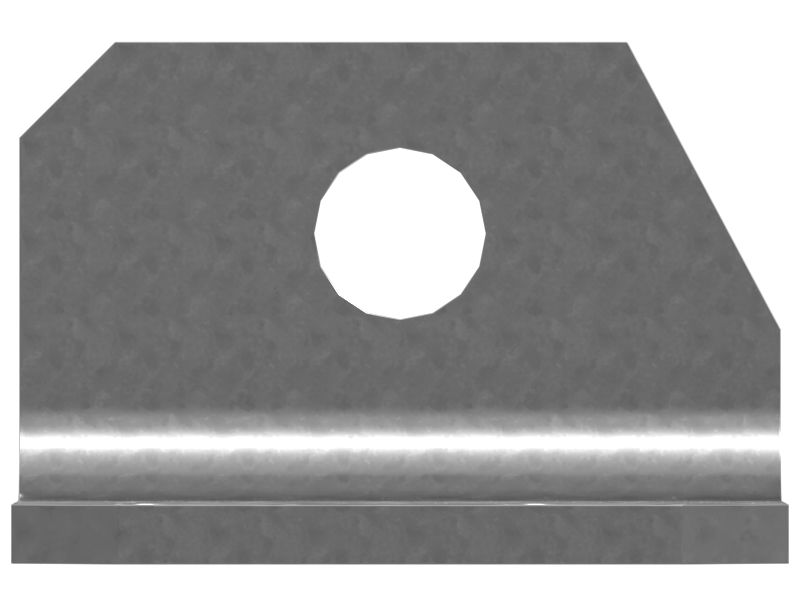

610-3308: Swing Drive Hydraulic Oil Level Gauge Support

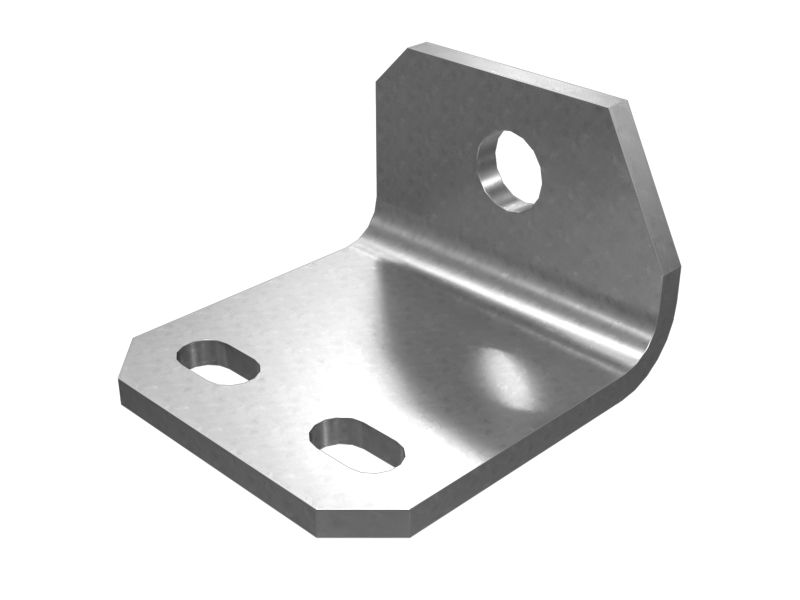

A Swing Drive Hydraulic Oil Level Gauge Support is attached to the swing drive assembly, supporting the gauge guide pipe of the hydraulic oil level gauge assembly. It is a bent part fitted with the swing drive along with the help of fasteners, providing a mounting point for the U-bolt clamp that is intended to secure the guide pipe of the oil level gauge assembly. It is made of durable material to withstand the loads and stresses that are encountered during operation.

Attributes:
• Withstands vibrations and shocks, ensuring a stable connection even in demanding working conditions

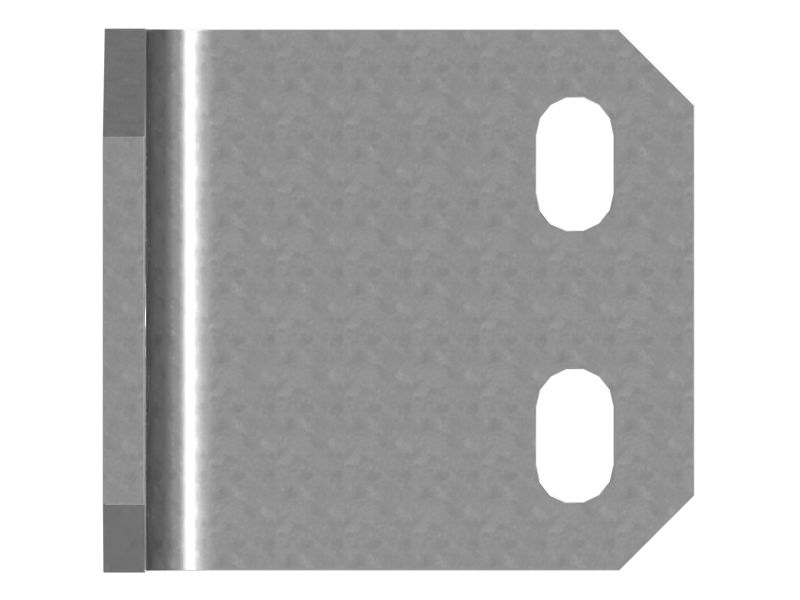

• Provided with 2 mounting holes to attach the U-bolt clamp to the support using M10 fasteners

Applications:
A Swing Drive Hydraulic Oil Level Gauge Support is used to hold and secure the hydraulic oil level gauge guide pipe in the swing drive with the help of a U-bolt clamp and other fasteners, preventing any unwanted movement or interference during machine operation. It ensures proper position and alignment of the pipe for proper measurement of the oil level.

• Material: Structural Steel
