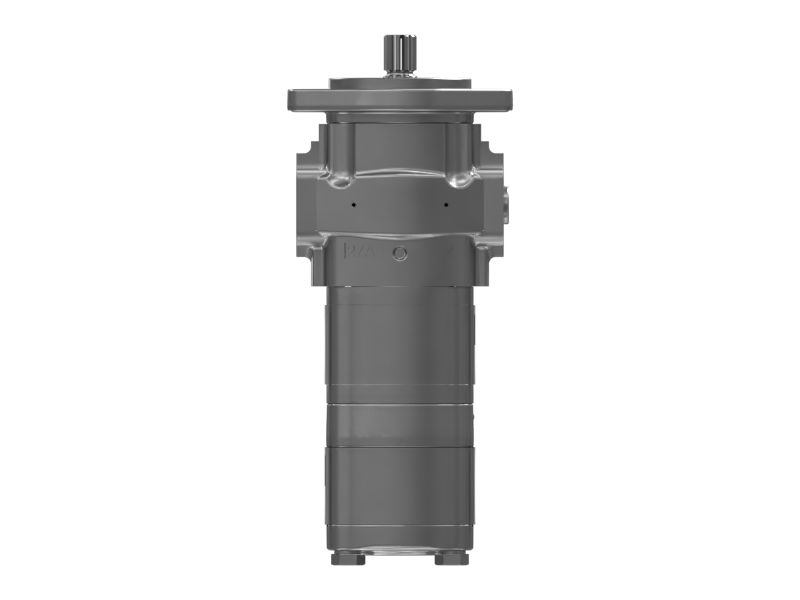

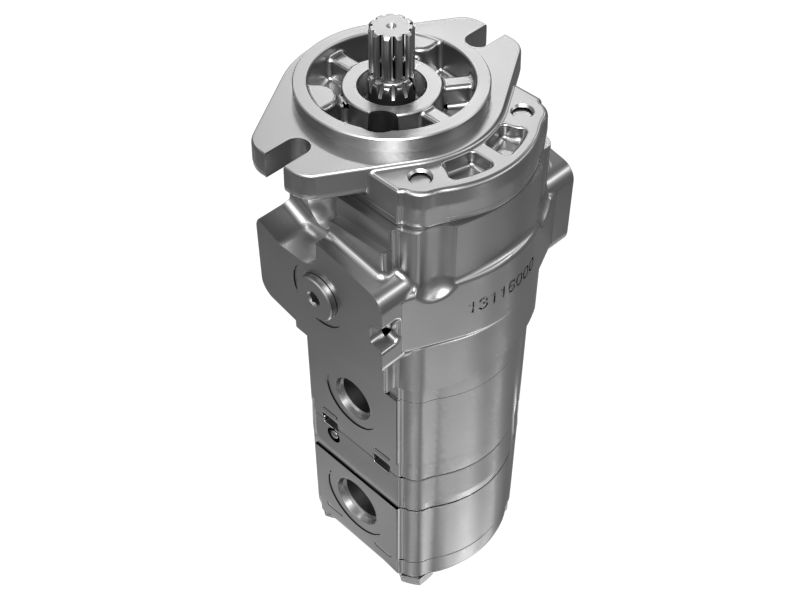

609-8314: Charge Gear Pump

The Charge Gear Pump is a three-section pump that provides boost charge, transmission lubrication, and special sealing. The gear pump has a displacement of 33.03 cc/rev, a maximum continuous pressure of 25000 kPa, and a maximum intermittent pressure of 28000 kPa. The pump has a minimum speed of 600 RPM and a maximum speed of 2500 RPM. The pump's operating temperature range is -25°C to 80°C. The pump has an NBR seal and can handle fluids with viscosities ranging from 12 to 100 CST. It is made up of strong and durable materials, such as plastic and aluminum, to ensure strength and withstand high operating conditions.

Attributes:
• Provided with corrosion resistance and can withstand exposure to harsh environments
• Manufactured to precise specifications and are built for durability and reliability

Applications:
The Charge Gear Pump helps to increase engine power and performance by providing a higher volume of boost charge.

• Overall Length (mm): 306.98

• Overall Length (in): 12.09

• Overall Width (mm): 130.7

• Overall Width (in): 5.15

• Overall Height (mm): 117.98

• Overall Height (in): 4.64

• Operating Temperature: -25° C to 80° C

• Material: Carbon Steel
