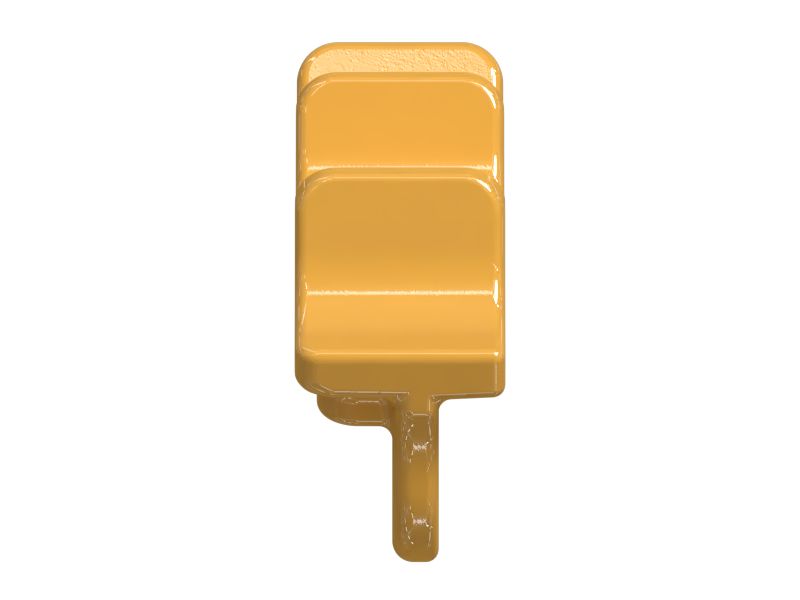

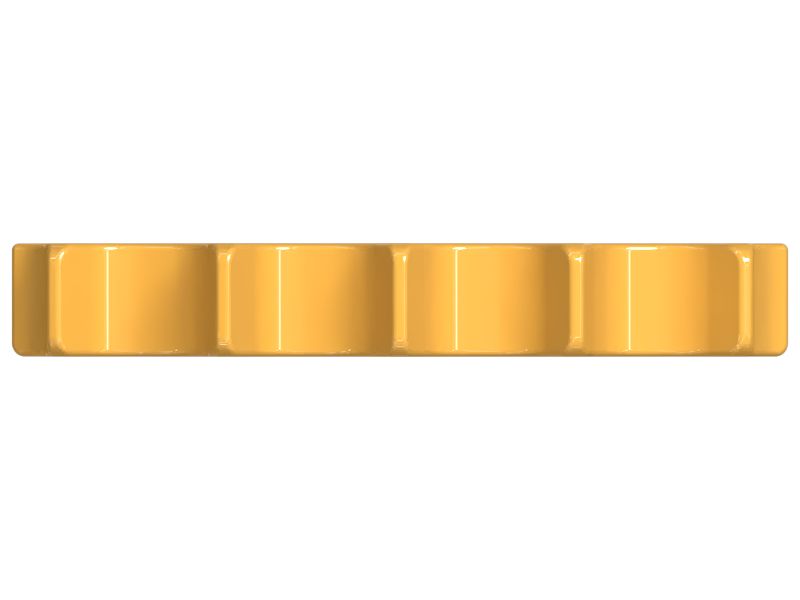

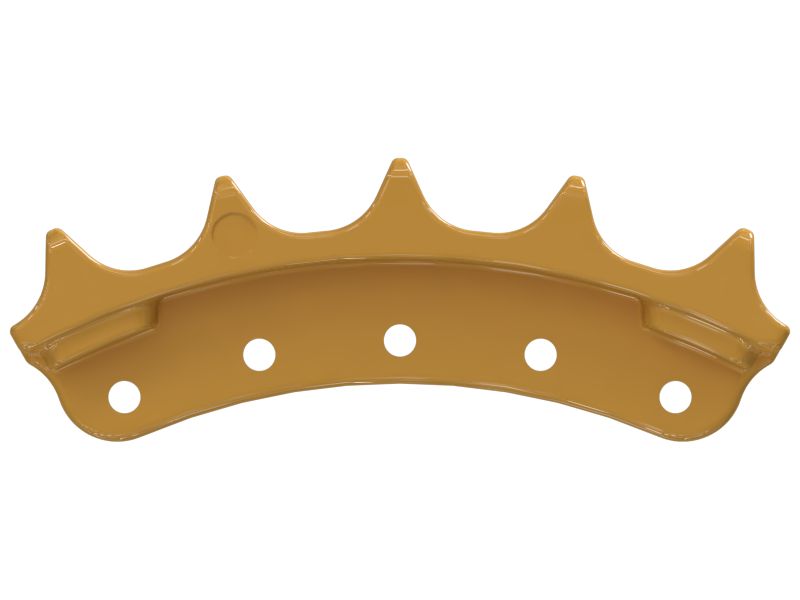

609-3874: 5-Tooth Sprocket Segment

The Sprocket Segment serves to drive and maintain track tension, segment meshes with the track links, transferring power from the drive system to propel the equipment forward and backward. It ensures smooth engagement with the track and facilitates efficient power transmission, maintaining optimal performance in different terrain conditions. Distributing load evenly across the track enhances durability and minimizes wear, thereby extending the operational life of the equipment.

Attributes:
• Facilitates smooth power transmission.
• Distributes load evenly across the track.
• Maintains optimal track tension.
• Enhances durability and reduces wear.

Applications:
The Sprocket Segment engages with the track links to efficiently transfer power from the drive system, ensuring smooth propulsion in diverse terrain conditions.

• Bolt Circle Radius (mm): 309

• Inner Radius (mm): 290

• Packing Offset Radius (mm): 387

• Pitch Circle Radius (mm): 386.44

• Sound Segment: No

• Relieved: No

• Track Pitch (mm): 155.58

• Material Type: Plain Steel

• Number of Sprocket Bolts: 5

• Material: Boron Steel,Carbon Steel

• Number of Sprocket Teeth: 5

• Bolt Thread Size: 0.5
