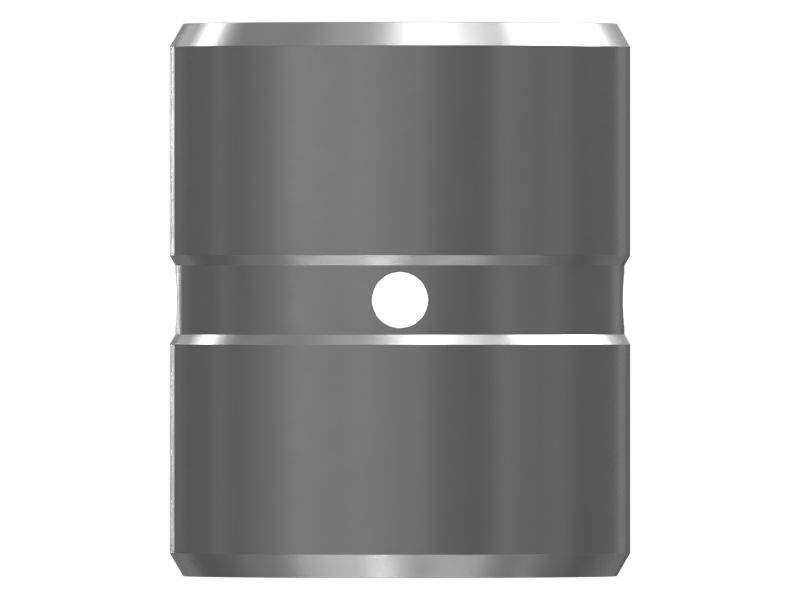

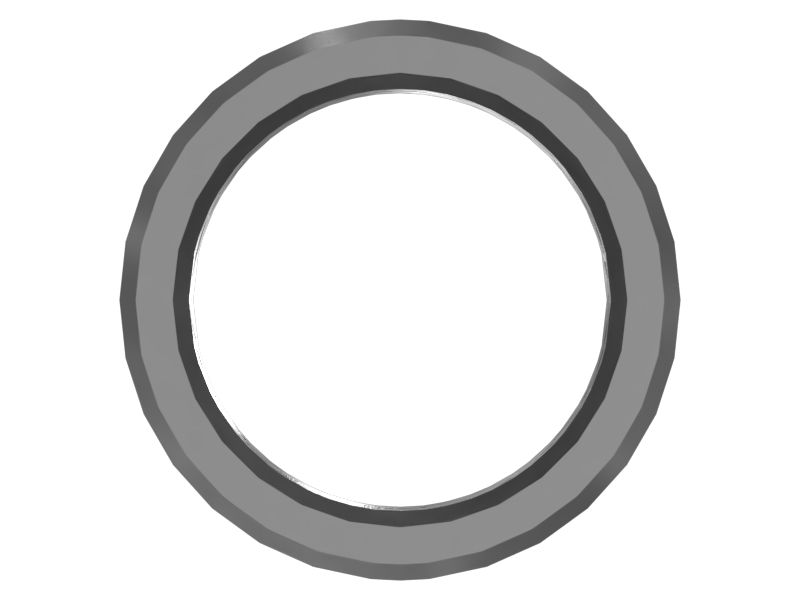

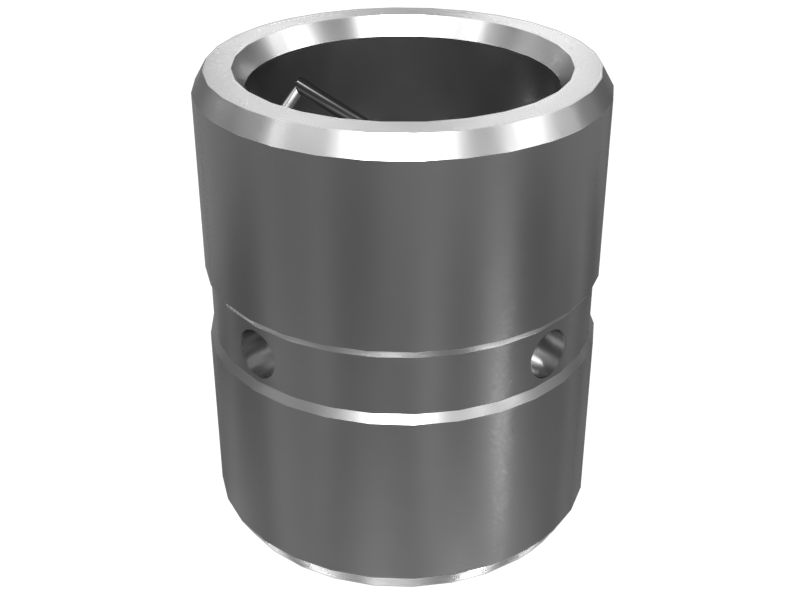

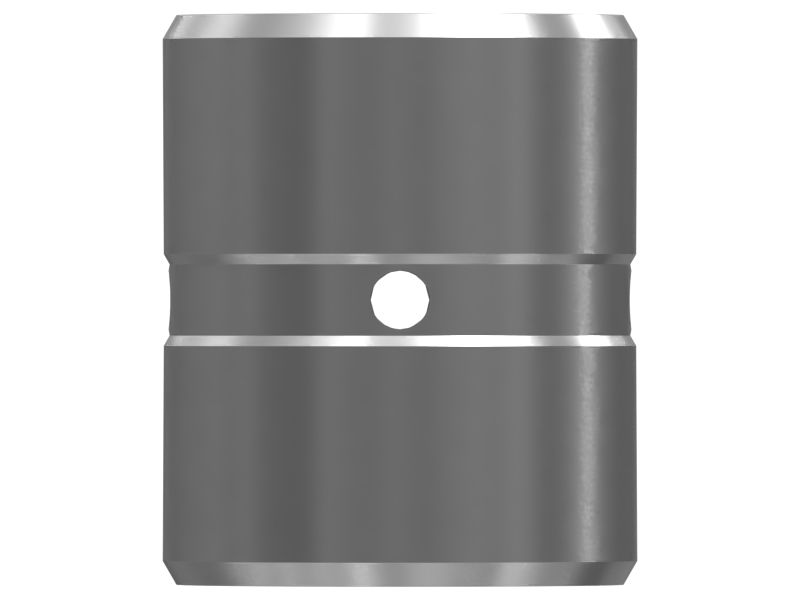

607-9703: 30.1mm Inner Diameter Oil Groove Sleeve Bearing

An Oil Groove Sleeve Bearing with a helical groove is used in a bucket cylinder consisting of a cylindrical sleeve with specially designed grooves cut into the inner surface. The grooves are typically in the form of spiral channels that act as reservoirs to hold lubrication oil. As the bearing rotates, the groove picks up oil from the reservoirs and distributes it evenly along the bearing surface.

Attributes:
Reduces risk of bearing damage due to temperature fluctuations
Provides better resistance to fatigue failure
Provides excellent resistance to static and dynamic loading conditions

Applications:
An Oil Groove Sleeve Bearing with Bucket Cylinder is used to facilitate smooth movement and reduces friction between the rod and surrounding structure with grooves that enable effective lubrication, heat dissipation, and load distribution, this is mostly used in Cat® 303, 303.5C, 303.5D, 303.5E, 303C, 303E, 304, 304C, 304D, 304E, 305, 305.5D, 305.5E, 305C, 305D and 305E Excavators, 414E, 415, 415F, 416, 416B, 416C, 416D, 416E, 416F, 420, 420D, 420E, 420F, 422E, 422F, 424, 424D, 426, 426B, 426C, 426F, 427F, 428, 428B, 428C, 428D, 428E, 428F, 430, 430D, 430E, 430F, 432, 432D, 432E, 432F, 434, 434E, 434F, 436B, 436C, 438B, 438C, 438D, 440, 442D, 442E, 442F, 444, 444E, 444F, 446B, 446C, 446D, 450, 450E and 450F Backhoe, 440, 55 and D4C Track Type Tractor, 910, 910K, 910M, 914, 914K, 914M, 918M, 920 and 920K Wheel Loader, BH150 and BH160 Work Tools.

• Inner Diameter (in): 1.18

• Inner Diameter (mm): 30.1

• Outer Diameter (in): 1.57

• Outer Diameter (mm): 40

• Weight (kg): 0.19

• Weight (lb): 0.42

• Width (in): 1.88

• Width (mm): 48

• Material: Carbon Steel
