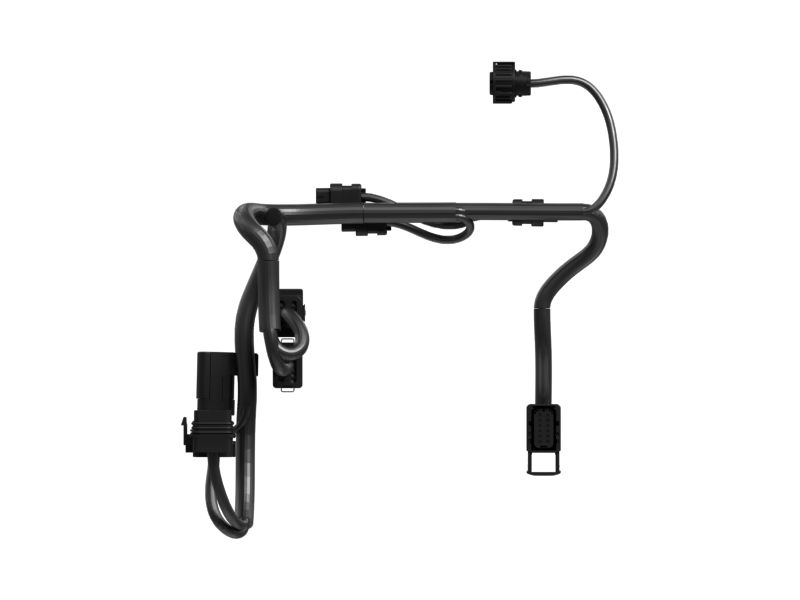

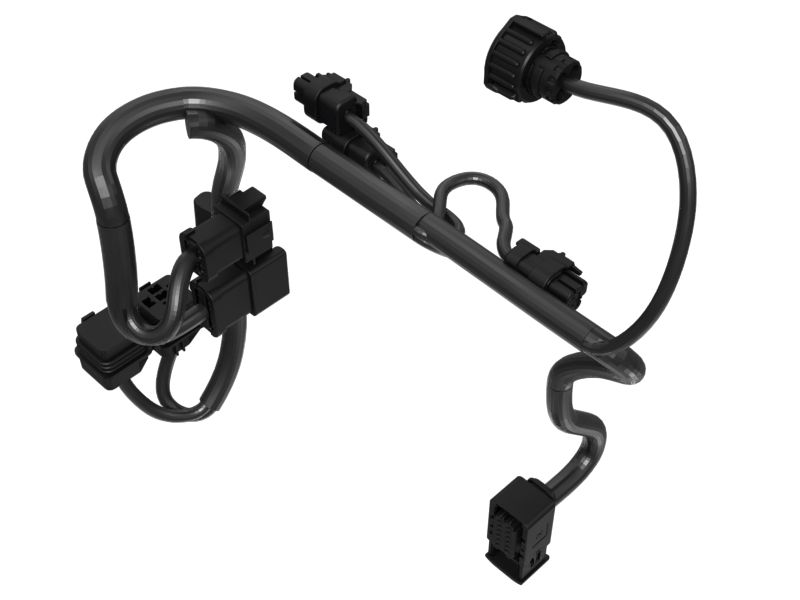

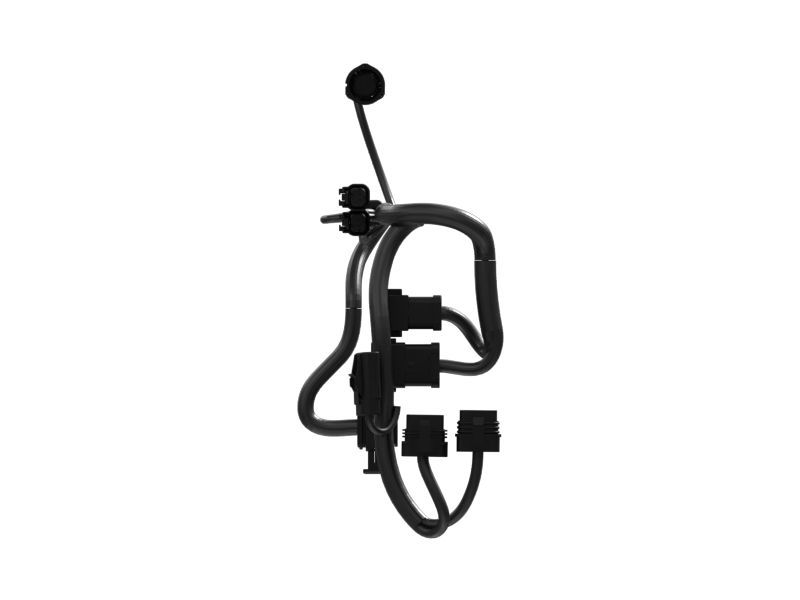

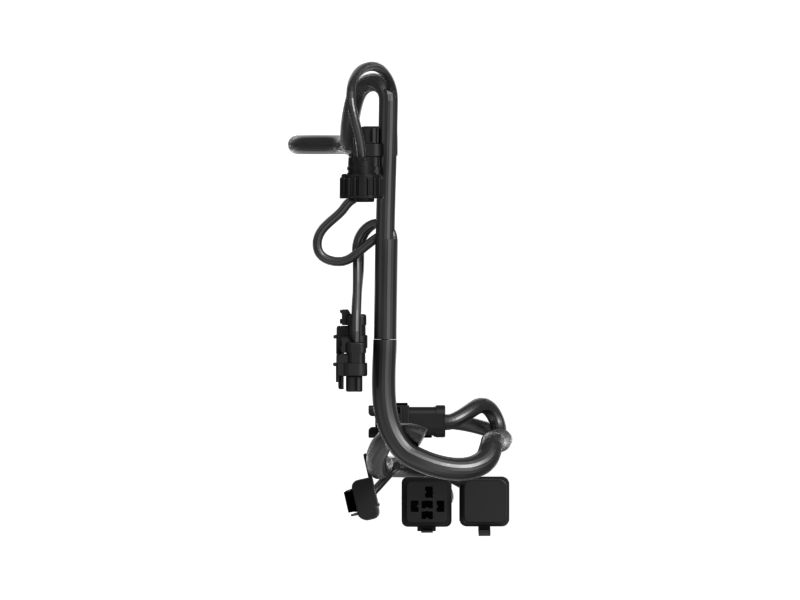

607-5048: Engine Wiring harness

The Transmission Planetary Gear is used to transmit power from the drive shaft to the wheels of the equipment, it achieves this by employing a system of interlocking gears, including sun gears, planet gears, and ring gears. As power is transferred from the transmission to the input shaft of the final drive, the sun gear rotates, causing the planet's gears to orbit around it. Simultaneously, the planet gears mesh with the internal teeth of the ring gear, which is connected to the equipment's drive wheels. This interaction results in a reduction in rotational speed and an increase in torque, effectively multiplying the power output to the drive wheels.

Attributes:
• High torque capacity for efficient power transmission.
• Accurate gear meshing for enhanced efficiency.
• Resistance to vibration and torsional stress.
• Distributes torque evenly across multiple gear teeth.
• Support for bi-directional rotation.

Applications:
The Transmission Planetary Gear is situated at the hub of the transmission to transmit torque from the drive shaft to the wheels and tracks of the equipment to ensure smooth operation.

• Connector Pin Count: 16

• Weight (kg): 0.63

• Weight (lb): 1.4
