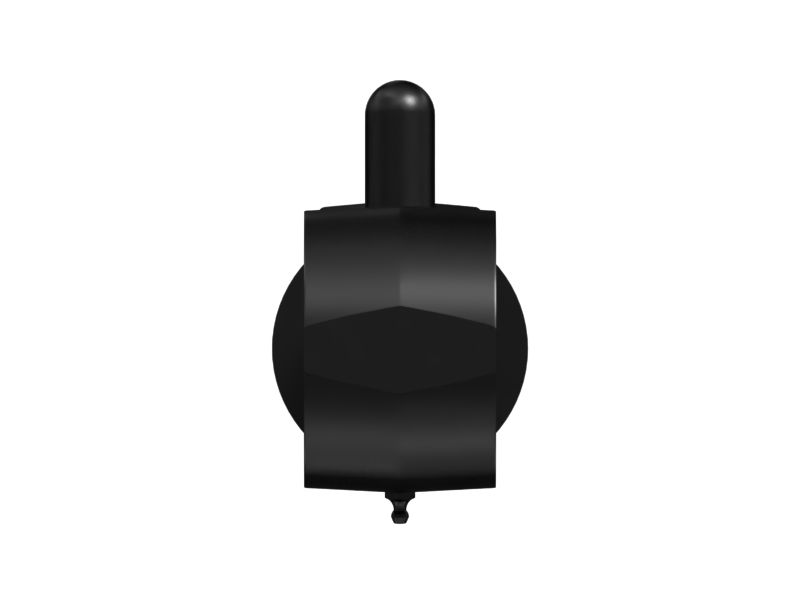

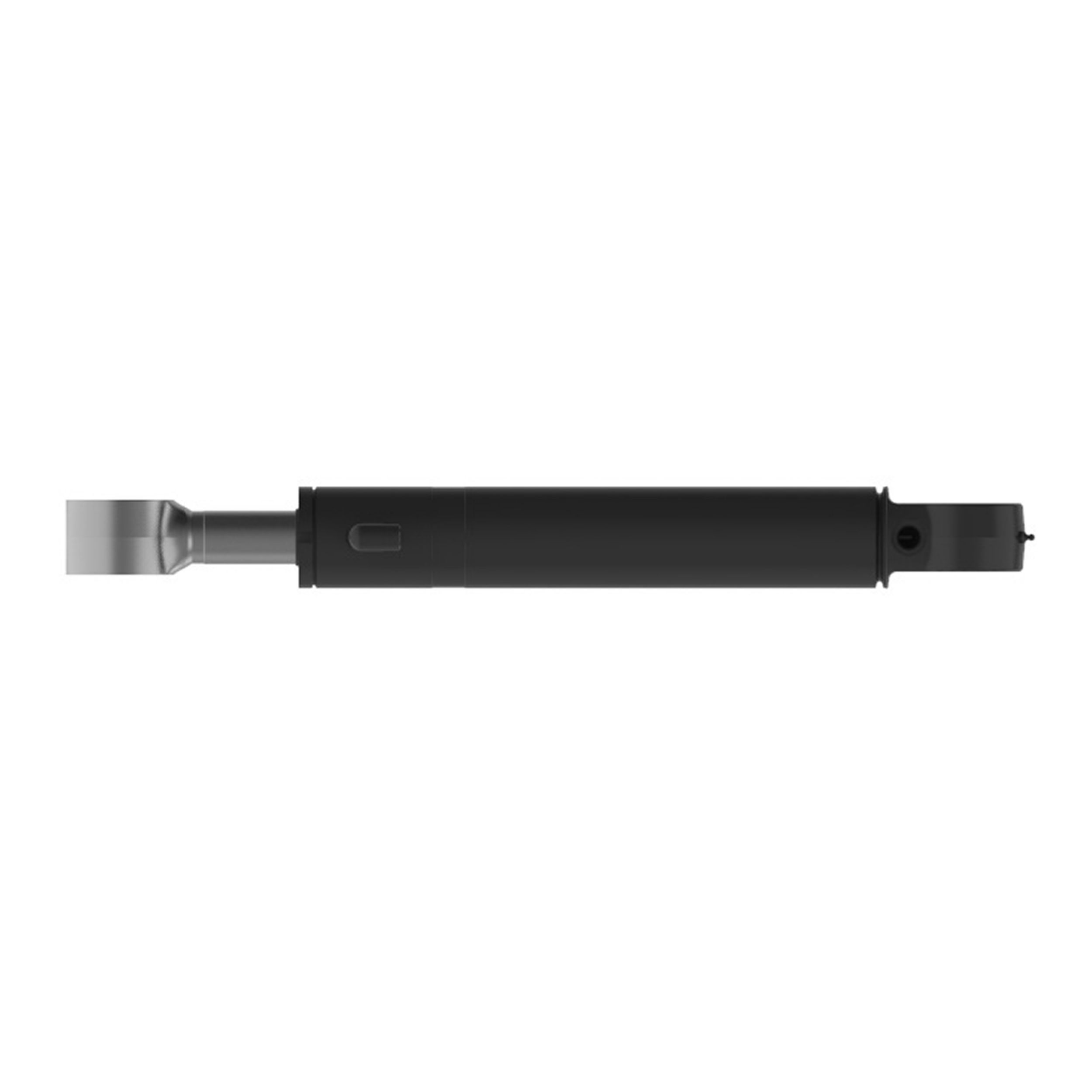

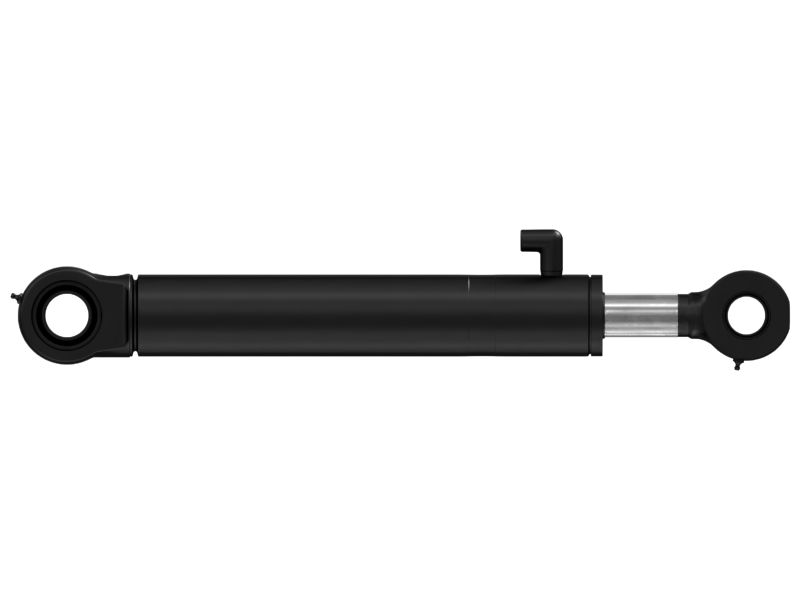

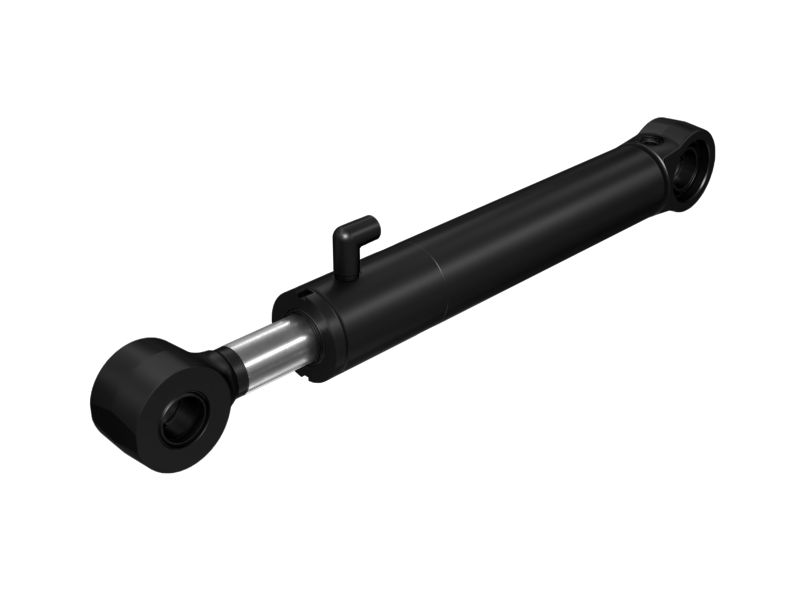

606-8455: Cylinder Group

Description:
Cat® Cylinder Groups, designed for your rugged work environment, are double acting cylinders in which the working fluid acts alternatively on both sides of the piston. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications. Cat® Hydraulic cylinder groups actuate numerous machine components ranging from steering controls to refined movement of blades, buckets or other attachments. Cat® Hydraulic cylinder groups consist of tube and rod assemblies that are ready for installation on a machine.

Stroke Length : 398.5 mm (15.689 in)
Closed Length : 790 mm (31.102 in)
Open Length : 1188.5 mm (46.791 in)
Port Thread Size - TPI - A in : 1 - 14 UNS - 2A (ORFS)
Port Thread Size - TPI - B in : 7/8 - 14 UNS - 2B
Test Pressure : 35000 kPa (5076 psi)

Application:
Cat® Hydraulic Cylinder Groups are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 956

• Overall Length (in): 37.64

• Overall Height (mm): 97

• Overall Height (in): 3.82

• Overall Width (mm): 164

• Overall Width (in): 6.46

• Bore Diameter (mm): 80

• Bore Diameter (in): 3.15

• Rod Diameter (mm): 50

• Rod Diameter (in): 1.97

• Body Diameter (mm): 95

• Body Diameter (in): 3.75

• Material: Steel,Carbon Steel,Sealants / Adhesives Adhesive

• Weight (kg): 29.51

• Weight (lb): 65.06
