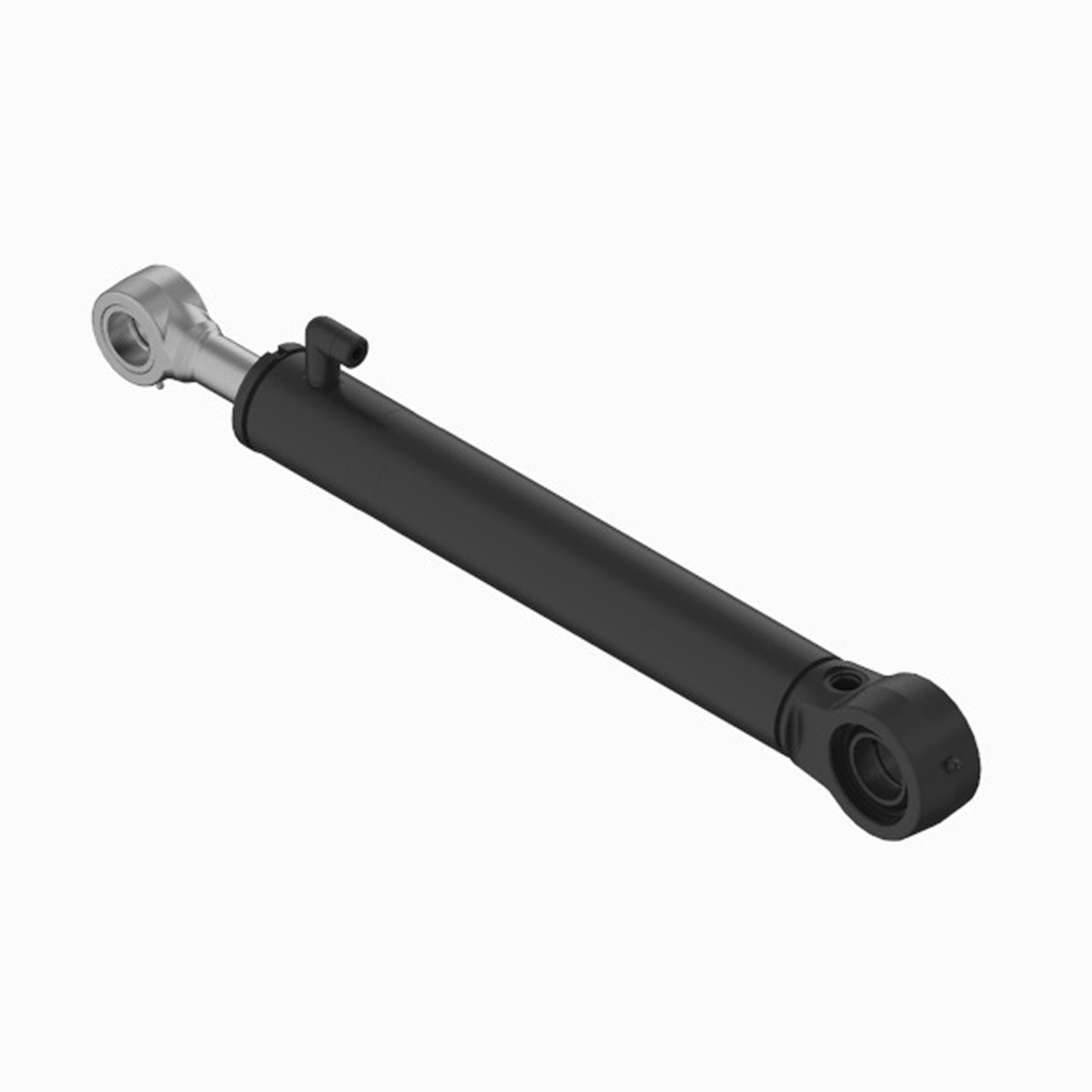

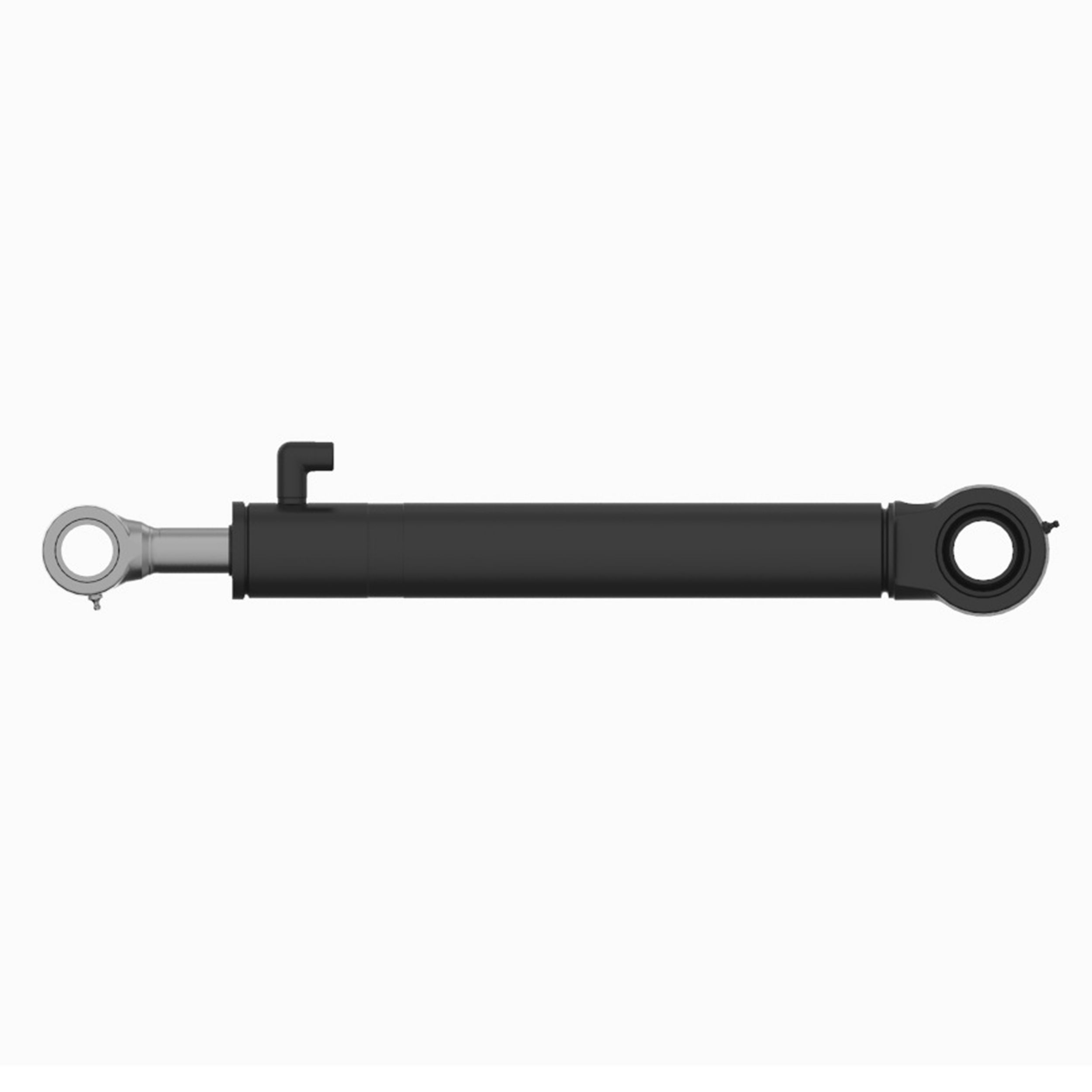

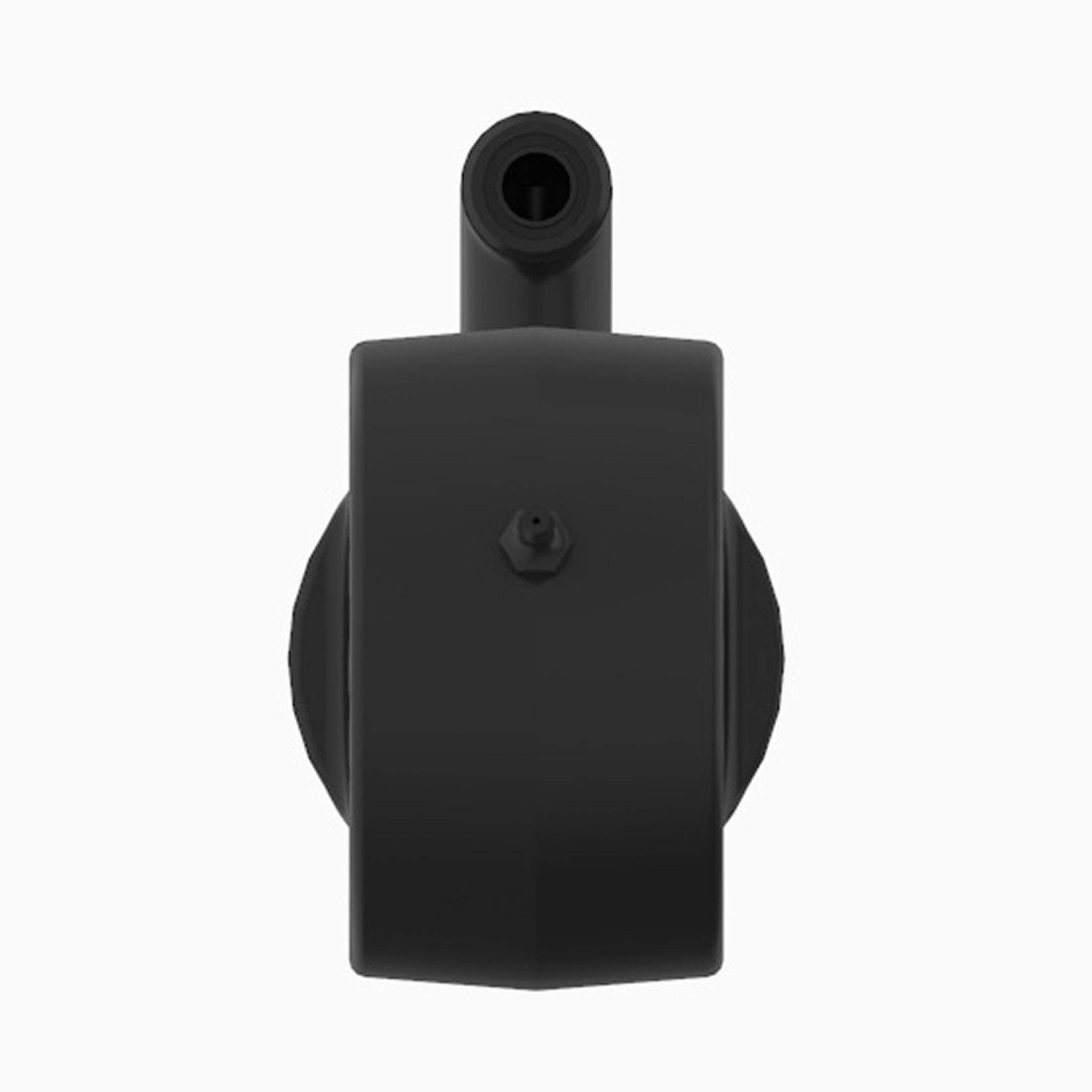

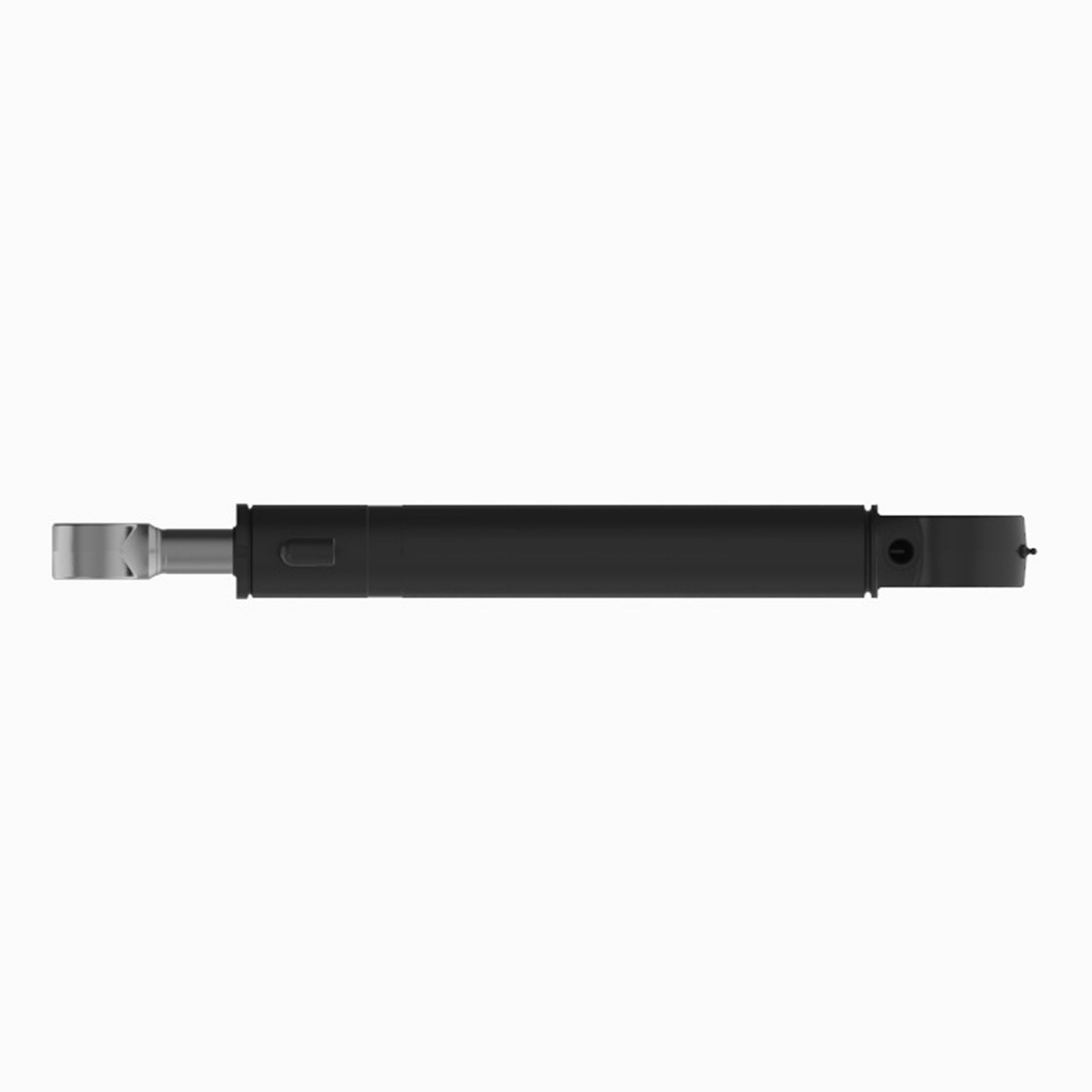

606-8454: Cylinder Group

Description:
Cat® Cylinder Groups, designed for your rugged work environment, are double acting cylinders in which the working fluid acts alternatively on both sides of the piston. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications. Cat® Hydraulic cylinder groups actuate numerous machine components ranging from steering controls to refined movement of blades, buckets or other attachments. Cat® Hydraulic cylinder groups consist of tube and rod assemblies that are ready for installation on a machine.

Stroke Length : 438.5 mm (17.264 in)
Closed Length : 770 mm (30.315 in)
Open Length : 1208.5 mm (47.578 in)
Port Thread Size - TPI - A inch : 1 - 14 UNS - 2A
Port Thread Size - TPI - B inch : 7/8 - 14 UNS - 2B
Test Pressure : 35000 kPa (5076 psi)

Application:
Cat® Hydraulic Cylinder Groups are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 875

• Overall Length (in): 34.45

• Overall Height (mm): 85

• Overall Height (in): 3.35

• Overall Width (mm): 151

• Overall Width (in): 5.95

• Bore Diameter (mm): 70

• Bore Diameter (in): 2.76

• Rod Diameter (mm): 40

• Rod Diameter (in): 1.58

• Body Diameter (mm): 82.5

• Body Diameter (in): 3.25

• Material: Steel,Sealants / Adhesives Adhesive,Carbon Steel

• Weight (kg): 20.63

• Weight (lb): 45.49
