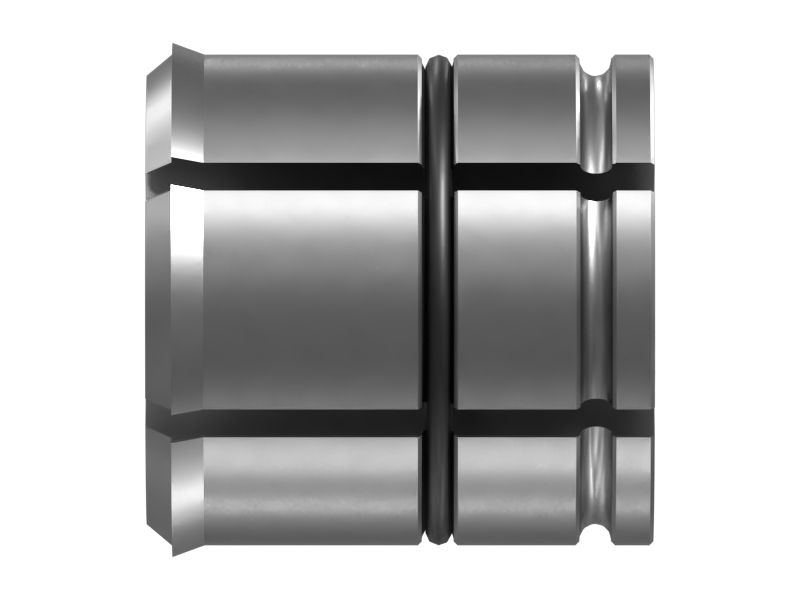

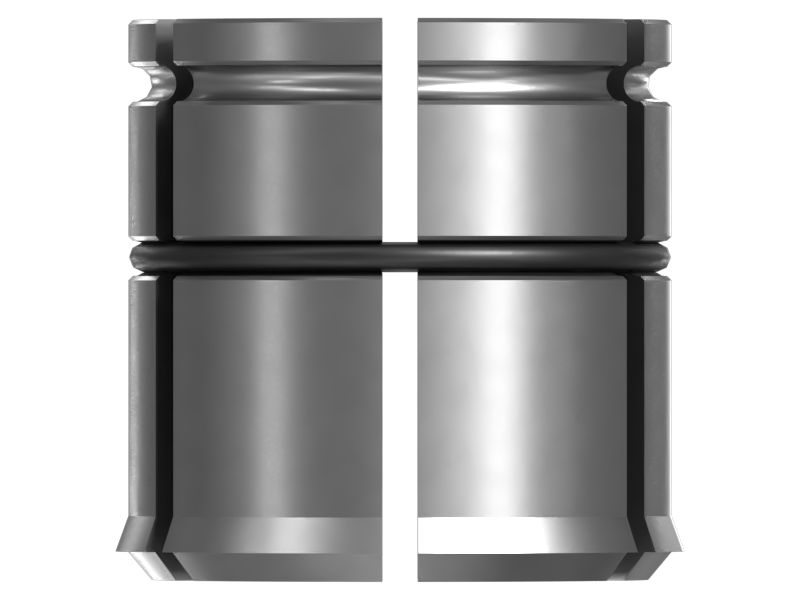

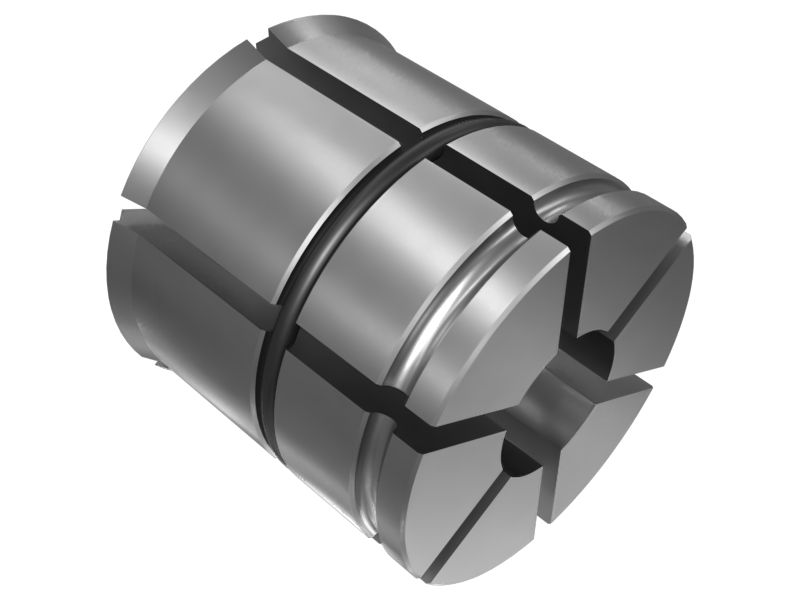

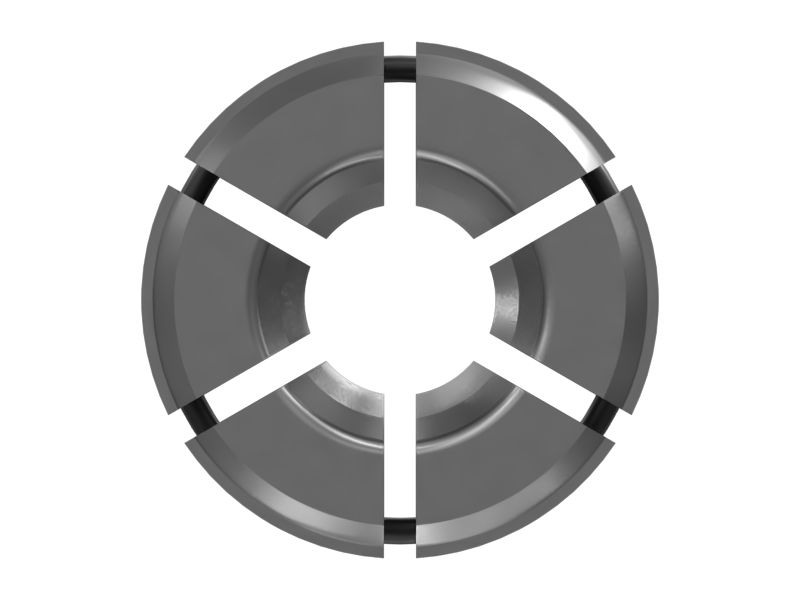

606-2012: Engine Intake Valve Seat Puller Collet

An Engine Intake Valve Seat Puller Collet is inserted into the hydraulic puller cylinder tool assembly, which generates the necessary force to extract the valve seat from the cylinder head. The collet is made to grip the valve seat securely without causing any deformation or damage to the seat bore or the cylinder head's combustion surface. By applying controlled force and leverage, the collet allows for the precise removal of the valve seat. It helps facilitate the removal process without causing harm to the cylinder head.

Attributes:
• Ensures a controlled and safe extraction, minimizing the risk of damaging the cylinder head or seat bore
• Allows for efficient removal of the valve seat without the need for excessive force or hammering, which could lead to unintended damage

Applications:
An Engine Intake Valve Seat Puller Collet is used in conjunction with a hydraulic puller cylinder to delicately extract the valve seat without causing damage to the seat bore or the combustion surface of the cylinder head.

• Outer Diameter (mm): 50.8

• Outer Diameter (in): 2

• Overall Length (mm): 50

• Overall Length (in): 1.968

• Weight (kg): 0.005

• Weight (lb): 0.011

• Material: Carbon Steel
