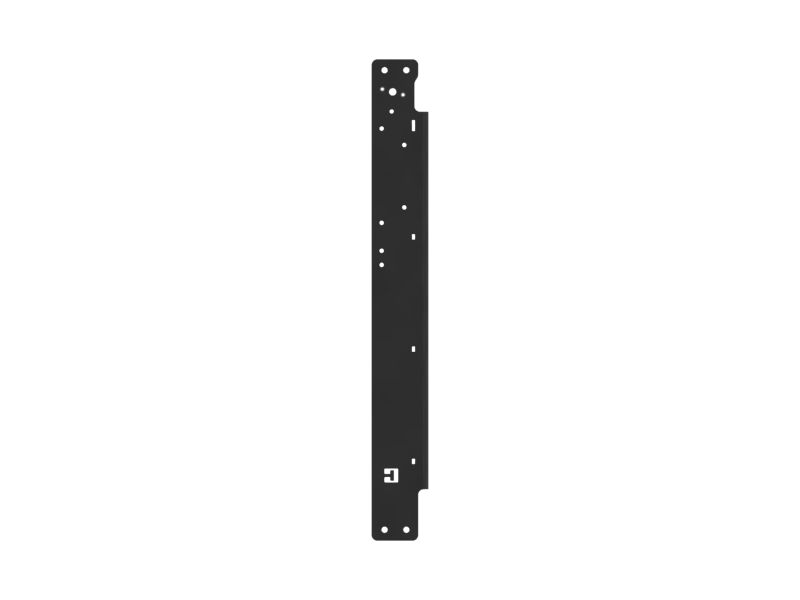

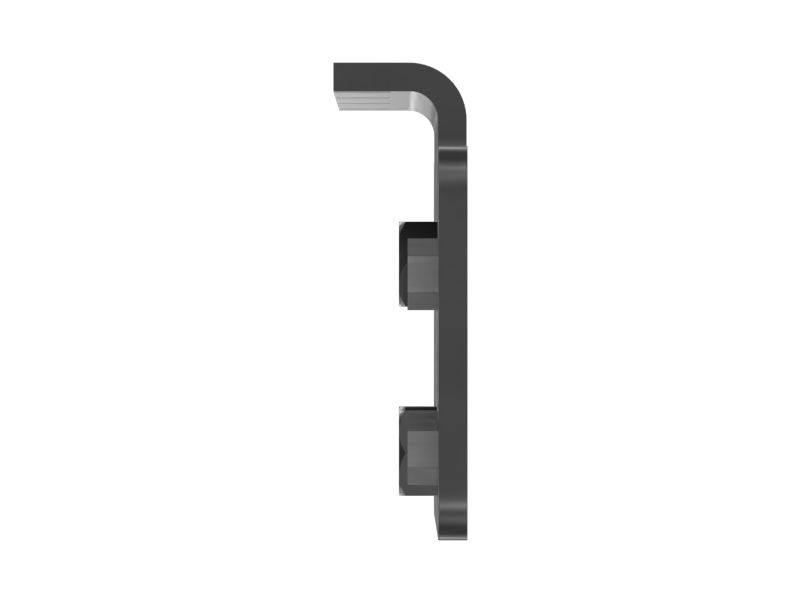

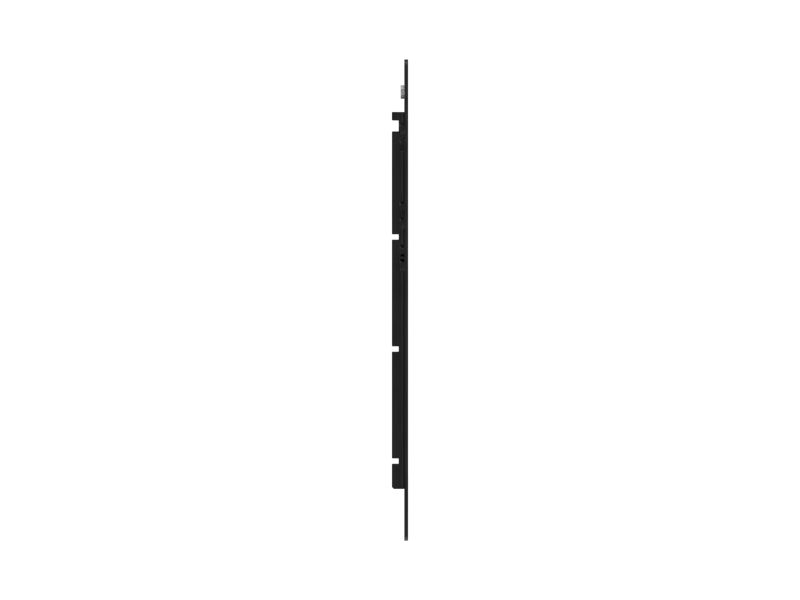

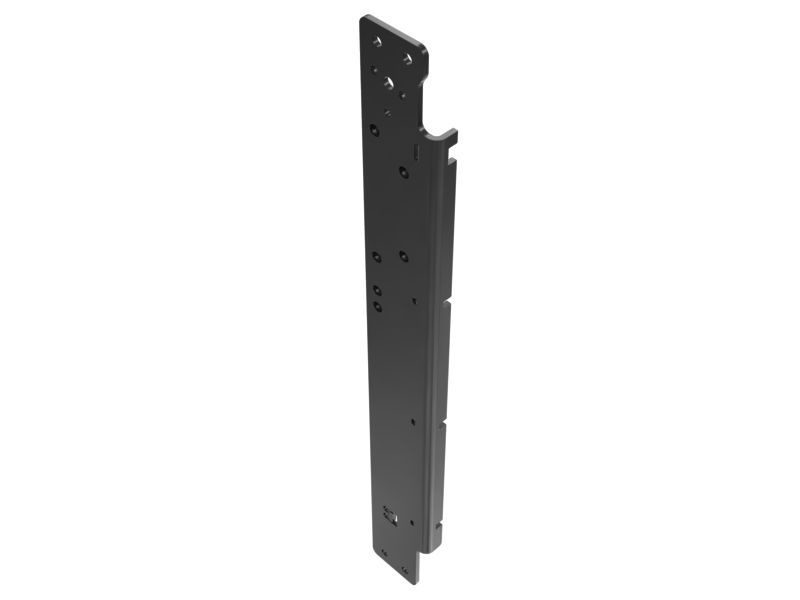

606-1343: Fuel Filter Mounting Plate

A Fuel Filter Support Plate serves the purpose of securely attaching and supporting the fuel filter onto the mounting surface. This assembly consists of a plate and weld nuts that are welded together to support the mounting of the fuel filter assembly. It ensures the stability and proper alignment of the fuel filter which is held in place with the help of fasteners.

Attributes:
• Withstands the vibrations and forces generated during operation
• Distributes loads and reduces stress concentrations to increase the overall structural strength

Applications:
A Fuel Filter Support Plate is used to hold and secure the fuel filter in the fuel lines, supporting the mounting bracket and the hose connections of the fuel lines.

• Overall Length (mm): 850.8

• Overall Length (in): 33.5

• Overall Height (mm): 14.2

• Overall Height (in): 0.56

• Overall Width (mm): 100

• Overall Width (in): 3.94

• Material Thickness (mm): 6

• Material Thickness (in): 0.24

• Material: Carbon Steel,Alloy Mixed

• Color: Medium Gloss Black

• Weight (kg): 4.36

• Weight (lb): 9.61
