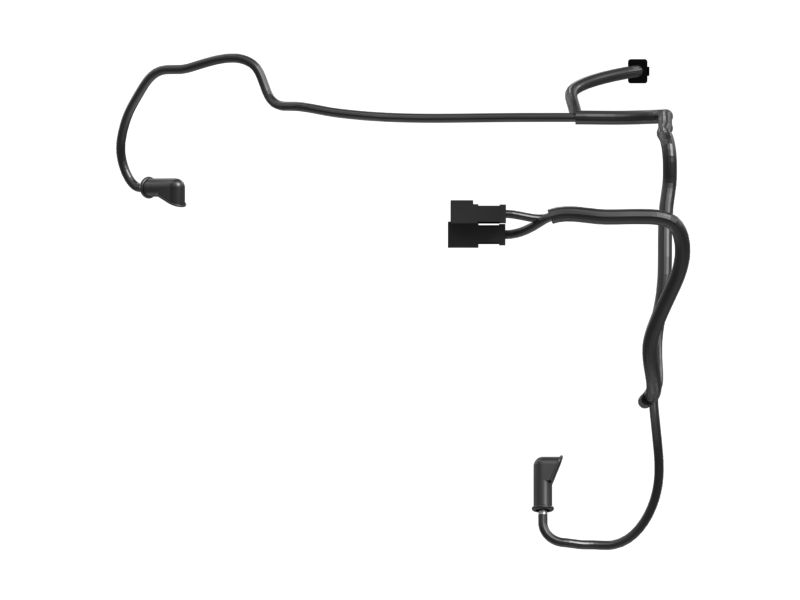

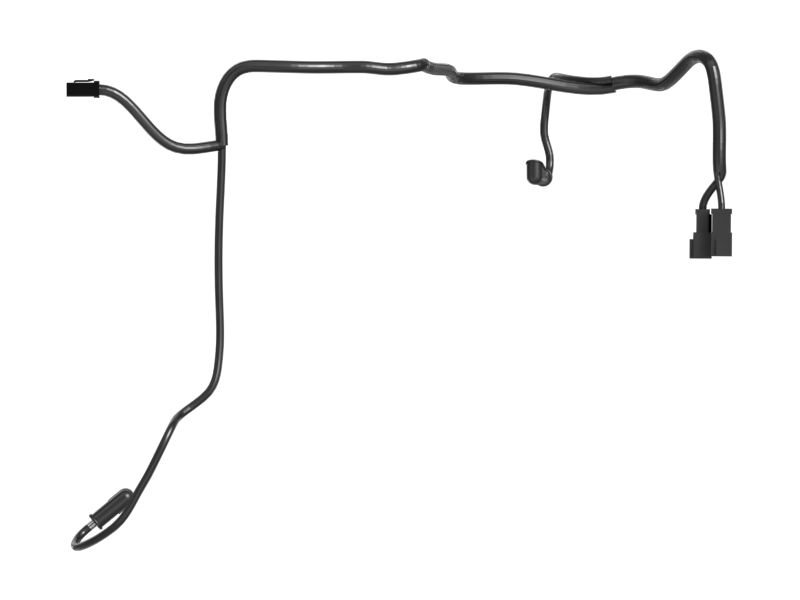

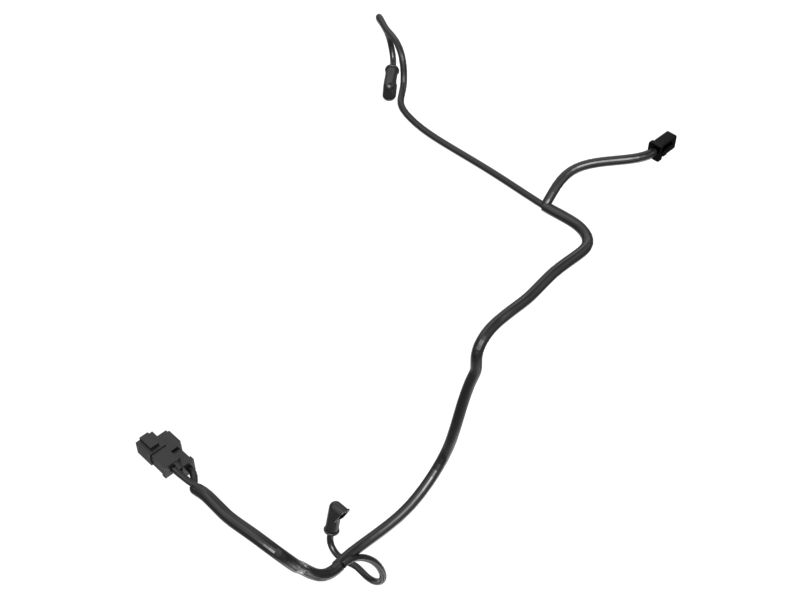

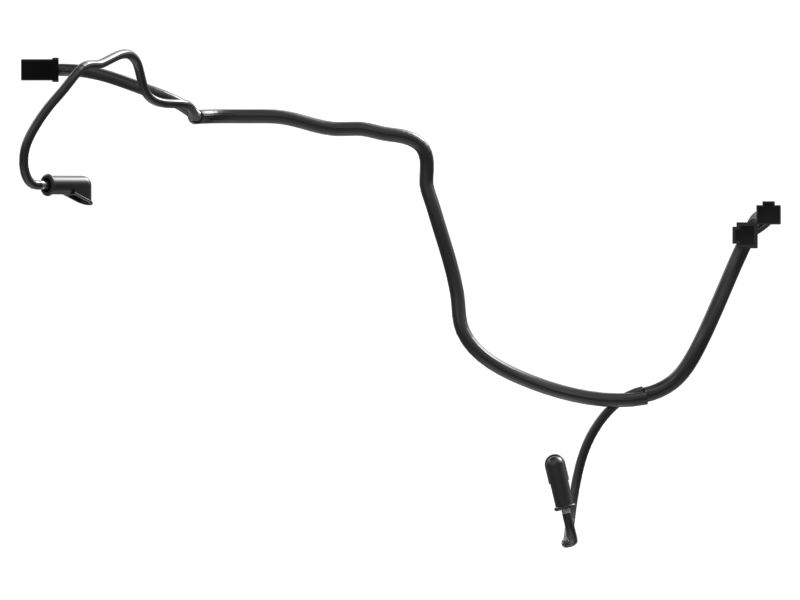

606-0190: Engine Wiring Harness

An Engine Wiring Harness is an integral component found in equipment. It serves as an organized network of wires, connectors, and terminals, designed to transmit electrical signals and power to different engine components. It connects different sensors, actuators, and electrical components to the engine control unit (ECU) to enable precise control, monitoring, and communication within the engine system.

Attributes:
• Shields sensitive electronic signals from electromagnetic and radiofrequency interference.
• Withstands the elevated temperatures within an engine compartment.
• Includes diagnostic connectors for troubleshooting and maintenance.
• Withstands mechanical stresses and vibrations associated with engine operation.
• Compliance with safety standards to prevent electrical hazards.

Applications:
An Engine Wiring Harness serves as the electrical conduit connecting engine components to the Electronic Control Unit (ECU), enabling precise control and coordination of engine functions.

• Weight (kg): 0.33

• Weight (lb): 0.72
