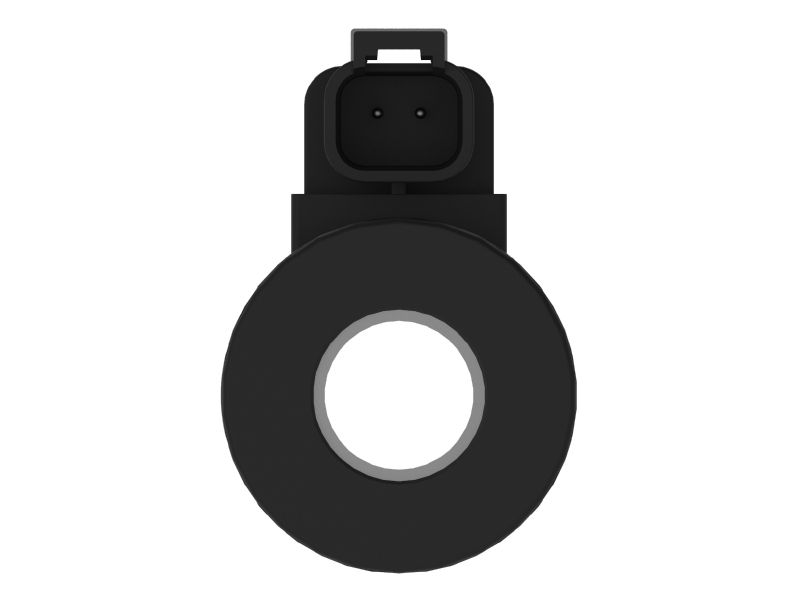

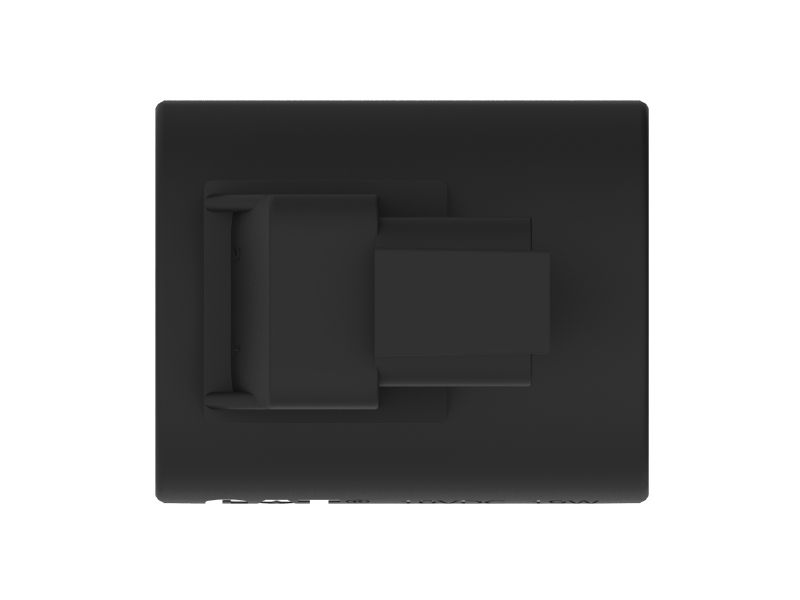

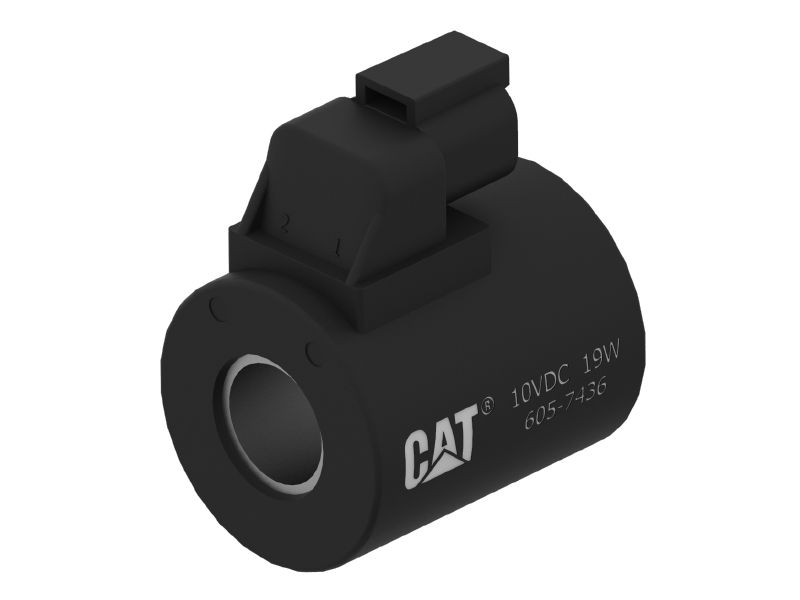

605-7436: Actuating Coil

Cat® Solenoid Valve Actuating Coil is an electromagnetic coil that generates a magnetic field when an electric current is passed through it. The core is the magnetic material that enhances the magnetic field generated by the coil. The housing protects the coil assembly and provides a enclosed surface. Manufactured to precise specifications and are built for durability and reliability. A solenoid is a very important coil of wire that is used in inductors, electromagnets, antennas, valves, and many more. Cat® Solenoids provide reliable performance which enables them to operate in heavy-duty applications such as severe vibration and shock, extreme operating temperatures, thermal cycle, thermal shock, humidity, corrosion, and excessive dust. Each unit includes all critical engineering updates, and is rigorously tested against original specifications, so you know you’re getting genuine Caterpillar reliability.

Main Function : Proportional Valve
Connector : 2 Pin Integral DT Connector
Supply Voltage : 10 - 12 VDC
DC Rated Power : 19 W
Insulation Class : Encapsulated Plastic
Coil Type : ZDI
Loctite Type : IS RTC 535E

Application:
Cat® Actuating Coil is used in the solenoid valve of Cat® Machines. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Overall Length (mm): 56.2

• Overall Length (in): 2.21

• Overall Height (mm): 70.3

• Overall Height (in): 2.77

• Overall Width (mm): 46

• Overall Width (in): 1.81

• Inner Diameter (mm): 19

• Inner Diameter (in): 0.75

• Operating Temperature: -30°C to 110°C

• Approx. Weight (kg): 0.38

• Approx. Weight (lb): 0.84

• Material: Carbon Steel
