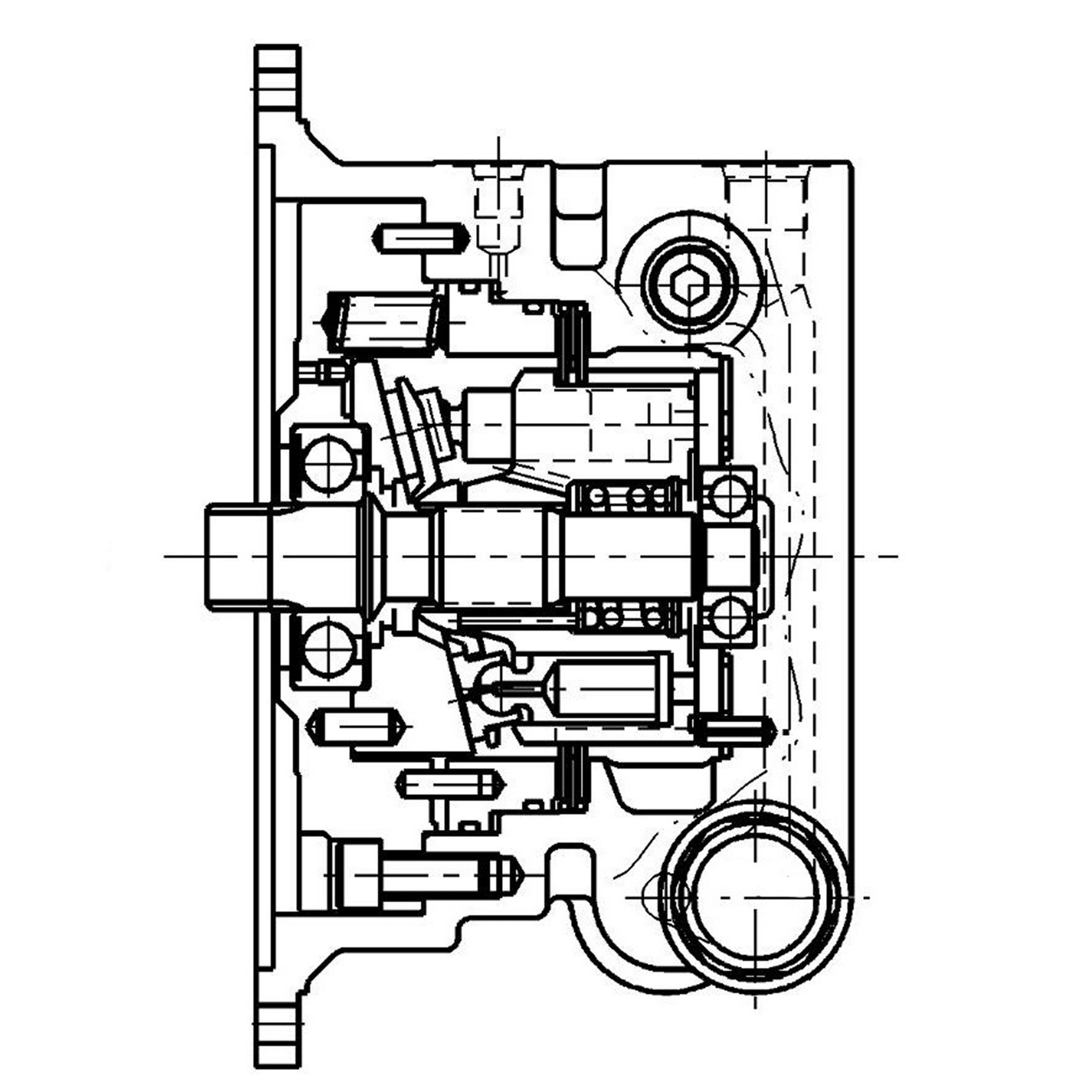

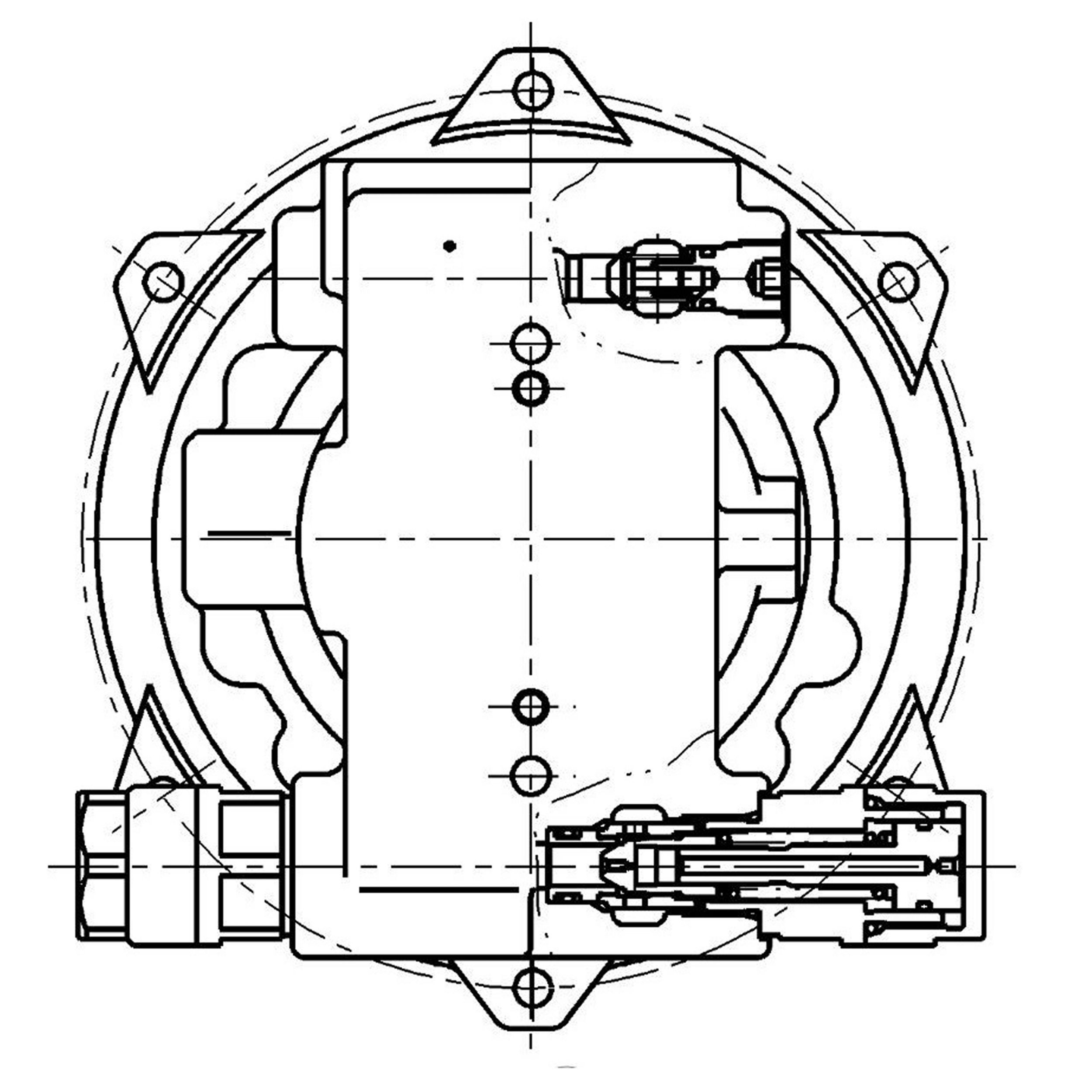

604-8542: Swing Drive Piston Motor

The Piston Motor is used in the swing drive system of the machine. It is responsible for rotating the upper frame of the excavator, allowing it to maneuver and position itself effectively during excavation tasks. it operates based on the principle of hydraulic pressure acting on pistons arranged within a circular housing. As hydraulic fluid enters the motor, it exerts force on the pistons, causing them to reciprocate within their bores.

Attributes:
• Manufactured to precise specifications and built for durability and reliability
• Designed to withstand vibrations and stresses generated within the motor

Applications:
The Piston Motor in a Mini Hydraulic Excavator is a hydraulic motor responsible for generating the rotary motion needed to swing the upper structure of the excavator.

• Outer Diameter (mm): 240.00

• Outer Diameter (in): 9.45

• Overall Length (mm): 151.50

• Overall Length (in): 5.96

• Overall Width (mm): 222.00

• Overall Width (in): 8.74

• Material: Cast Material,Ductile (Spheroidal) Iron

• Approx. Weight (kg): 20.00

• Approx. Weight (lb): 44.1
