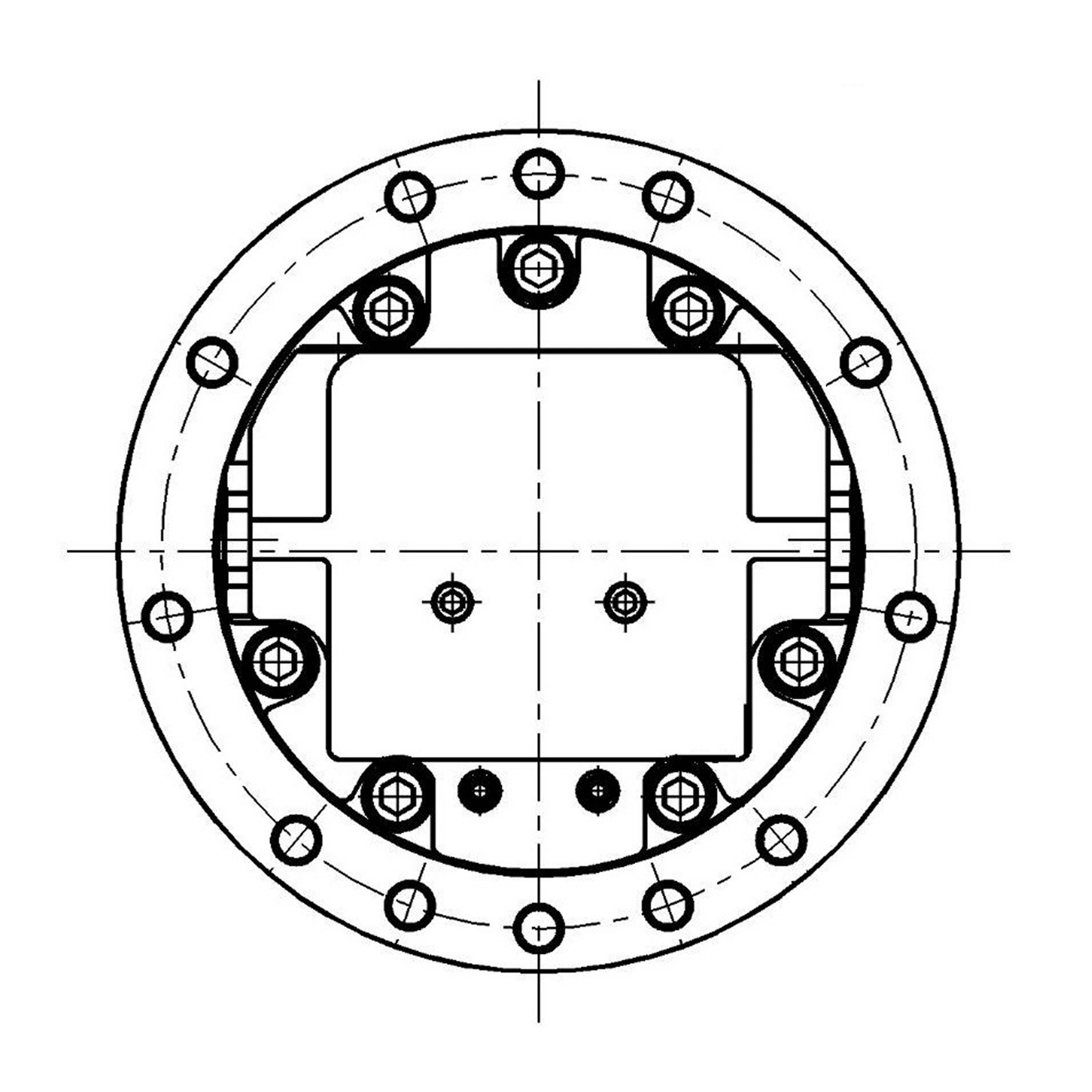

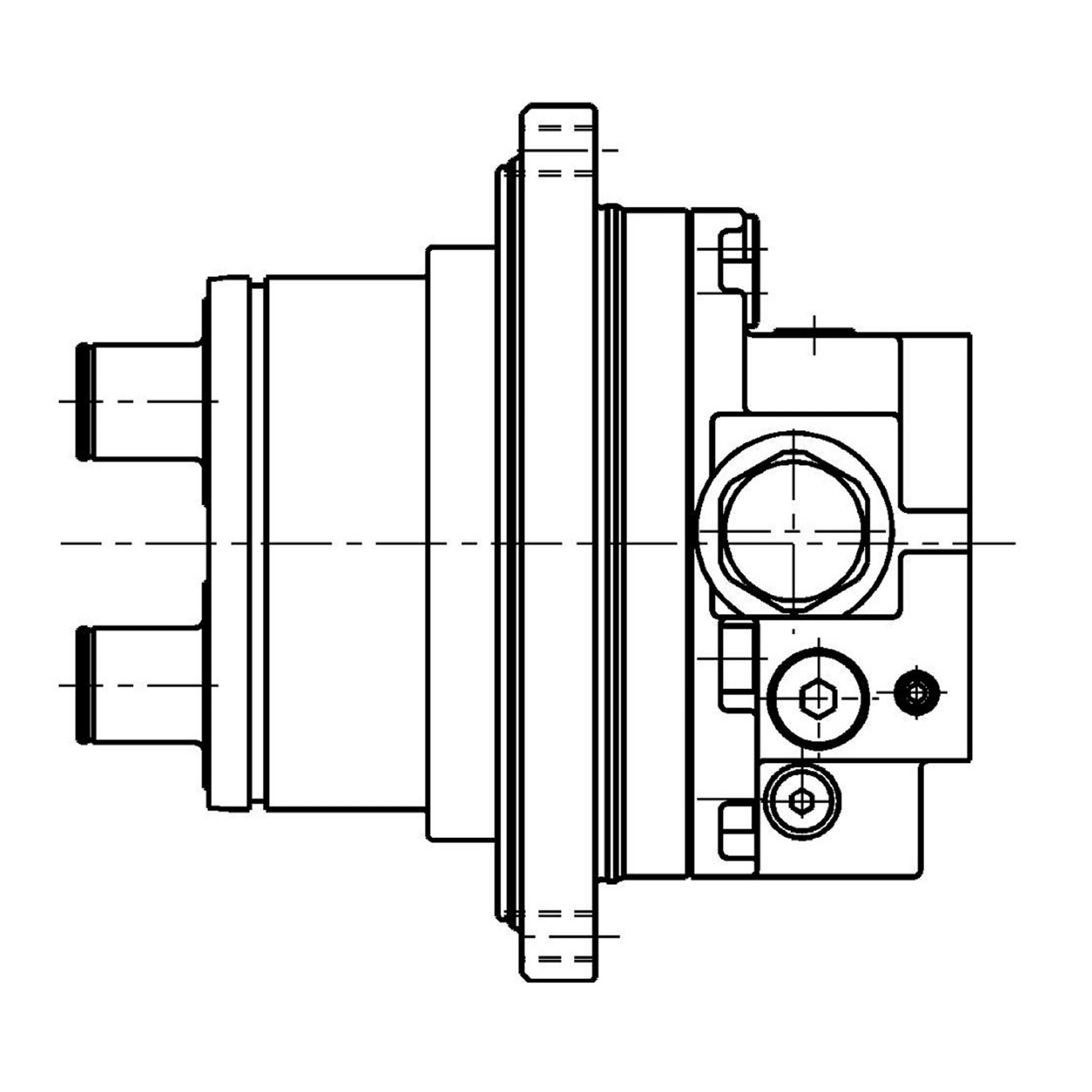

604-6642: Power Train Piston Motor

A Piston Pumps are positive displacement pumps that use reciprocating pistons to displace hydraulic fluid (usually oil). These pumps create flow and pressure by drawing fluid into a cylinder on the piston's intake stroke and then pushing it out on the discharge stroke. This pressurized hydraulic fluid is then used to perform work within the powertrain system.

Attributes:
• Manufactured to precise specifications and built for durability and reliability
• Designed to withstand vibrations and stresses generated within the motor
• Can withstand high pressure and temperature

Applications:
A Piston Pump is used to enable the controlled transmission of power and motion in a wide range of vehicles and machinery.

• Outer Diameter (mm): 214.00

• Outer Diameter (in): 8.43

• Overall Length (mm): 218.00

• Overall Length (in): 8.58

• Hole Thread Size (mm): M12

• Material: Cast Material,Ductile (Spheroidal) Iron

• Approx. Weight (kg): 19.80

• Approx. Weight (lb): 43.7
