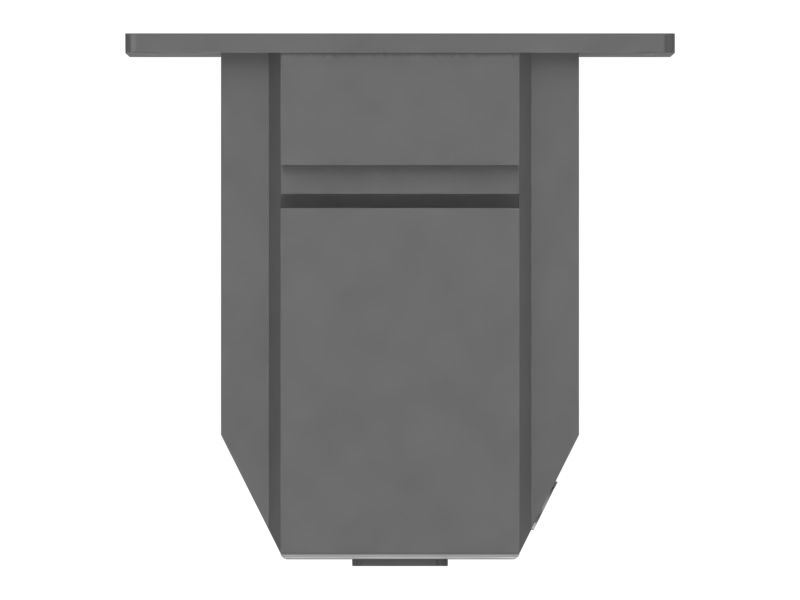

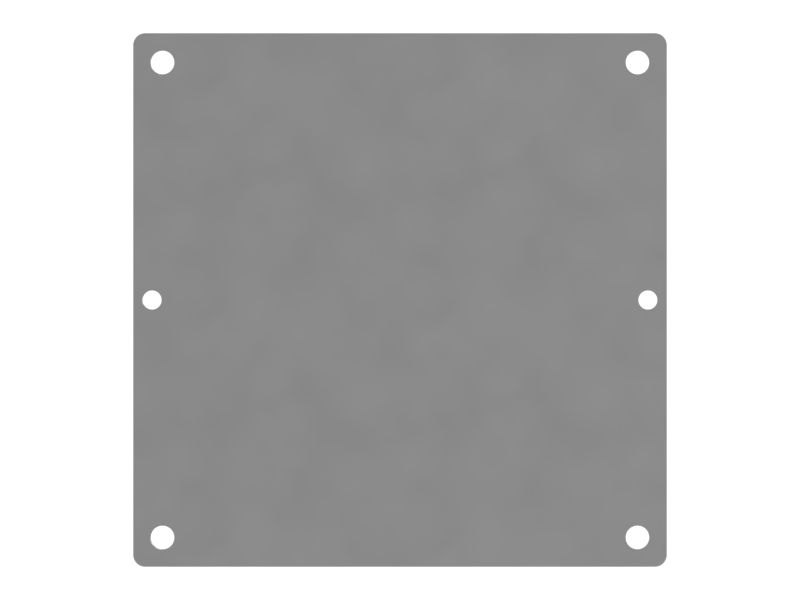

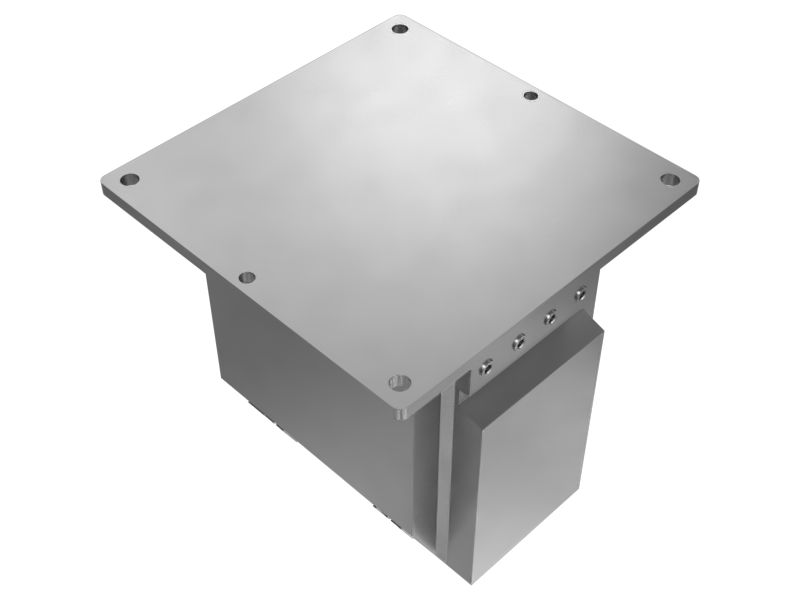

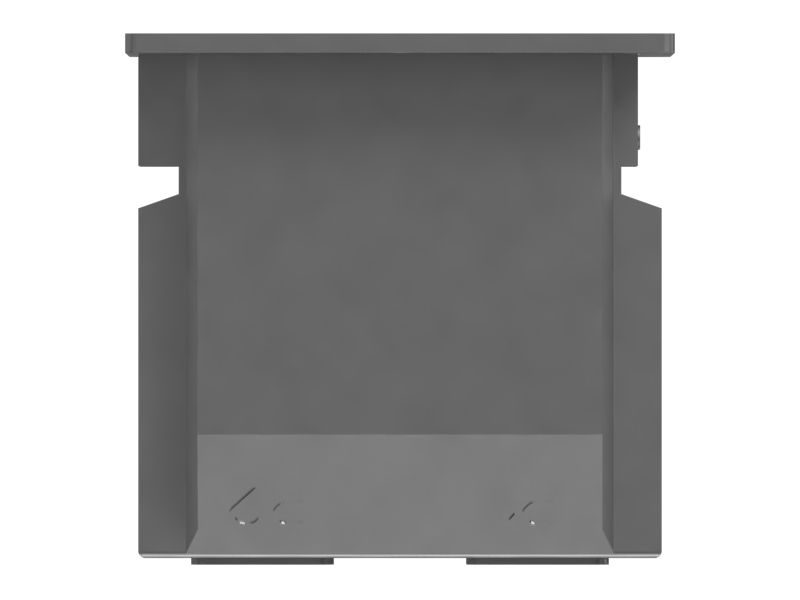

604-6523: 200 Ampere Current Transformer

The Current Transformer is designed to accurately measure alternating current levels. It transforms high primary currents into standardized lower currents, providing a safe and proportional representation for monitoring purposes, it ensures precision in current measurement, contributing to equipment performance monitoring and electrical safety.

Attributes:
• Ensures the safe and efficient operation of electrical equipment.
• Steps down high currents to a safe, measurable value.
• Enables safe and accurate measurement without interrupting the circuit.
• The primary current of the transformer is 200 Ampere.
• The secondary measuring coil current of the transformer is 5 Ampere.
• The Nominal Voltage of the transformer is 17.5 kilovolts.
• Power frequency dielectric withstand voltage of the transformer is 38 kilovolts.
• Surge withstand voltage of the transformer is 95 kilovolts.

Applications:
The Current Transformer is used to measure and monitor electrical currents, ensuring accurate readings for efficient management of power systems and equipment safety.

• Material: Carbon Steel
