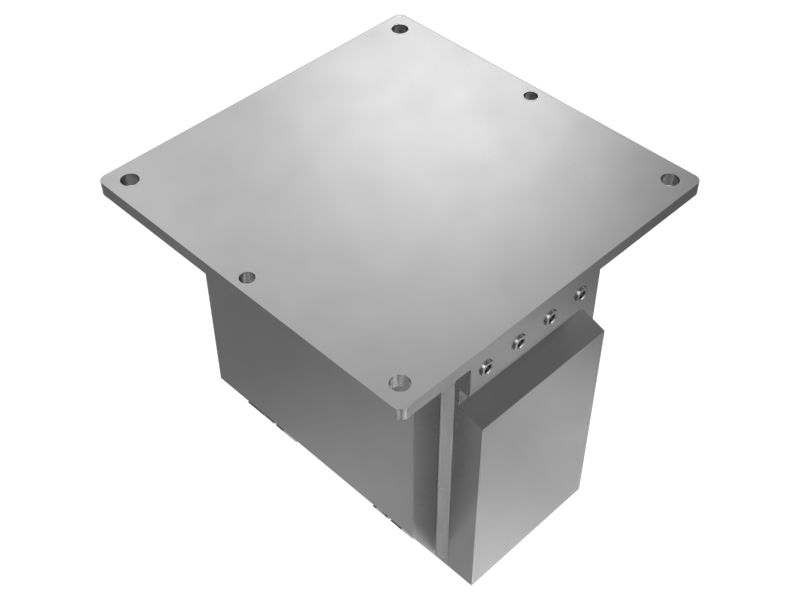

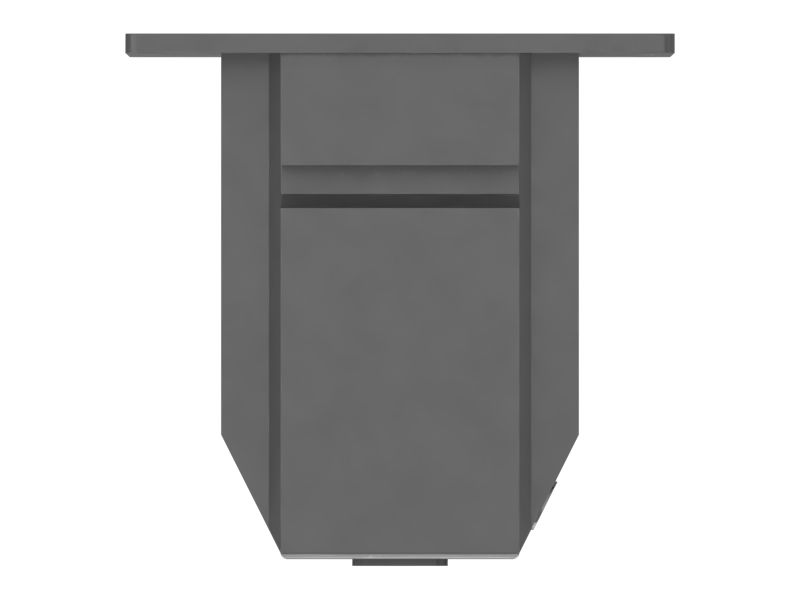

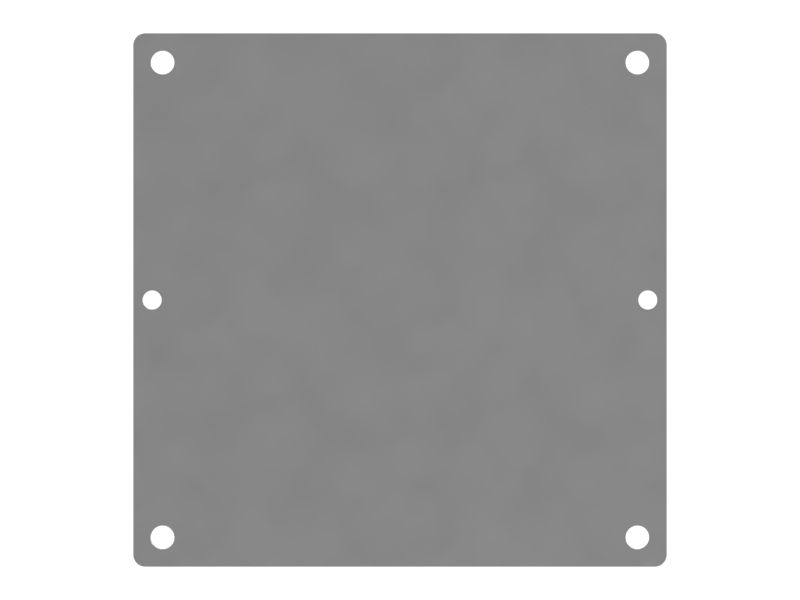

604-6520: 17.5 Kilovolts Current Transformer

The Current Transformer is an instrument transformer utilized in electrical and starting systems of equipment. Functioning as a current step-down and voltage step-up transformer, it decreases the value of electric current in a transmission line for measurement and protection purposes. By facilitating reliable current monitoring and regulation, contributes to the overall performance and operational efficiency of equipment, ensuring optimal functionality and longevity.

Attributes:
• Primary current is 650 Amperes, secondary measuring coil current is 5 Amperes.
• Power frequency dielectric withstand voltage is 38 kilovolts.
• Nominal voltage is 17.5 kilovolts and surge withstand voltage is 95 kilovolts.
• Resistant to environmental factors such as temperature and humidity.
• Enhances the efficiency of electrical power distribution.
• Designed for easy installation and maintenance.
• Compact design for space-saving installation.
• Resistant to wear and corrosion.

Applications:
The Current Transformer ensures efficient operation and safety by accurately measuring current flow and providing required data to monitoring systems, thus enhancing productivity across varying applications.

• Material: Carbon Steel
