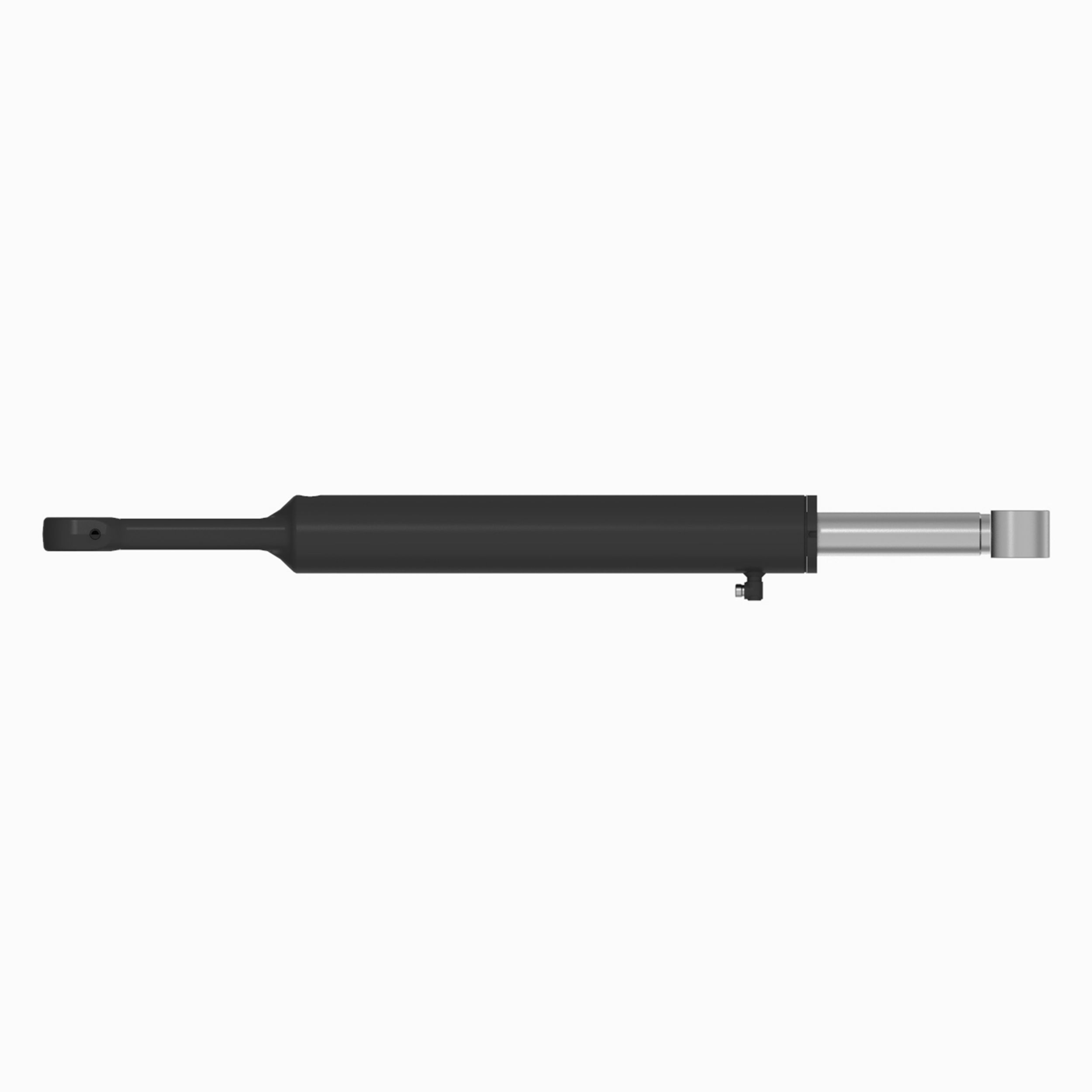

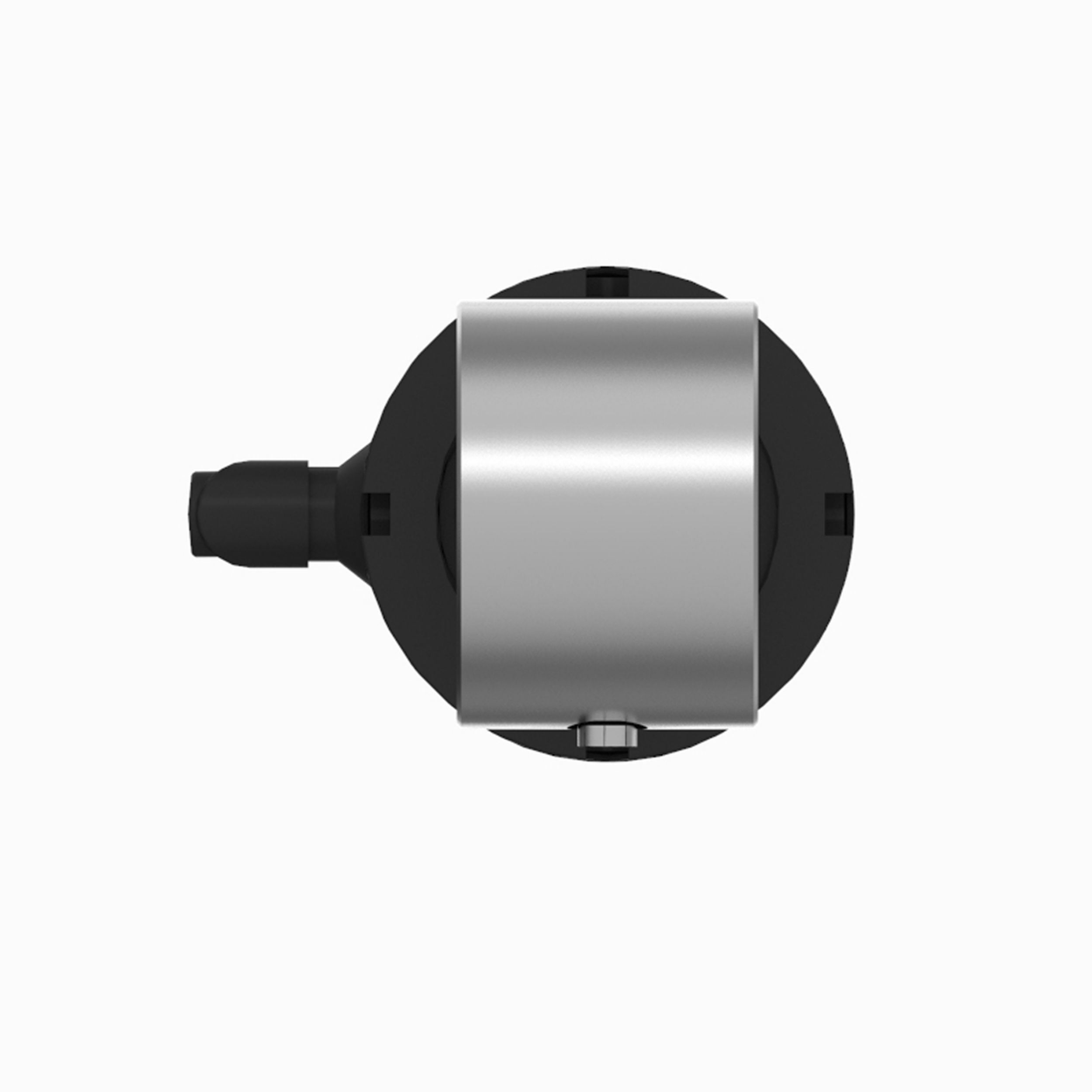

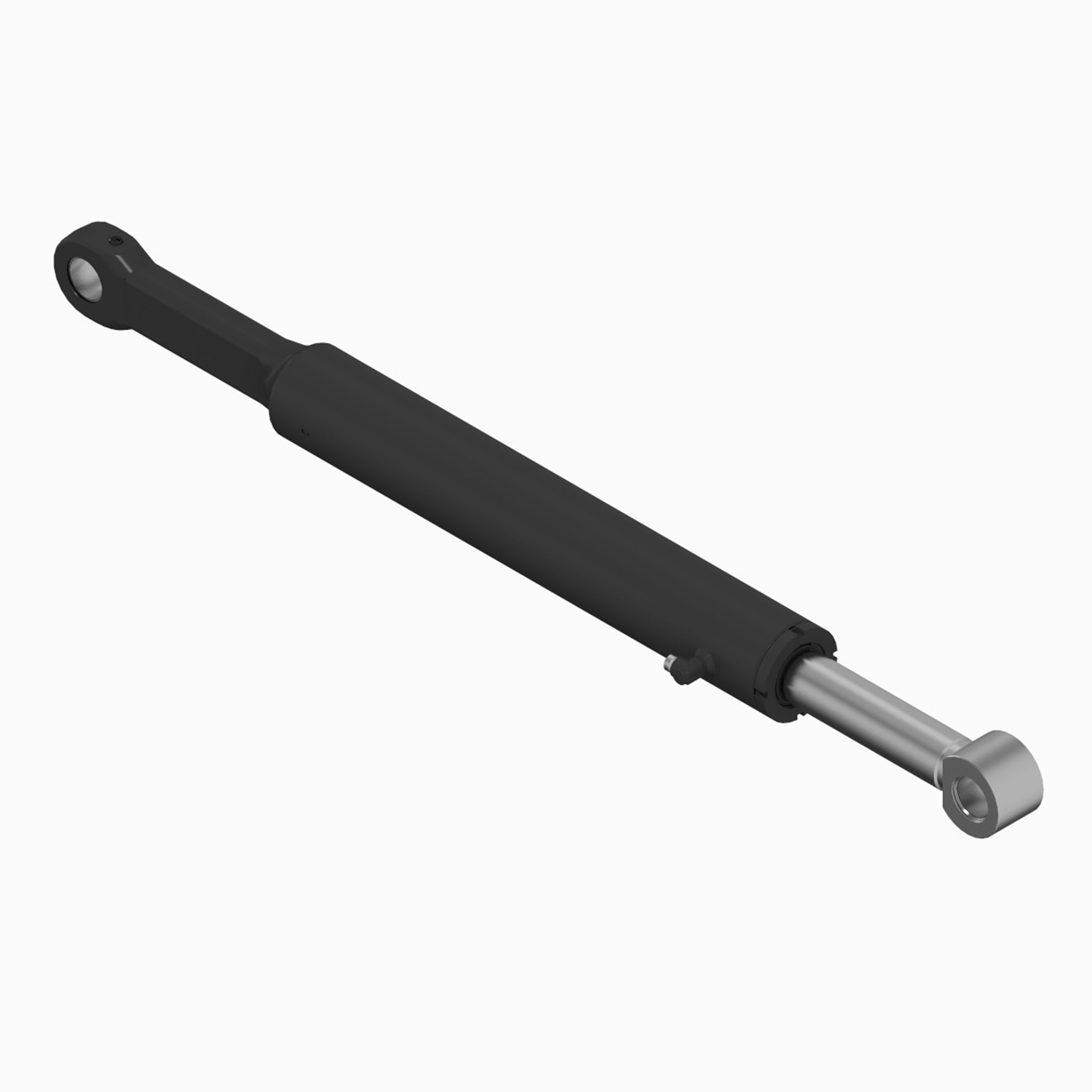

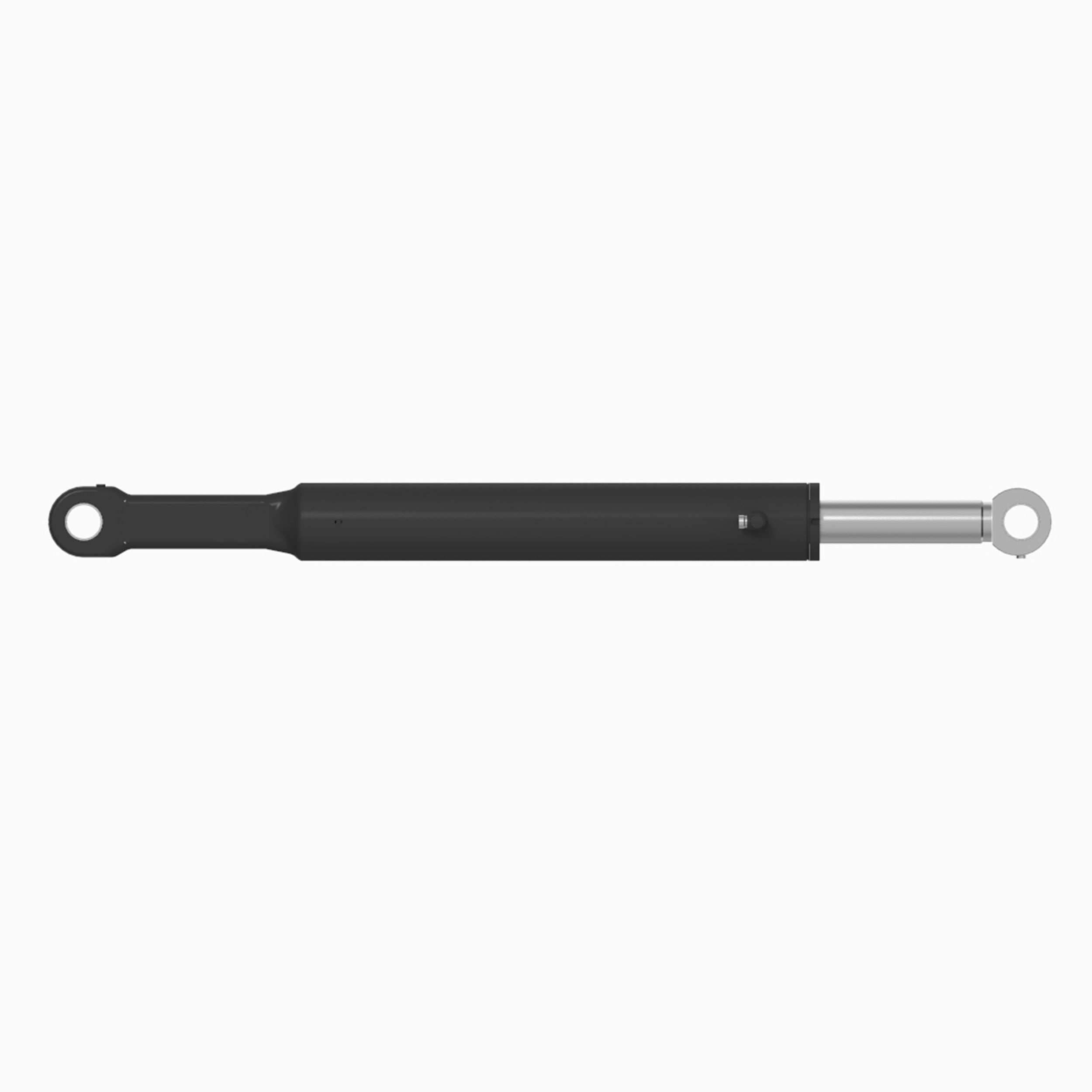

604-0209: Cylinder Group

Description:
Cat® Cylinder Groups of hydraulic arrangement actuate numerous machine components ranging from steering controls to refined movement of blades, buckets or other attachments. Cat® Hydraulic cylinder groups consist of tube and rod assemblies that are ready for installation on a machine. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications.

Stroke Length : 514 mm (20.236 in)
Closed Length : 1379 mm (54.291 in)
Open Length : 1893 mm (74.528 in)
Cap End Port Thread Size : 3/4 - 16 UNF
Rod End Port Thread Size : 13/16 - 16 UN

Application:
Cat® Cylinder Groups are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 1477

• Overall Length (in): 58.15

• Overall Height (mm): 155

• Overall Height (in): 6.11

• Overall Width (mm): 115

• Overall Width (in): 4.53

• Bore Diameter (mm): 100

• Bore Diameter (in): 3.94

• Rod Diameter (mm): 65

• Rod Diameter (in): 2.56

• Pin Diameter (mm): 50

• Pin Diameter (in): 1.97

• Working Pressure (kPa): 32000

• Working Pressure (psi): 4641

• Color: Medium Gloss Black

• Material: Steel,Sealants / Adhesives Adhesive,Carbon Steel

• Weight (kg): 61.73

• Weight (lb): 136.1
