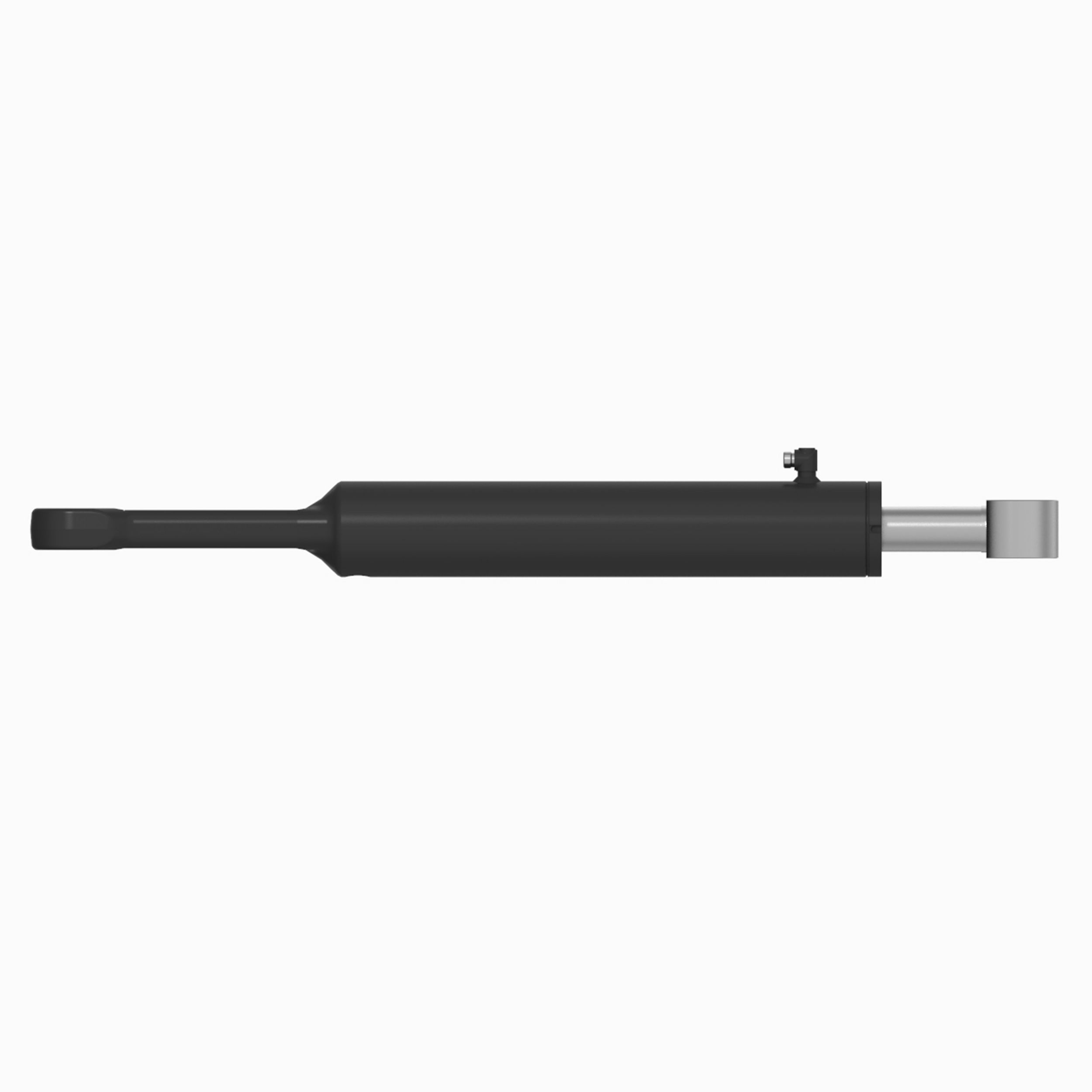

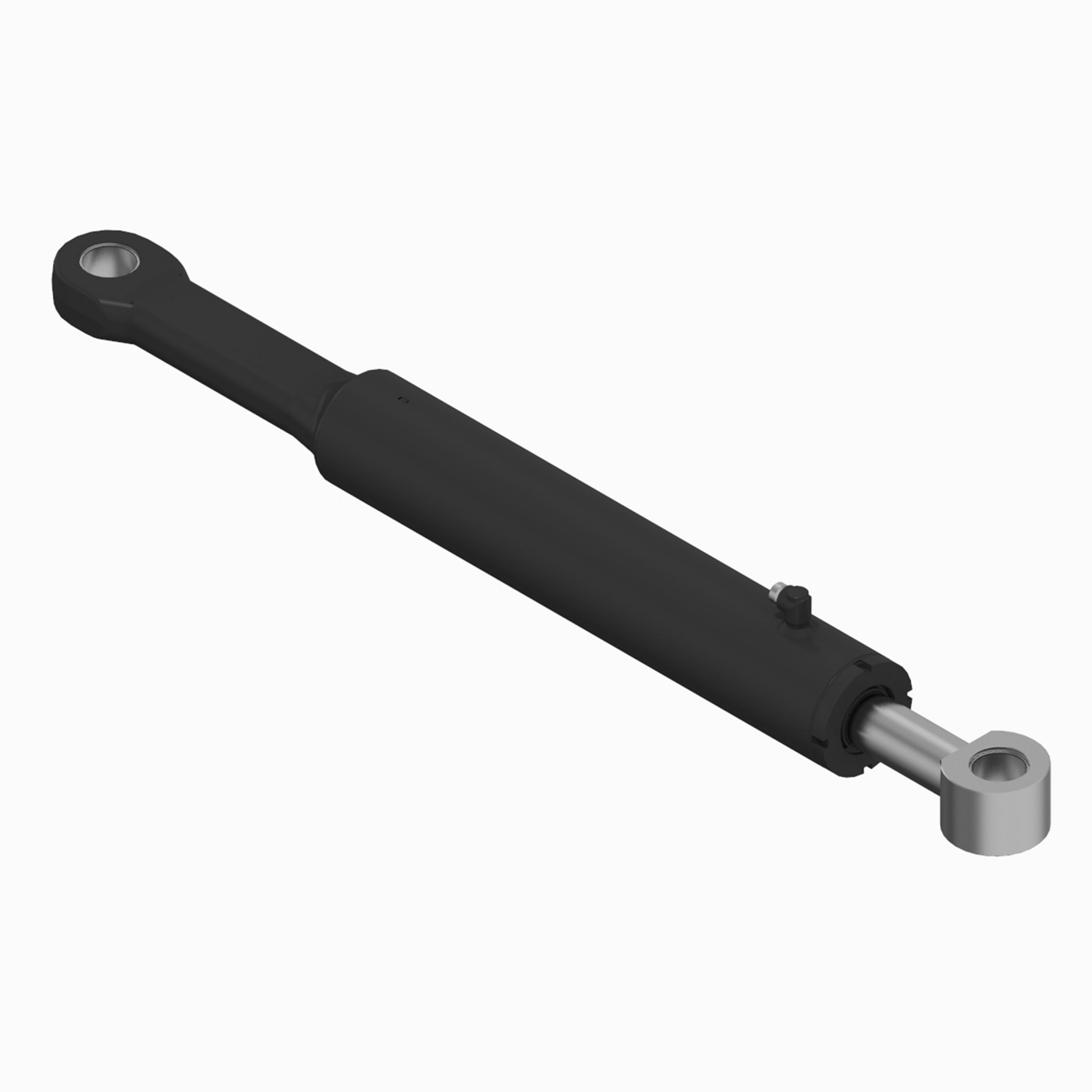

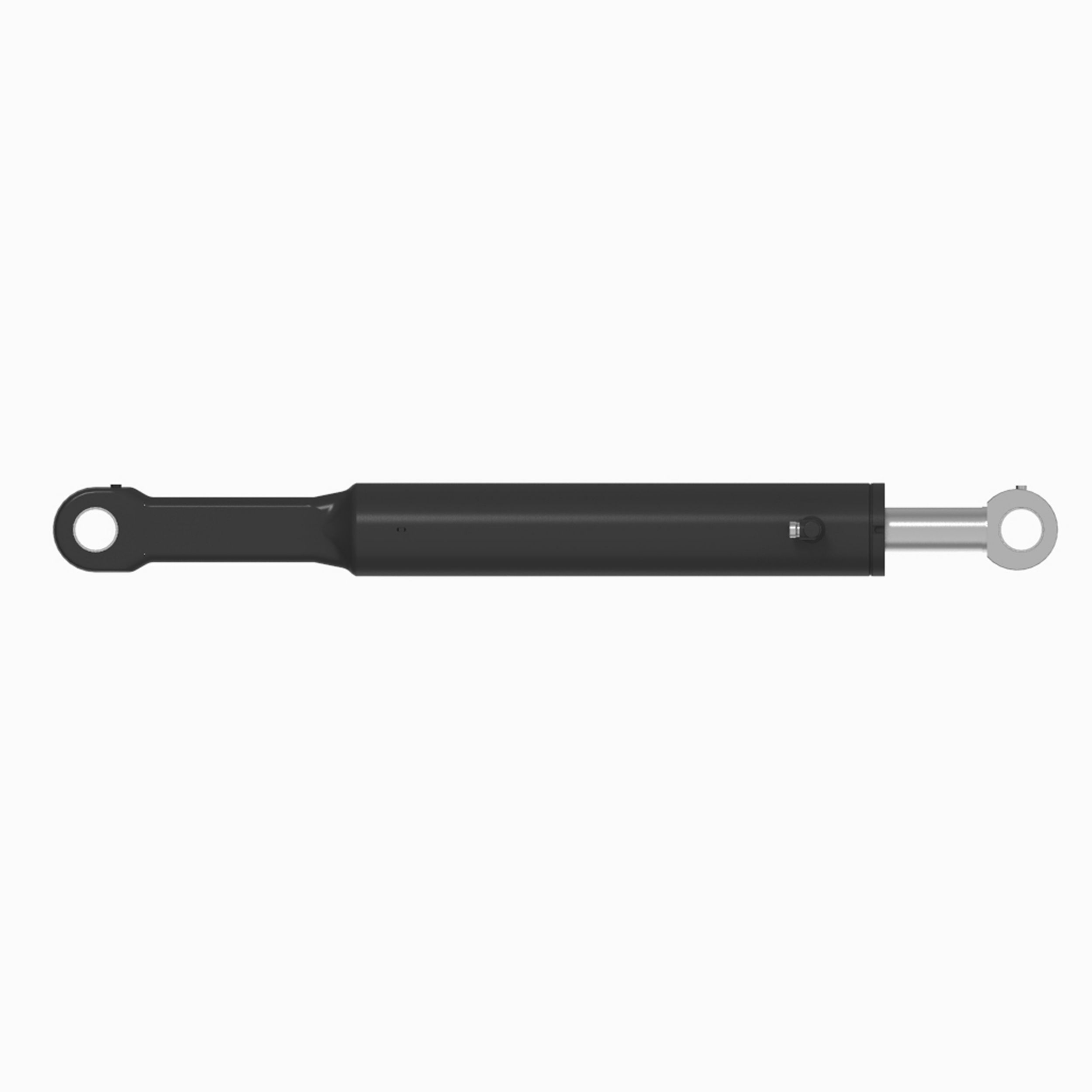

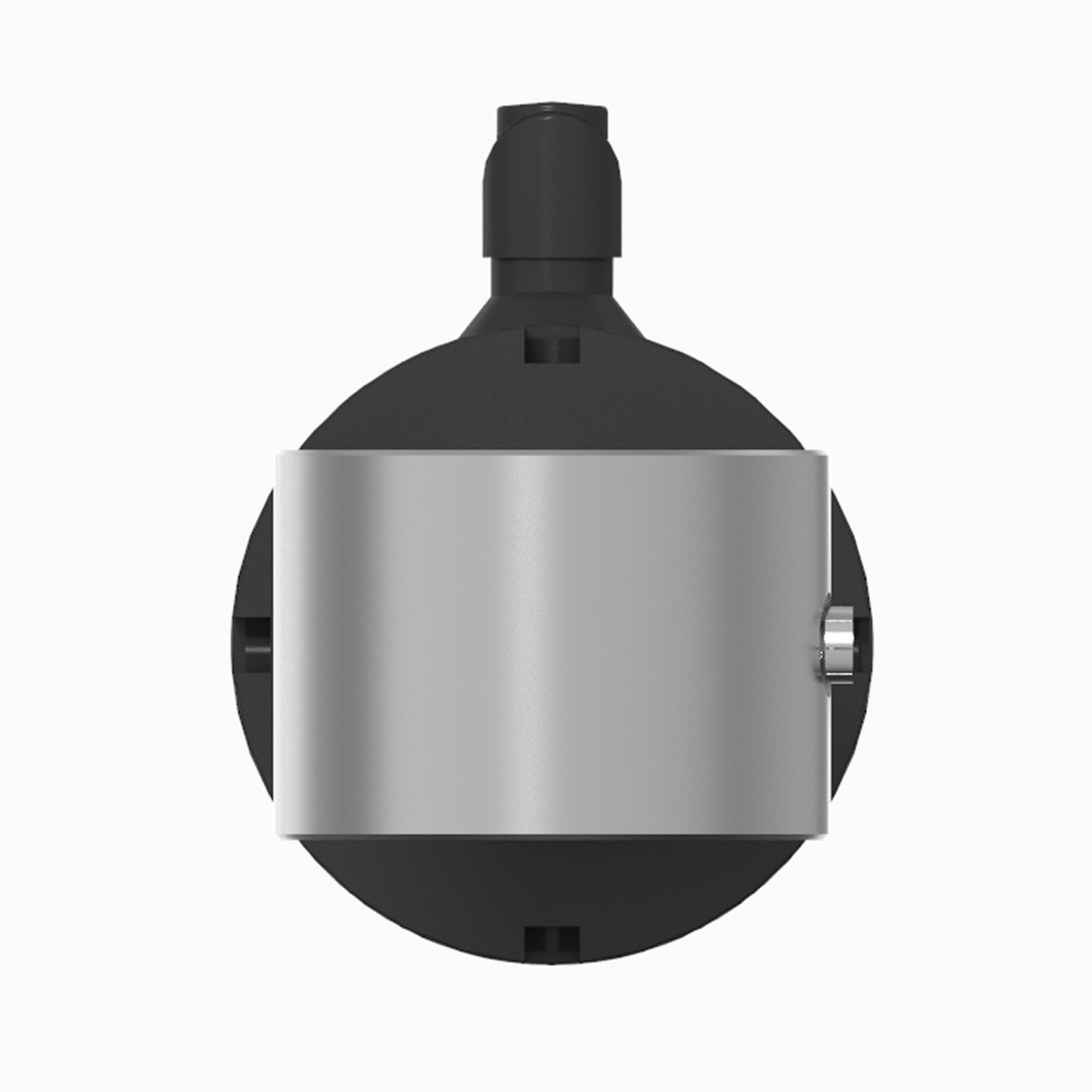

604-0208: Cylinder Group

Description:
Cat® Cylinder Groups of hydraulic arrangement actuate numerous machine components ranging from steering controls to refined movement of blades, buckets or other attachments. Cat® Hydraulic cylinder groups consist of tube and rod assemblies that are ready for installation on a machine. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications.

Stroke Length : 416.5 mm (16.397 in)
Closed Length : 1134 mm (44.646 in)
Open Length : 1550.5 mm (61.043 in)
Cap End Port Thread Size : 3/4 - 16 UNF
Rod End Port Thread Size : 13/16 - 16 UN

Application:
Cat® Cylinder Groups are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 1232

• Overall Length (in): 48.51

• Overall Height (mm): 155

• Overall Height (in): 6.11

• Overall Width (mm): 115

• Overall Width (in): 4.53

• Bore Diameter (mm): 100

• Bore Diameter (in): 3.94

• Rod Diameter (mm): 55

• Rod Diameter (in): 2.17

• Pin Diameter (mm): 50

• Pin Diameter (in): 1.97

• Working Pressure (kPa): 32000

• Working Pressure (psi): 4641

• Color: Medium Gloss Black

• Material: Steel,Carbon Steel,Sealants / Adhesives Adhesive

• Weight (kg): 49.45

• Weight (lb): 109.02
