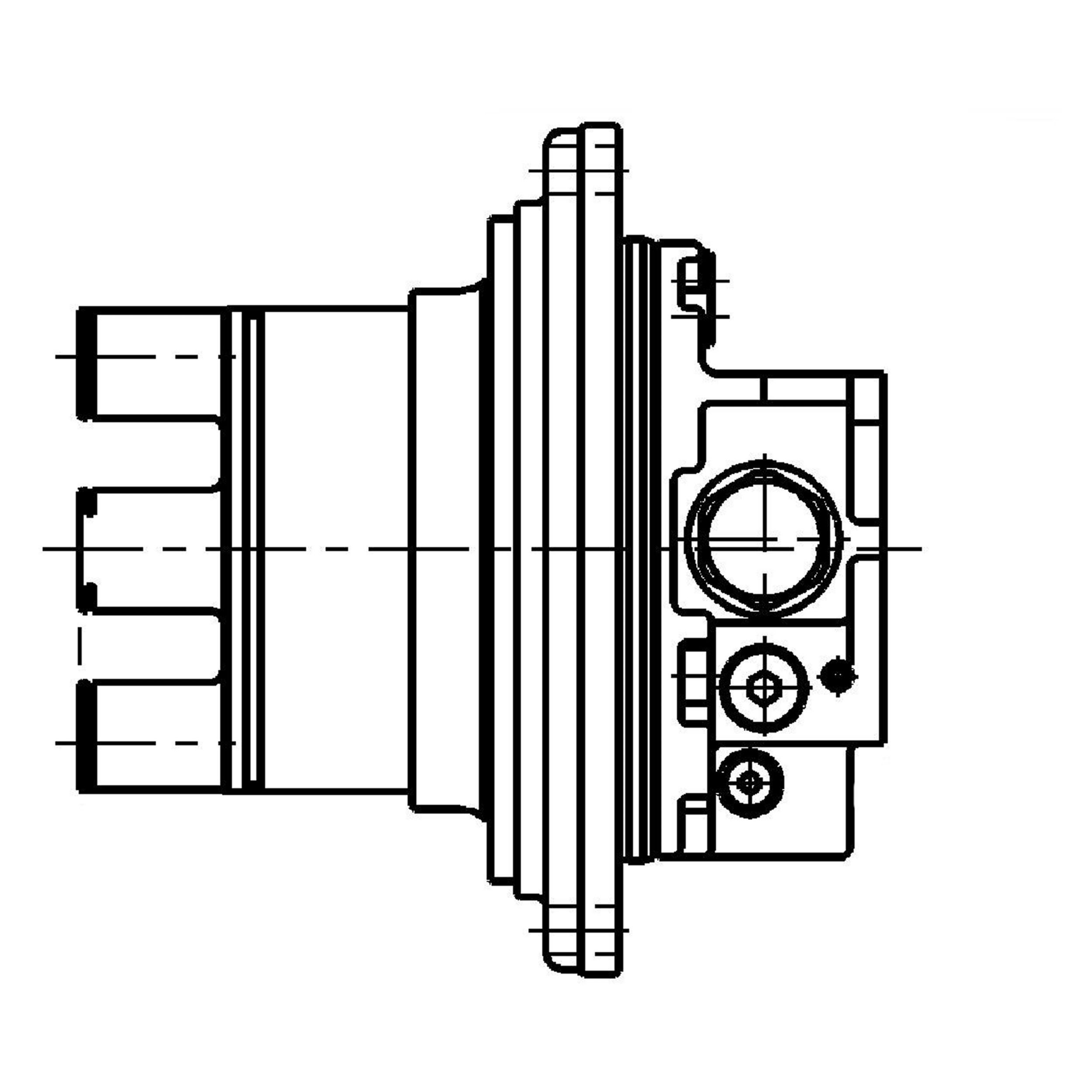

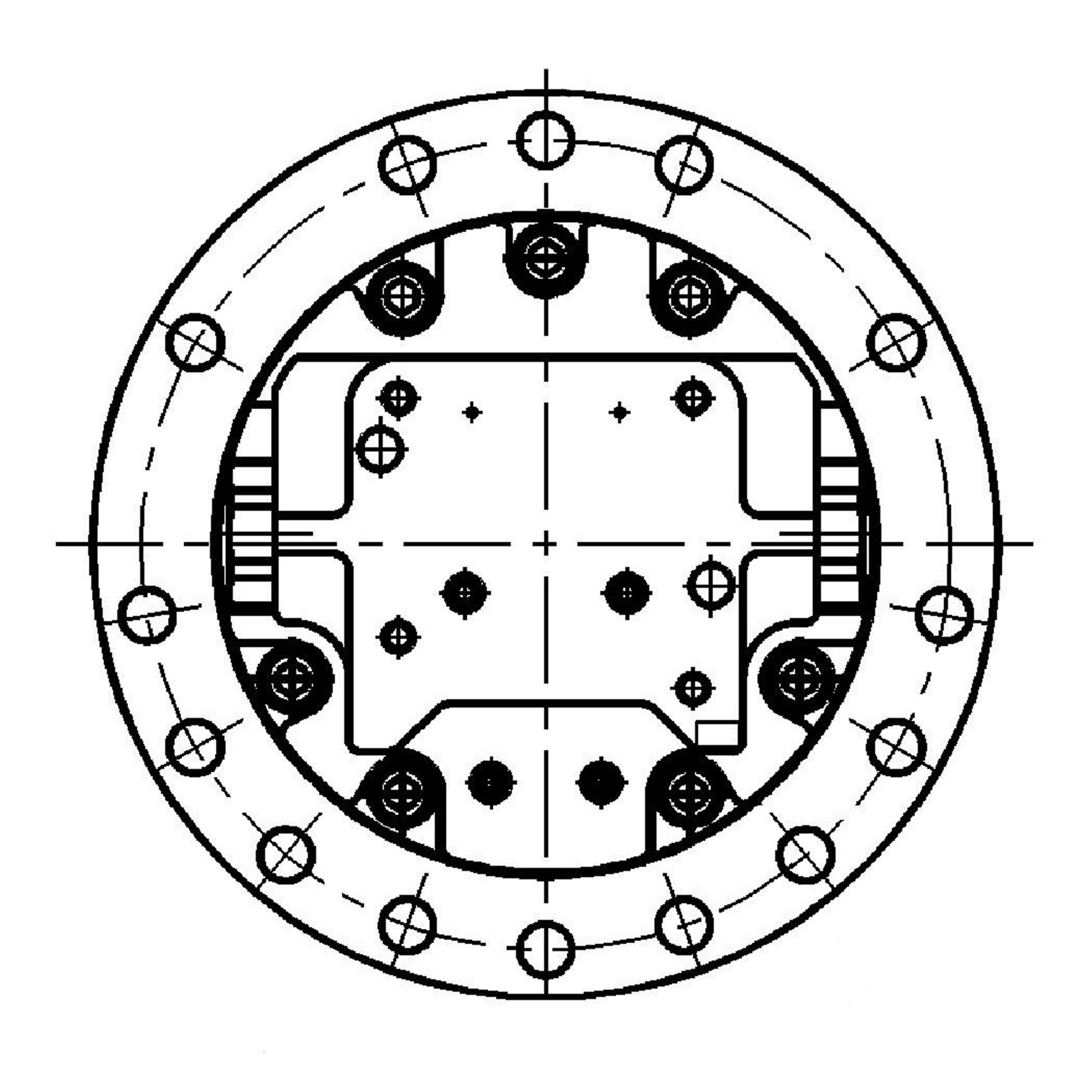

603-9654: Hydraulic Piston Motor

The Hydraulic Piston Motor operates on the principle of converting hydraulic energy into mechanical energy. When hydraulic fluid is pressurized and directed into the motor, it acts upon pistons within the motor, causing them to reciprocate. This reciprocating motion is then converted into rotational motion, which drives the connected equipment. The motor's design allows for variable displacement, enabling accurate control over speed and torque output, necessary for equipment applications.

Attributes:
• High torque output.
• Variable displacement capability.
• Corrosion-resistant materials.
• Temperature-resistant seals.
• Quick response time.

Applications:
The Hydraulic Piston Motor is integral to the final drive assembly, where it powers the rotation of equipment tracks or wheels, providing reliable propulsion and maneuverability in demanding terrain conditions, ensuring optimal performance and efficiency in equipment operations.

• Outer Diameter (mm): 246.00

• Outer Diameter (in): 9.69

• Overall Length (mm): 232.70

• Overall Length (in): 9.16

• Hole Thread Size (mm): M14X2

• Material: Cast Material,Ductile (Spheroidal) Iron

• Approx. Weight (kg): 25.00

• Approx. Weight (lb): 55.1
