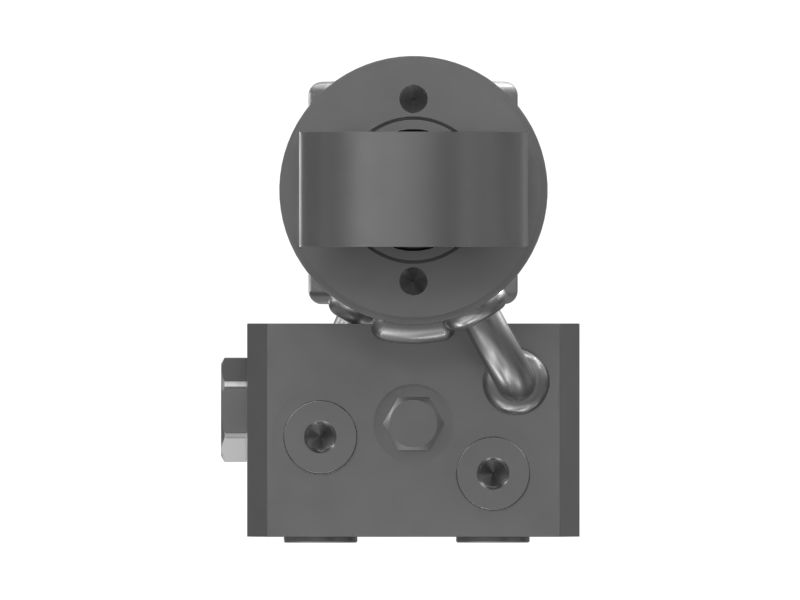

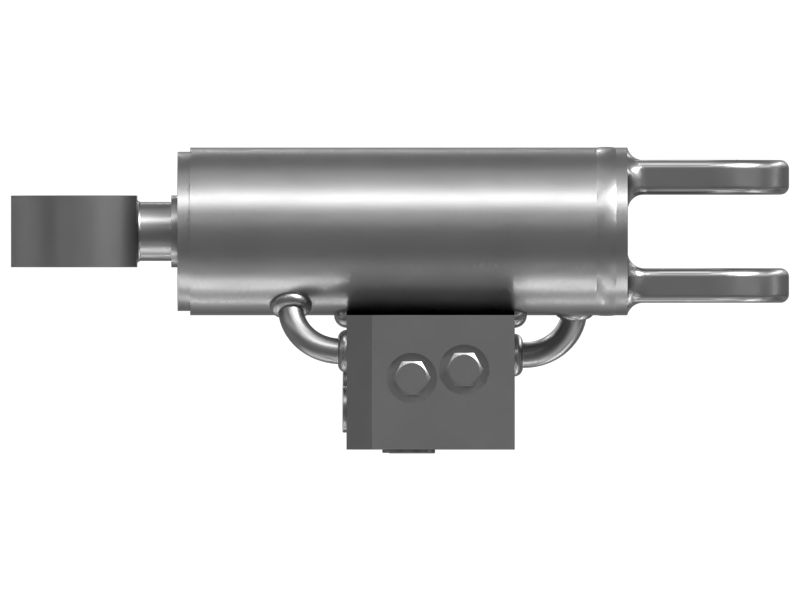

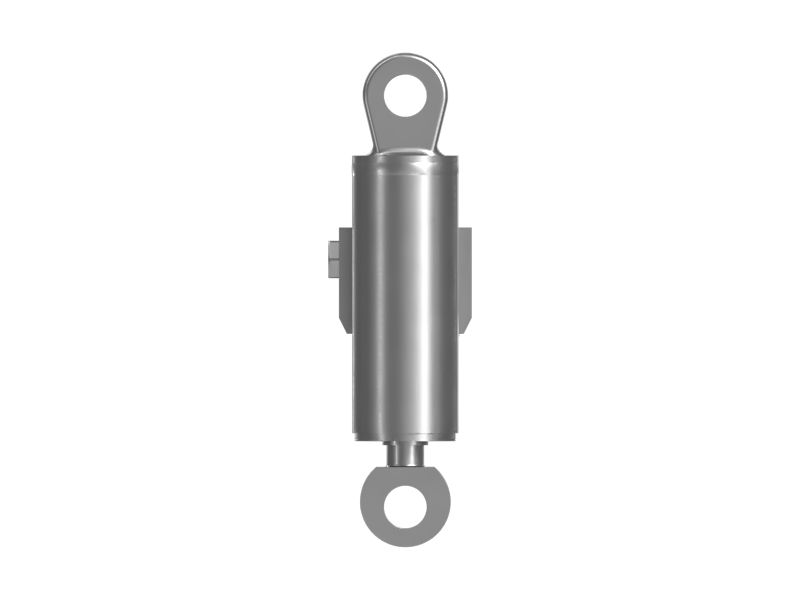

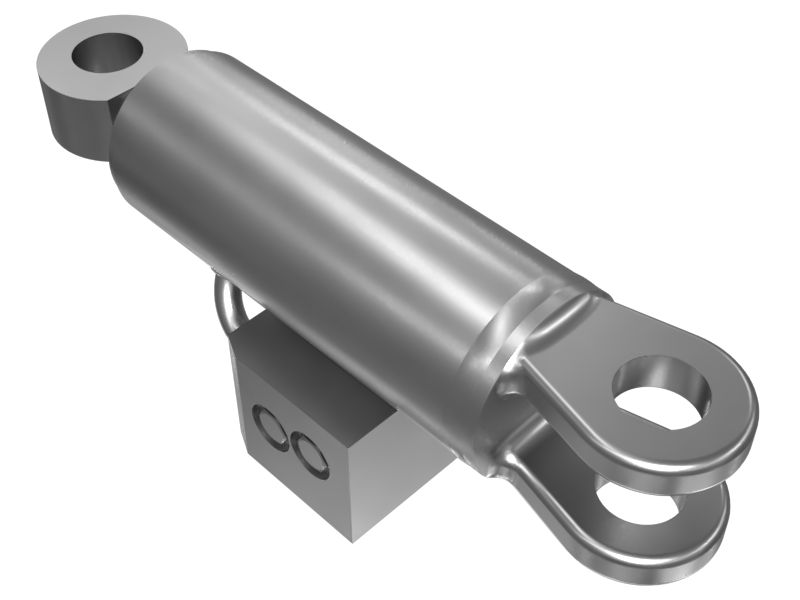

603-9385: Coupler Hydraulic Cylinder

Cat® Cylinders are designed for your rugged work environment, are double acting cylinders in which the working fluid acts alternatively on both sides of the piston. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications. Cat® Hydraulic Cylinders, a vital component designed to provide robust and precise steering control for the machine. Cat® Cylinders are engineered with the utmost precision and care, serving as a cornerstone of our commitment to quality and innovation. It converts hydraulic fluid pressure into mechanical force to turn the wheels accurately and responsively. This results in improved handling and maneuverability, enhancing both safety and ease of operation for the operator.

Open Length : 326 mm (12.83 in)
Stroke Length : 80 mm (3.15 in)
Closed Length : 246 mm (9.69 in)
Port Thread Size - TPI in : 9/16 - 18 UNF - 2B ORB

Application:
Cat® Hydraulic Cylinders are used in the hydraulic coupler of Cat® Machine. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Overall Length (mm): 298.4

• Overall Length (in): 11.75

• Overall Width (mm): 114.3

• Overall Width (in): 4.5

• Overall Height (mm): 85.9

• Overall Height (in): 3.38

• Bore Diameter (mm): 50.8

• Bore Diameter (in): 2

• Rod Diameter (mm): 22.2

• Rod Diameter (in): 0.87

• Pressure Capacity (kPa): 129000

• Pressure Capacity (psi): 18709.87

• Color: Medium Gloss Black

• Material: Steel,Sealants / Adhesives Adhesive,Carbon Steel
