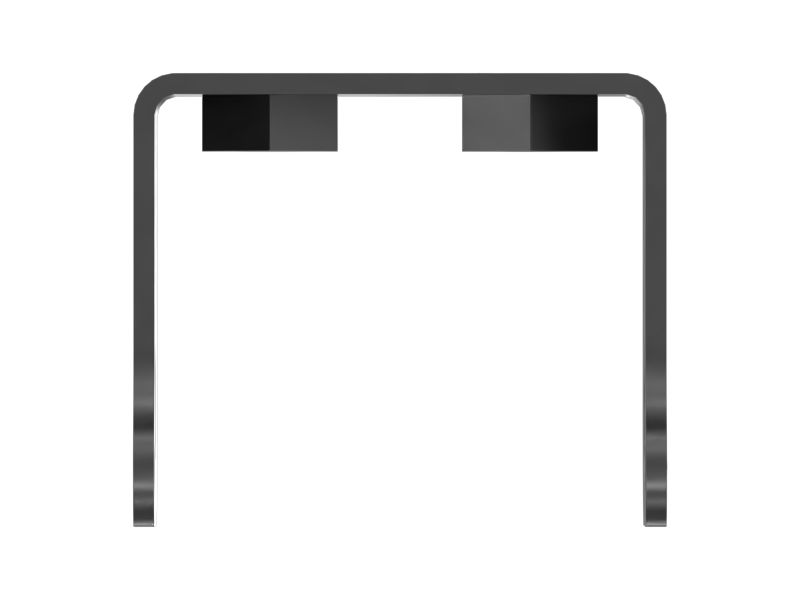

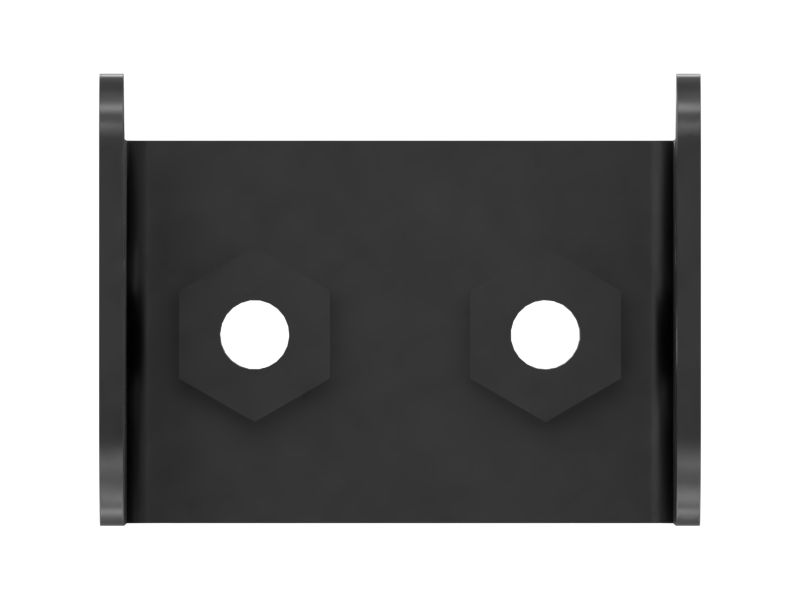

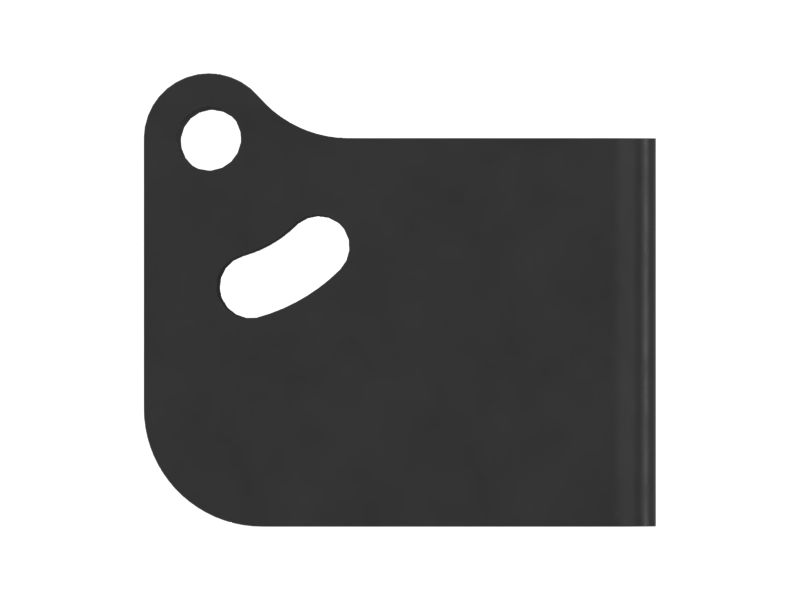

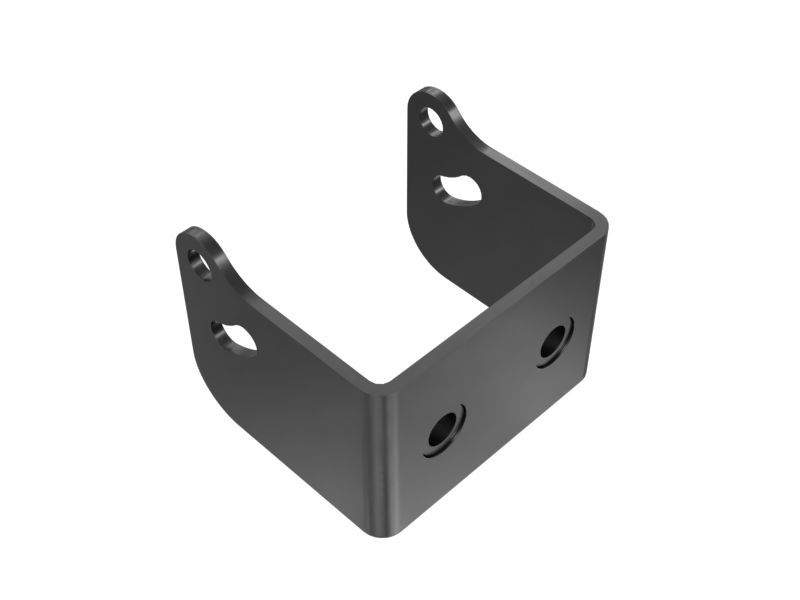

603-0226: Camera Mounting Bracket

Cat® Mounting Bracket provides mounting and support for the Camera of Cat® Machine. The components are mounted to brackets with the help of suitable fasteners. The component’s surface finish is continuous, uniform, and free from any porosity or any other defects to enhance the performance of the part. Engineered with a specific application in mind, every Cat® Bracket is designed and manufactured to exact tolerances to ensure proper alignment with existing systems on your Cat® Machine. Cat® Brackets are manufactured to precise specifications and are built for durability, reliability, productivity, less environmental impact and reuse.

Application:
Cat® Brackets are used for various mountings and its purely designed based on Cat® machines. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Overall Length (mm): 51

• Overall Length (in): 2.01

• Overall Width (mm): 38.4

• Overall Width (in): 1.51

• Overall Height (mm): 43.4

• Overall Height (in): 1.71

• Material Thickness (mm): 2

• Material Thickness (in): 0.08

• Nut Type: Weld Nut

• Thread Size (dia x pitch) (mm): M6 x 1 (2x)

• Material: Carbon Steel,Alloy Mixed
